Blackmagic Design | HyperDeck Studio HD Pro

Broadcast video recorder and player with 6G-SDI connectivity

Technical specifications

Technology : Professional video recorder and broadcast player - SD / HD / UHD media server

Recording codecs : H.264 (up to 1080p60), Apple ProRes HQ, ProRes 422, ProRes LT, ProRes Proxy, Avid DNxHD and DNxHR

Recording media : 2x 2.5" SATA SSD slots + 2 SD card slots (UHS-I / UHS-II)

Video inputs : 1x 6G-SDI and 1 HDMI 2.0

Video outputs : 2x 6G-SDI, 1x 6G-SDI Loop Out, 1 SDI Monitor Out and 1 HDMI 2.0

Audio : 16 embedded SDI audio channels, 8 embedded HDMI audio channels and 6.35 mm headphone output

Synchronisation : Genlock In/Loop (Tri-Sync or Black Burst), LTC Timecode In/Out (XLR) with internal timecode generator

Video sampling / Colour precision : 10-bit 4:2:2 YUV

Colour space : REC 601, REC 709 and REC 2020 - Supports 33-point 3D LUTs on the SDI monitor output

Control : Gigabit Ethernet, RS-422 In/Out, HyperDeck Ethernet Protocol and USB-C (configuration and software updates)

Display : 2.2-inch colour LCD with integrated mono speaker

Functions : Loop playback, continuous recording, hot media swapping, Jog, Shuttle, Scroll and USB webcam output

Power consumption : 100 W (max.)

Dimensions W x H x D : 482.0 x 44.2 x 236.4 mm

Net weight : 2.11 kg

Supported video formats : SD, HD, 2K DCI, Ultra HD and 4K DCI - Up to 2160p30 / DCI 4Kp30

Complementary products

Professional 4K UHD PTZ camera with 60p, NDI® High Bandwidth and SRT

Modular 4K60 presentation processor - Event Master platform

4K presentation switcher for meeting rooms and corporate events

Alternatives

8-Input HDMI Live Production Switcher with Streaming and ISO Recording

Frequently asked questions

The HyperDeck Studio HD Pro is a professional broadcast recorder and player designed for live productions and audiovisual events. It records and plays back video directly from SD cards, 2.5" SSDs or USB-C storage devices, while supporting professional codecs including Apple ProRes, Avid DNxHD/DNxHR and H.264. Its reliability, ease of use and compatibility with SDI infrastructures make it an ideal solution for conferences, concerts, TV studios, streaming productions and multi-camera recordings.

The HyperDeck Studio HD Pro can be used as a programme recorder, media player, backup recorder or playback server for countdowns, holding slides, motion graphics and branded content. Its tape-deck-inspired interface combined with modern file-based recording integrates seamlessly into professional broadcast and live event workflows.

The HyperDeck Studio HD Pro supports SD, HD, 2K DCI, Ultra HD and 4K DCI formats up to 2160p30. It records in Apple ProRes, Avid DNxHD, DNxHR and 10-bit 4:2:2 H.264, allowing users to balance image quality and file size according to production requirements.

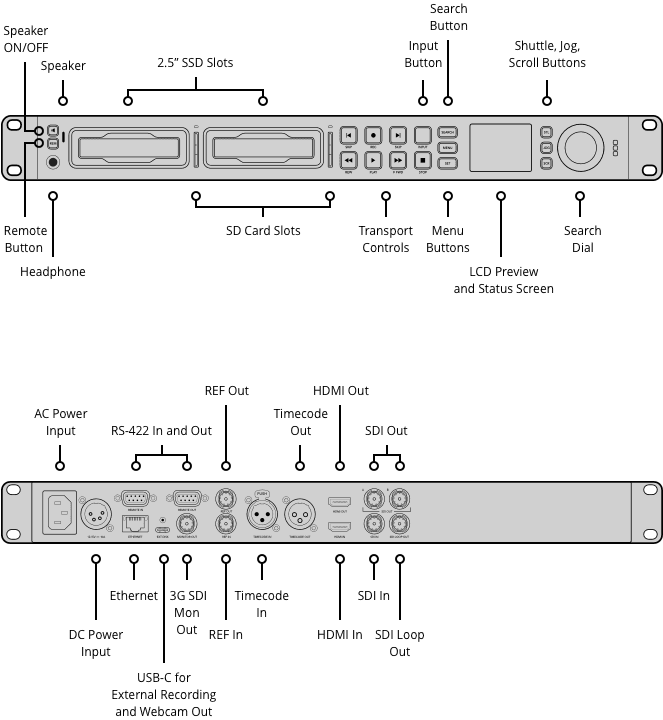

Combining the familiar workflow of traditional broadcast VTRs with the advantages of digital recording, the HyperDeck Studio HD Pro features dual SSD bays, dual SD card slots, USB-C external recording, a precision-machined jog/shuttle wheel, Genlock and Timecode connections, plus Ethernet control. It provides a complete solution for both professional recording and playback applications.
