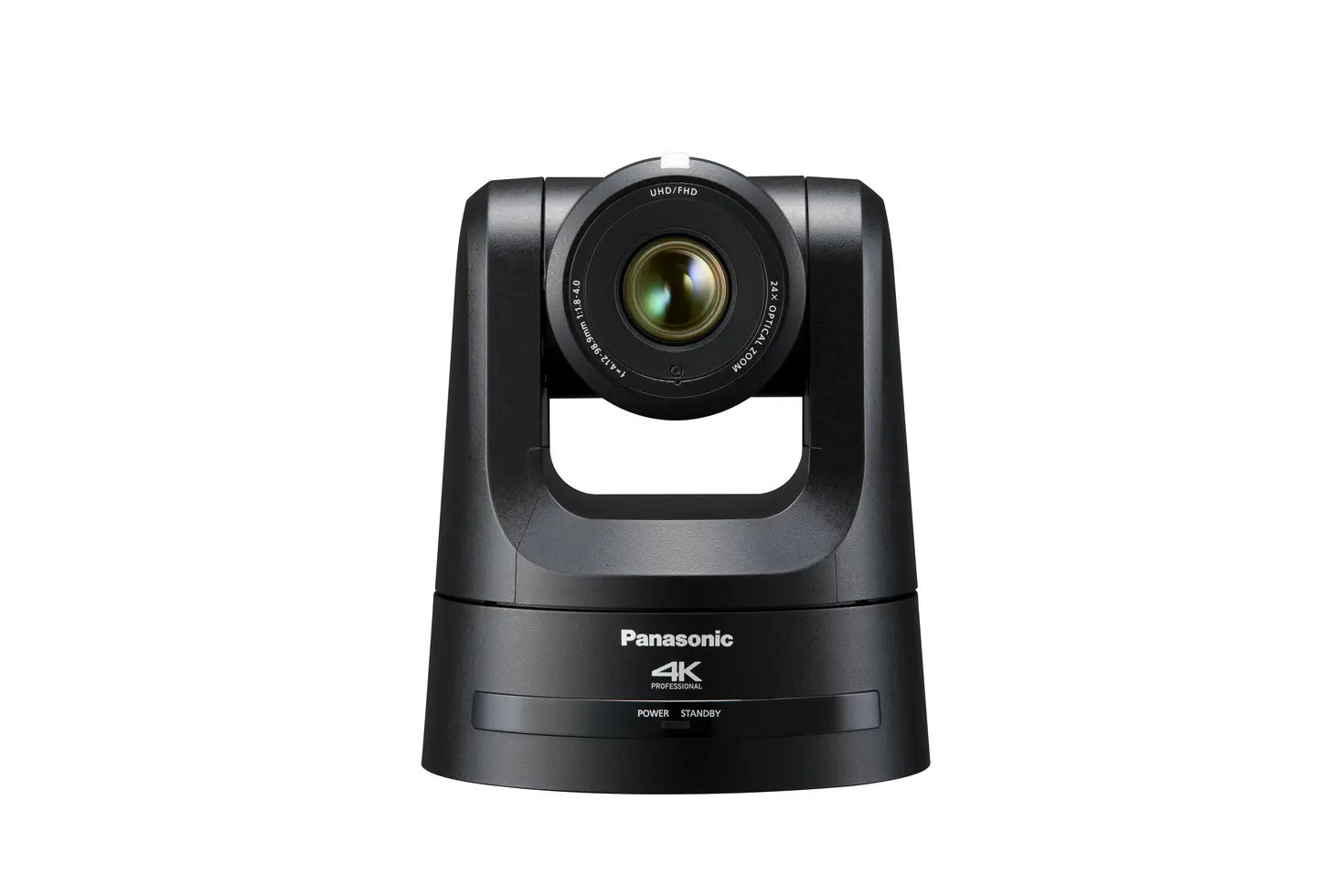

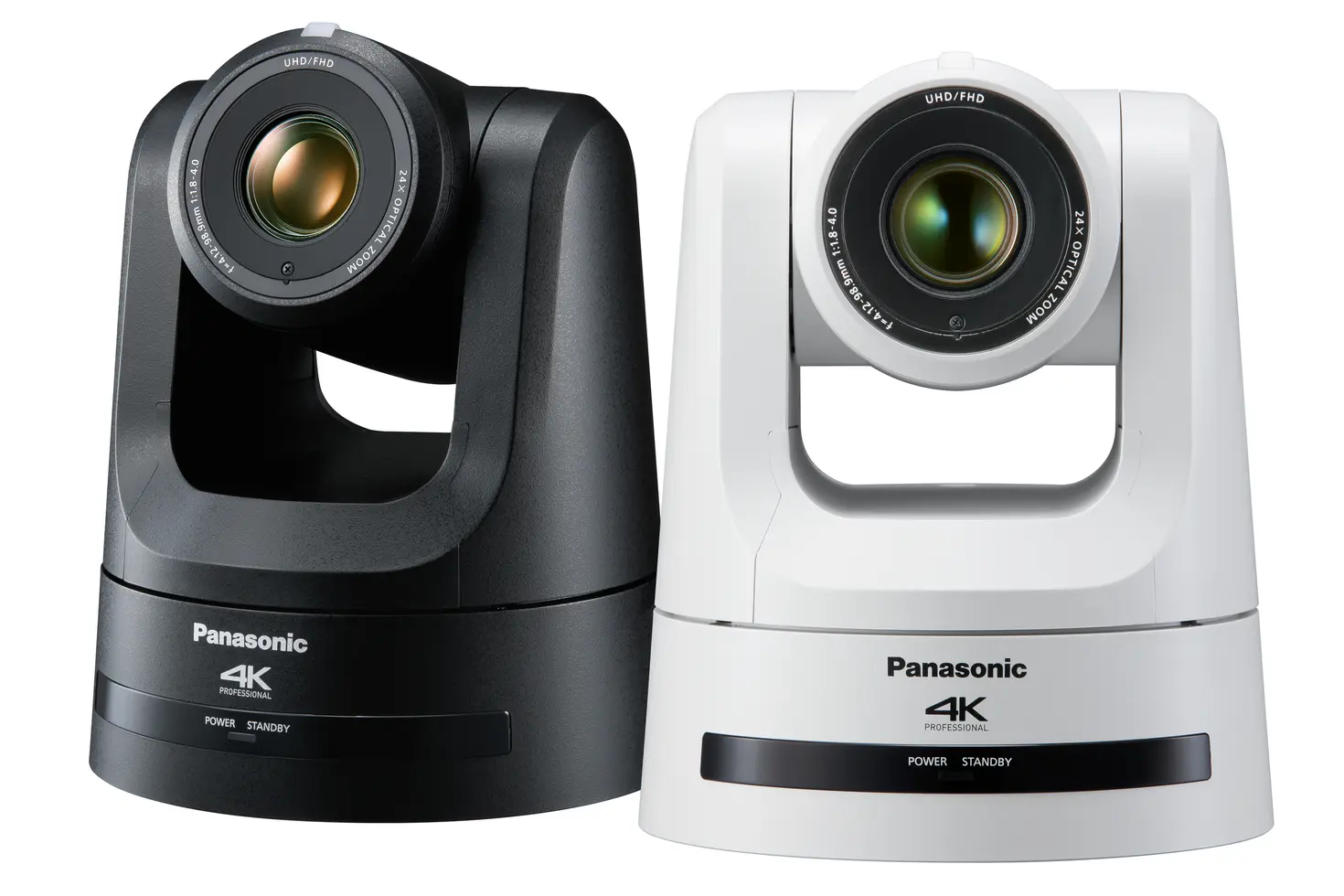

Panasonic | AW-UE100

Professional 4K UHD PTZ camera with 60p, NDI® High Bandwidth and SRT

Technical specifications

Technology : Professional 4K UHD robotic PTZ camera

Image sensor : 1/2.5-inch 4K MOS sensor with 8.49 effective megapixels

Lens : 24x motorized optical zoom | 4.12–98.9 mm | 35 mm equivalent: 25-600 mm | F1.8-F4.0

Zoom : 24x optical - i.Zoom 28x (UHD) / 36x (FHD) / 1.4x and 2x digital zoom

Viewing angle : Horizontal 74.1° to 3.3° / Vertical 46.0° to 1.9° / Diagonal 81.8° to 3.8°

Sensitivity : F4 at 2,000 lx (Normal mode) • F5.6 at 2,000 lx (High Sensitivity mode) - Minimum illumination: 3 lx

Video formats : UHD 3840 x 2160 up to 60p/50p; Full HD 1080p / 1080i; HD 720p

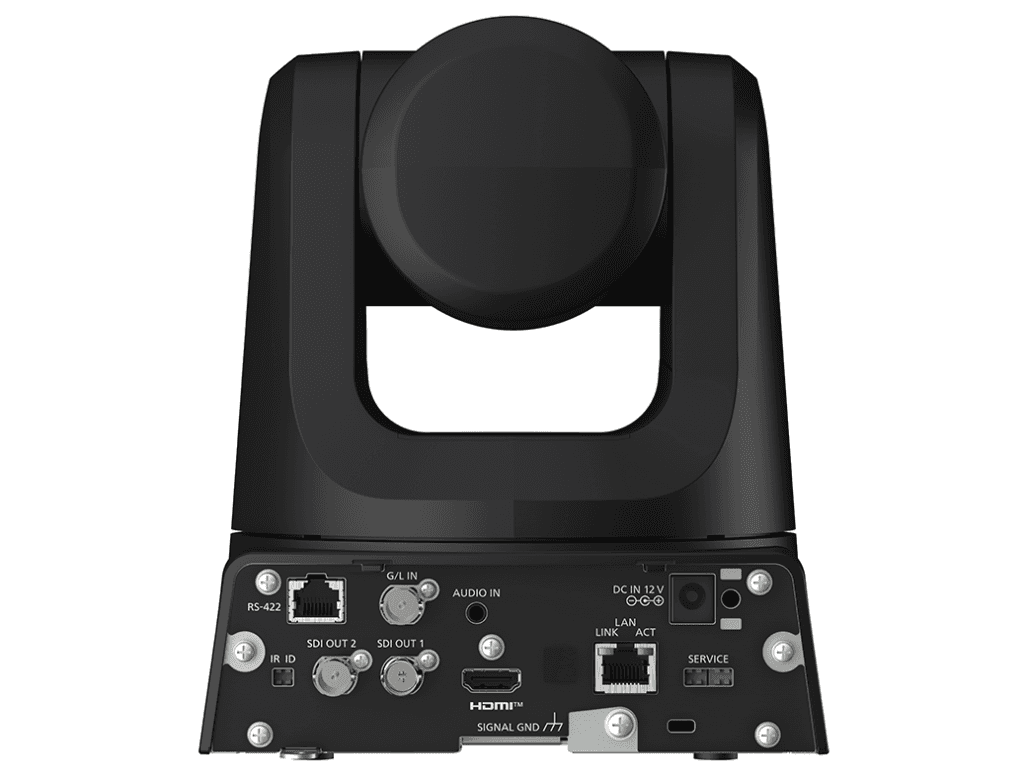

Video outputs : 1x 12G-SDI + 1x 3G-SDI + 1 HDMI 2.0 + IP streaming

IP protocols : NDI® High Bandwidth, NDI®|HX, SRT, RTMP/RTMPS, H.264, H.265, JPEG (MJPEG) and FreeD

Audio : 3.5 mm Mic/Line input and Embedded audio over SDI, HDMI and IP

Pan / Tilt range : Pan ±175° / Tilt -30° to +210° - Pan / Tilt speed: 0.08°/s to 60°/s (up to 180°/s in Fast mode)

Synchronization : Genlock (Black Burst / Tri-level Sync)

Control : IP and RS-422 - Compatible with Panasonic AW-RP150GJ controllers

Power consumption : 3.0 A (DC) / 1.0 A (PoE++) / 12 V DC

Dimensions W x H x D : 195.2 x 204.6 x 170.6 mm

Net weight : 2.2 kg

Complementary products

Compact Professional PTZ Camera Controller

Professional PTZ camera controller with touchscreen interface

Professional HD/SD Live Video Switcher with Advanced Expansion Capabilities (1 M/E)

Compact HDMI video switcher with integrated streaming and recording

Alternatives

Frequently asked questions

The Panasonic AW-UE100 is a 4K PTZ flagship camera designed for broadcast, live events, conferences, houses of worship and television production. Combining a high-quality 4K image sensor, a powerful 24x optical zoom and professional video outputs including 12G-SDI, HDMI and IP, it delivers exceptional image quality while significantly reducing production crew requirements.

The AW-UE100 is one of the first professional PTZ cameras to combine native 4K 50/60p, 12G-SDI, NDI® High Bandwidth, NDI®|HX, SRT and FreeD support within a single platform. Its high-speed, ultra-smooth Pan/Tilt mechanism enables precise camera movements while providing seamless integration into modern IP and broadcast workflows.

The AW-UE100 is ideally suited to conferences, congresses, television studios, live streaming, sports productions, lecture theatres, worship facilities, hybrid events and multi-camera broadcast productions. Its silent operation, advanced IP connectivity and broadcast-grade image quality make it an excellent choice wherever discreet, remotely operated cameras are required.

The camera can be controlled via IP or RS-422 and integrates seamlessly with Panasonic controllers including the AW-RP150GJ, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ and AK-HRP250GJ. Support for NDI®, SRT, RTMP/RTMPS, FreeD and 12G-SDI enables straightforward integration into broadcast control rooms, live production systems, virtual production environments and advanced audiovisual infrastructures.
