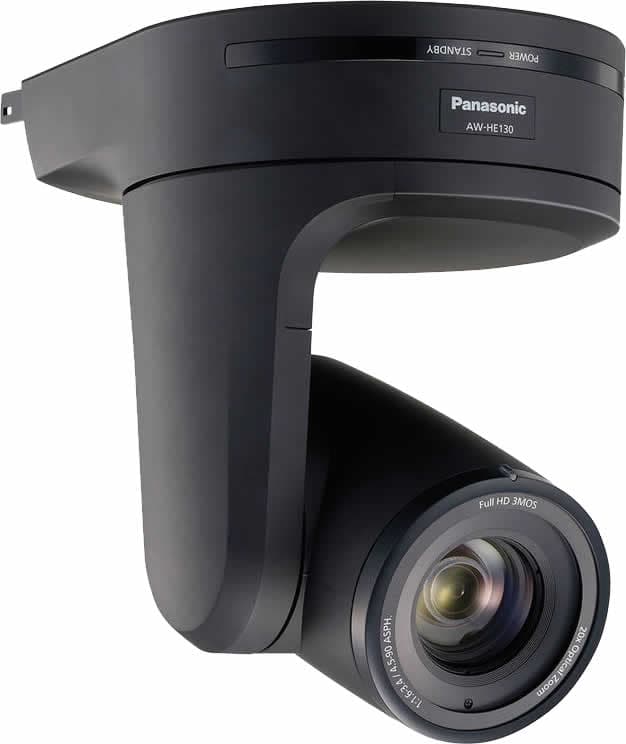

Panasonic | AW-HE130

Broadcast Full HD PTZ camera

Technical specifications

Integrated ND filters : Clear, 1/4, 1/16 and 1/64

Technology : Full HD robotic PTZ camera

Image sensor : Three high-sensitivity 1/2.86-inch MOS sensors with low-noise 3MOS technology

Lens : 20x optical zoom | 4.5 - 90.0 mm | 35 mm equivalent: 32.13 - 642.5 mm | Aperture: F1.6 - 3.4

Zoom / Field of view : 20x optical zoom with 1.4x Digital Extender | Horizontal angle: 65.1° (Wide) to 3.5° (Tele)

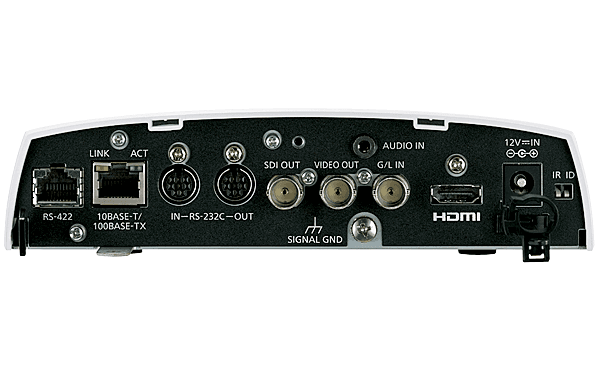

Video outputs : 1x 3G-SDI, 1 Composite Video Out (NTSC/PAL), 1 HDMI and 1 H.264 IP streaming via Ethernet

Resolution : Up to 1920 x 1080/60p (59.94p/50p, 59.94i/50i, 29.97p/25p and 23.98p)

IP streaming : Up to four simultaneous H.264 streams with configurable bit rates up to 25 Mb/s

Pan/Tilt : Pan ±175° / Tilt -30° to +210° - Maximum speed: 60°/s - 100 preset positions

Synchronisation : Genlock (Black Burst / Tri-level Sync)

Control : IP and RS-422 - Compatible with AW-RP50, AW-RP120, AW-RP150GJ and AK-HRP200G controllers

Image processing : Optical Image Stabiliser (O.I.S.), Night Mode, Dynamic Range Stretch (DRS), Hybrid Digital Noise Reduction and 12-axis colour correction

Audio : Stereo Mic/Line input with embedded IP audio

Power consumption : 2 V DC – 1.8 A (DC input) / 0.6 A (PoE+)

Dimensions W x H x D : 180 x 228 x 235 mm

Net weight : 2.9 kg

Complementary products

Compact Professional PTZ Camera Controller

Professional PTZ camera controller with touchscreen interface

Professional HD/SD Live Video Switcher with Advanced Expansion Capabilities (1 M/E)

Compact HDMI video switcher with integrated streaming and recording

Alternatives

Professional 4K UHD PTZ camera with 60p, NDI® High Bandwidth and SRT

Frequently asked questions

The Panasonic AW-HE130 is a Full HD PTZ camera designed for broadcast productions, live events, conferences and television studios. Featuring three 1/2.86-inch MOS sensors, a 20x optical zoom, 3G-SDI output, H.264 IP streaming and PoE+ support, it delivers outstanding image quality while simplifying multi-camera deployments. Its exceptional sensitivity ensures clean, detailed images even in challenging lighting conditions.

The AW-HE130 benefits from Panasonic's professional 3MOS broadcast imaging system, delivering superior colour reproduction and low-noise performance. It also features Optical Image Stabilisation (O.I.S.), Night Mode, a 1.4x Digital Extender, HD-IP streaming and an exceptionally smooth, quiet Pan/Tilt mechanism (NC35 or lower), making it particularly well suited to live productions and television environments.

The AW-HE130 is ideal for conferences, conventions, live performances, houses of worship, universities, streaming applications, television studios and institutional productions. Its 3G-SDI output, H.264 streaming with up to four simultaneous IP streams, and compatibility with Panasonic remote camera controllers allow seamless integration into professional fixed or mobile video control rooms.

The camera supports the Panasonic AW-RP50, AW-RP120 and AW-RP150GJ remote controllers, as well as IP and RS-422 control protocols. It offers up to 100 preset positions and enables remote adjustment of key imaging parameters including iris, gain, white balance and advanced colour correction.
