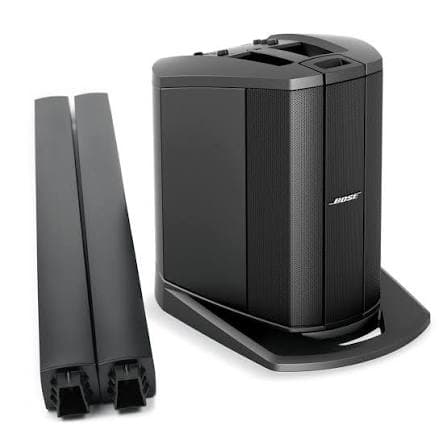

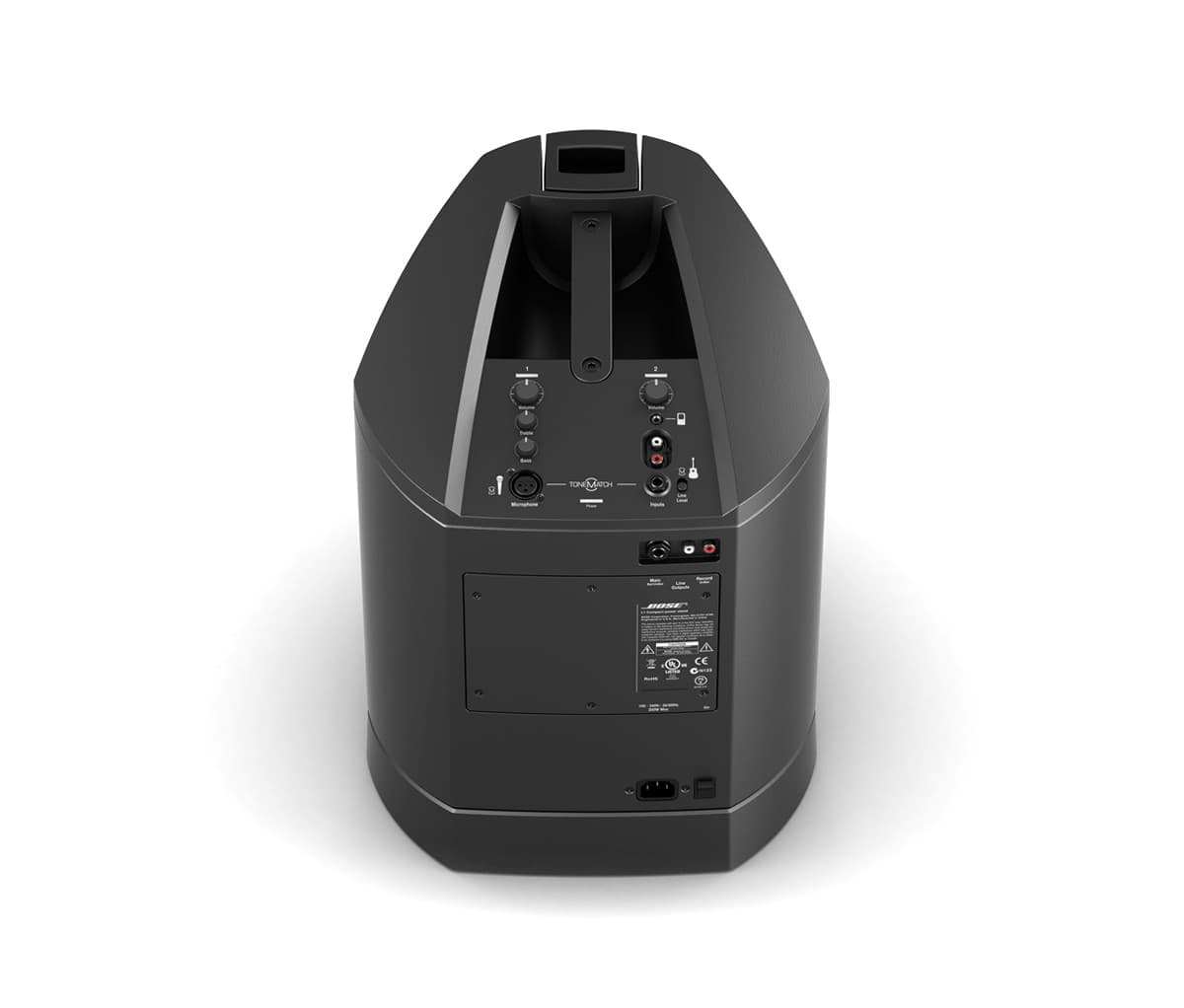

Bose | L1 Compact

Powered column PA system with integrated mixer

Technical specifications

Technology : Two-way powered column loudspeaker system

Loudspeakers : Six 2-inch drivers (column) + one integrated 8-inch bass driver

System power : 130 W

Frequency response (-3 dB) : 65 Hz - 14000 Hz

Frequency response (-10 dB) : 50 Hz - 16000 Hz

Maximum sound pressure level : 106 dB SPL continuous / 112 dB SPL peak

Nominal coverage : 180° horizontal x 40° vertical

Crossover frequency : 400 Hz (4th-order Butterworth)

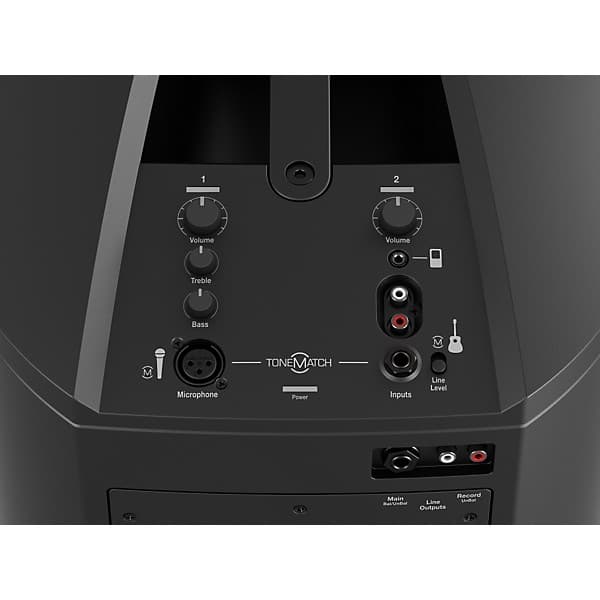

Integrated 2-channel mixer : Independent volume controls with integrated ToneMatch® equalisation

Inputs : 1 XLR microphone input + 1x 3.5 mm TRS mini-jack or 1x 6.35 mm TRS jack or 2 RCA line inputs

Line outputs : 1x 6.35 mm TRS and 2 RCA

Maximum power consumption : 200 W

Dimensions W x H x D (expanded) : 339 x 1995 x 426 mm

Dimensions L x H x P (compact configuration) : 339 x 418 x 426 mm

Net weight (expanded) : 11.2 kg

Net weight (compact configuration) : 13.3 kg

Complementary products

Compact digital mixing console with 8 mono channels, 2 stereo channels and 6 outputs

22-input / 12-output digital mixing console

Compact digital mixing console with 40 channels and 25 mix buses

40-channel digital mixing console / 25 mix buses

Alternatives

Compact 2-Way Coaxial Point Source Loudspeaker

High-performance two-way coaxial loudspeaker with wide dispersion

Frequently asked questions

The Bose L1 Compact is a powered column PA system offering a wide 180° horizontal sound coverage. Thanks to Bose Spatial Dispersion™ technology, it delivers consistent audio throughout the audience without requiring multiple loudspeakers. It is ideal for conferences, speeches, ceremonies, cocktail receptions, solo performers and small events for audiences of up to around 100 people.

Unlike a conventional speaker on a stand, the Bose L1 Compact provides much more even sound distribution across the entire venue. Listeners positioned to the sides experience nearly the same sound level as those directly in front, reducing coverage inconsistencies and lowering the risk of feedback when the system is placed behind the presenter or performer.

Yes. The Bose L1 Compact features a built-in two-channel mixer, allowing direct connection of a dynamic microphone, acoustic guitar, keyboard, computer or audio playback device. Integrated ToneMatch® processing automatically optimises the sound of microphones and acoustic guitars without requiring external equipment.

The Bose L1 Compact is ideal for conferences, ceremonies, cocktail receptions, speeches, promotional events, corporate presentations, solo musicians, acoustic duos and other small-scale performances where fast setup, compact size and consistent sound coverage are essential.
