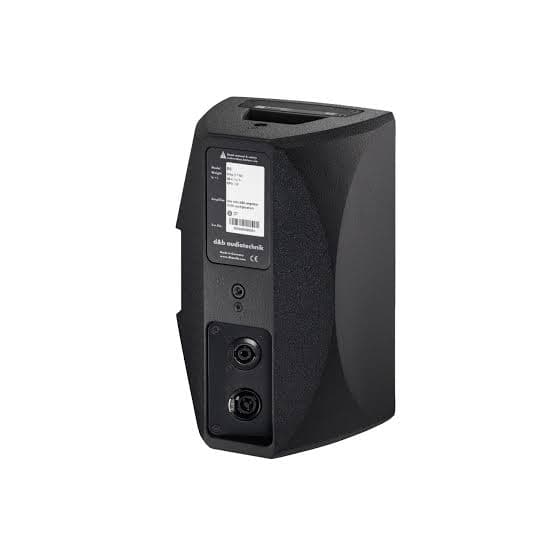

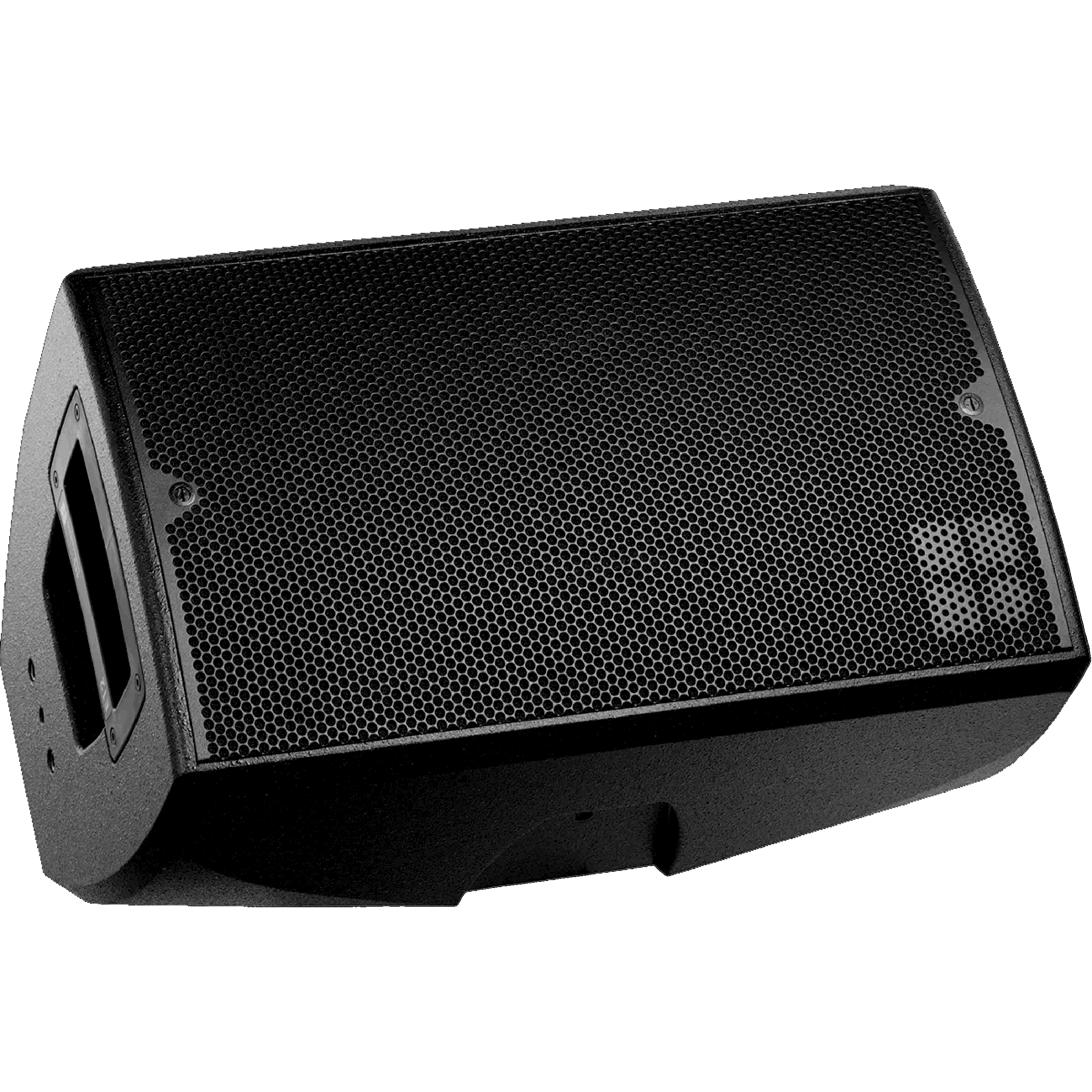

Compact 2-Way Coaxial Point Source Loudspeaker

d&b audiotechnik | E6

Compact 2-Way Coaxial Point Source Loudspeaker

Technical specifications

Technology : Passive 2-way bass-reflex loudspeaker
Configuration : 1x 6.5" neodymium LF driver + 1x 1" compression driver with 1.75" voice coil and rotatable constant-directivity horn
Passive crossover
Frequency response (-5 dB) : 85 Hz – 20000 Hz / 120 Hz - 20000 Hz (CUT mode)
Maximum SPL (1 m) : 123 dB (with D40/D80/D90/40D)
Power handling : 150 W RMS / 800 W peak (10 ms)
Nominal dispersion : 100° (H) × 55° (V)
Nominal impedance : 20 Ω
Connectors : 2 NLT4 F/M - optional NL4
Dimensions W x H x D : 188 x 300 x 175 mm
Net weight : 5.0 kg






Complementary products

4-channel digital power amplifier with integrated DSPCompact bass-reflex subwoofer

Alternatives

Compact versatile 2-way loudspeakerHigh-performance two-way coaxial loudspeaker with wide dispersionConvertible 2-way loudspeaker for point source or line array applicationsHigh-Performance 2-Way Point Source Loudspeaker - 75° × 40°

Frequently asked questions

The d&b E6 is a compact high-performance loudspeaker delivering outstanding sound quality despite its remarkably small footprint. Thanks to its rotatable constant-directivity horn and extended frequency response, it is ideally suited for conferences, corporate events, theatres, houses of worship and any application requiring discreet yet premium sound reinforcement.

The E6 is significantly more compact than the Y-Series models and is designed for close-range applications, smaller venues and discreet installations. While a Y7P or Y10P can serve as the main PA for medium-sized audiences, the E6 excels as a front-fill, delay speaker, conference system or high-quality background music solution.

Yes. Thanks to its frequency response extending down to 85 Hz (-5 dB), the E6 performs exceptionally well for speech reinforcement, conferences and light musical applications without requiring a subwoofer. For full-range music reproduction, it is commonly paired with d&b E12X-SUB, E15X-SUB, B4-SUB or B6-SUB subwoofers.

The E6 is particularly well suited to conferences, meeting rooms, theatres, museums, houses of worship, corporate events, permanent AV installations and distributed sound systems. Its compact size and premium audio performance make it a benchmark loudspeaker for discreet professional installations.
