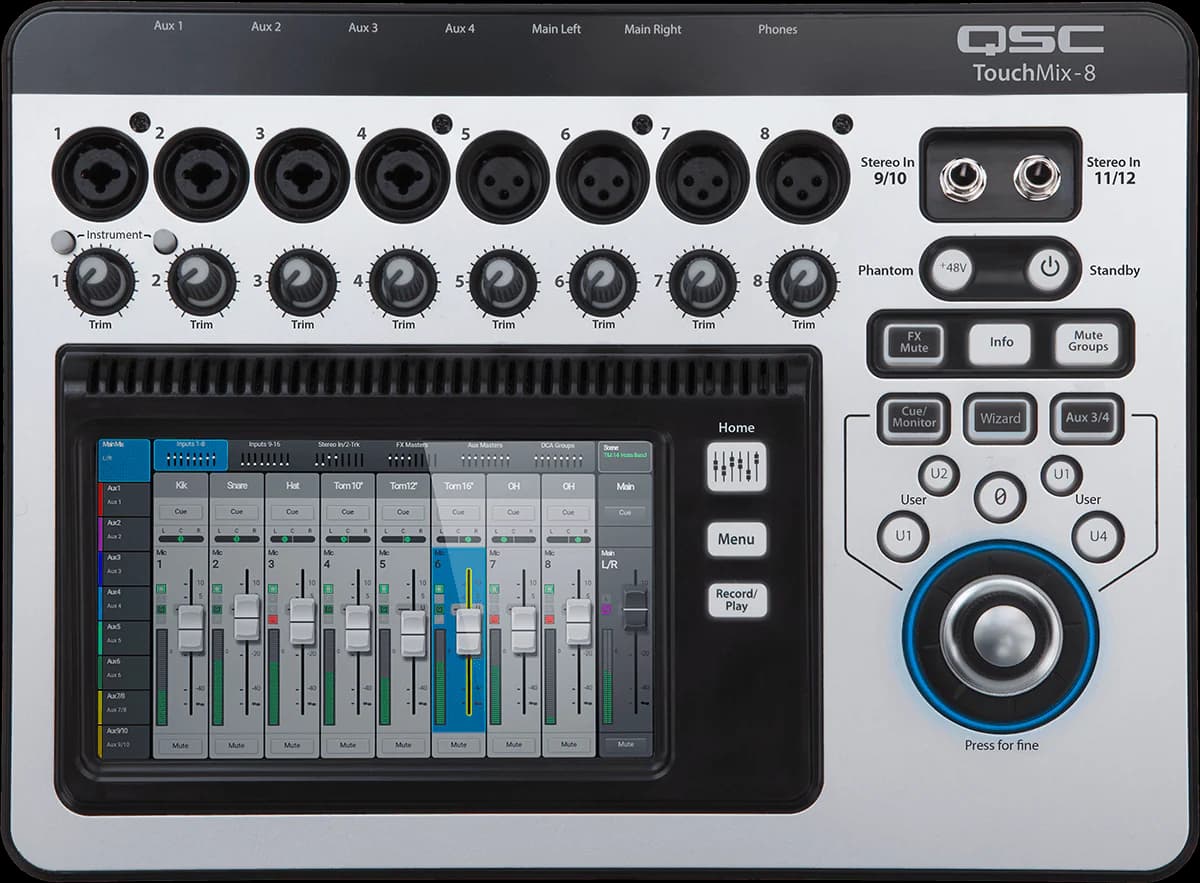

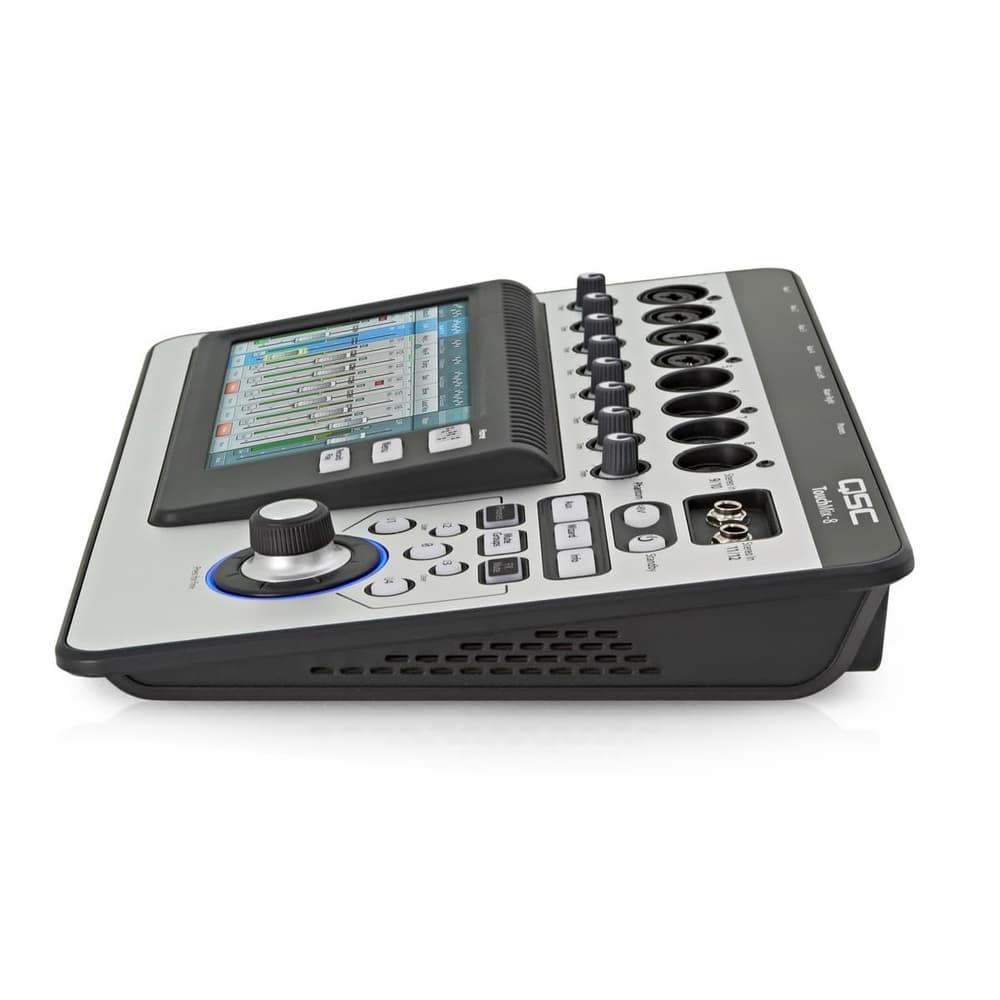

QSC | TouchMix-8

Compact digital mixing console with 8 mono channels, 2 stereo channels and 6 outputs

Technical specifications

Technology : Compact digital mixing console

Audio processing : 24-bit A/D and D/A converters with 32-bit floating-point processing

DCA groups : 8 (with mute control)

Mute groups : 8

Real Time Analyser (RTA) : 1 assignable 1/3-octave analyser

Audio inputs : 8 XLR/TRS combo Mic/Line inputs, 2 stereo 6.35 mm TRS line inputs, 2-channel USB input

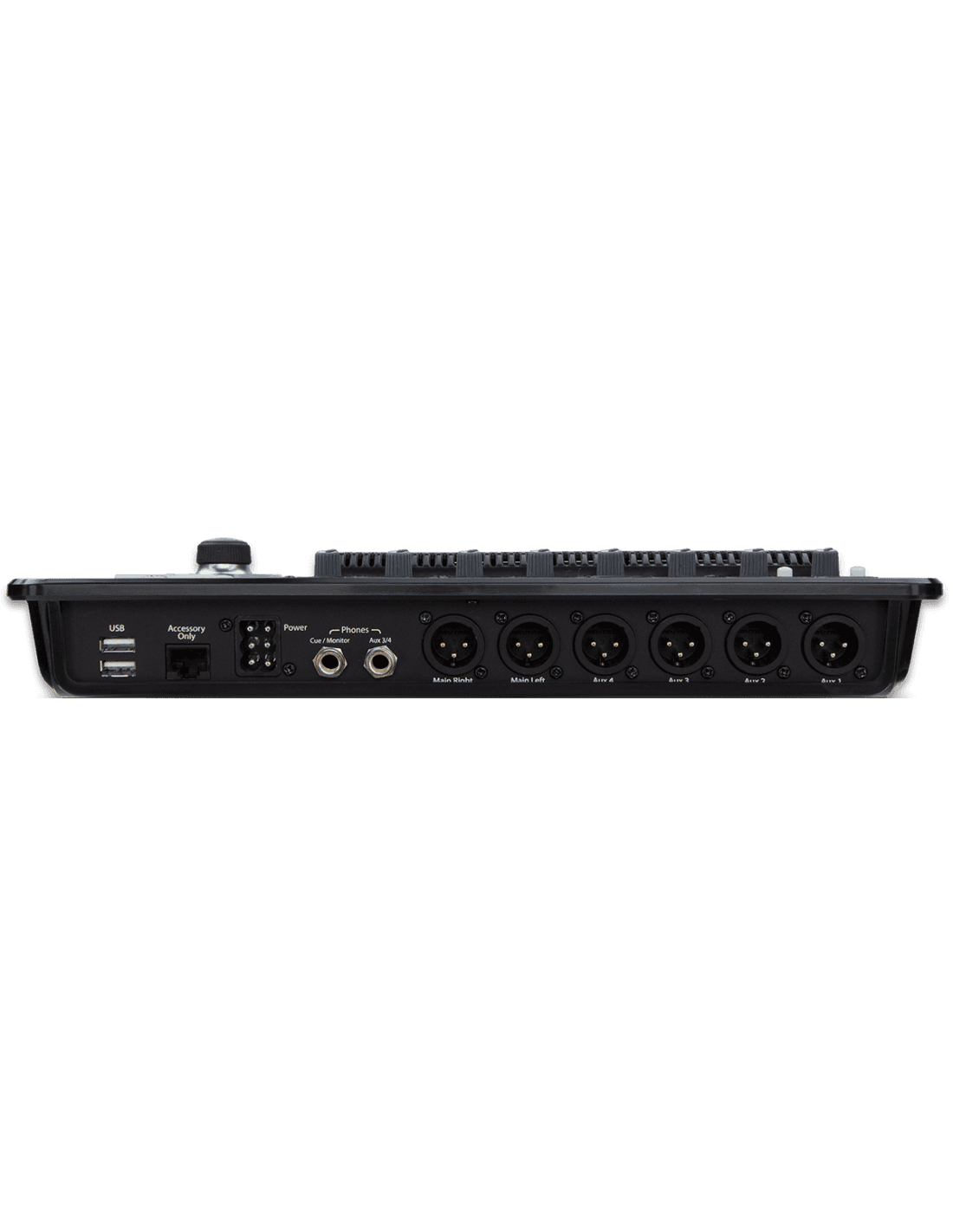

Audio outputs : 2 XLR Main outputs, 4 XLR Aux outputs, 1x 6.35 mm TRS Phones/Cue output, 1 Aux 3/4 line output

Audio processing : 4-band parametric EQ on all input channels, gate, compressor, high-pass and low-pass filters, 28-band graphic EQ on outputs

Internal effects : delay, chorus and pitch correction

Recording : Multitrack USB recording (up to 14 tracks) and direct playback/recording without a computer

Display : Integrated 7-inch TFT colour touchscreen

Power consumption : 42 W

Dimensions W x H x D : 333 x 56 x 245 mm

Net weight : 4.9 kg

Complementary products

Powered column PA system with integrated mixer

Alternatives

22-input / 12-output digital mixing console

Compact digital mixing console with 40 channels and 25 mix buses

40-channel digital mixing console / 25 mix buses

40-channel digital mixing console / 32 XLR microphone inputs

Frequently asked questions

The QSC TouchMix-8 is a compact digital mixing console designed for mobile productions, conferences, acoustic performances and small fixed installations. Featuring an integrated colour touchscreen, intelligent setup wizards and comprehensive onboard processing, it provides simple operation while managing up to eight microphone/line inputs. It is an excellent solution when portability and fast deployment are priorities.

The TouchMix-8 offers complete digital processing, including parametric EQ, compressors, gates, filters and professional built-in effects such as reverb, delay and chorus. It also allows complete scene recall and remote operation via Wi-Fi using a dedicated mobile app, providing significantly greater flexibility than a conventional analogue console.

Thanks to its compact footprint, low power consumption and integrated setup assistants—including anti-feedback processing, gain wizards and a real-time spectrum analyser—the TouchMix-8 is ideal for meeting rooms, houses of worship, multipurpose venues, small stages and permanent AV installations. It also supports direct multitrack USB recording without requiring a computer.

Yes, within the scope of its intended applications. The TouchMix-8 performs exceptionally well for acoustic performances, speech reinforcement and small live productions. For larger and more complex productions, higher-end digital consoles generally offer greater processing capacity, workflow efficiency and control surface ergonomics.
