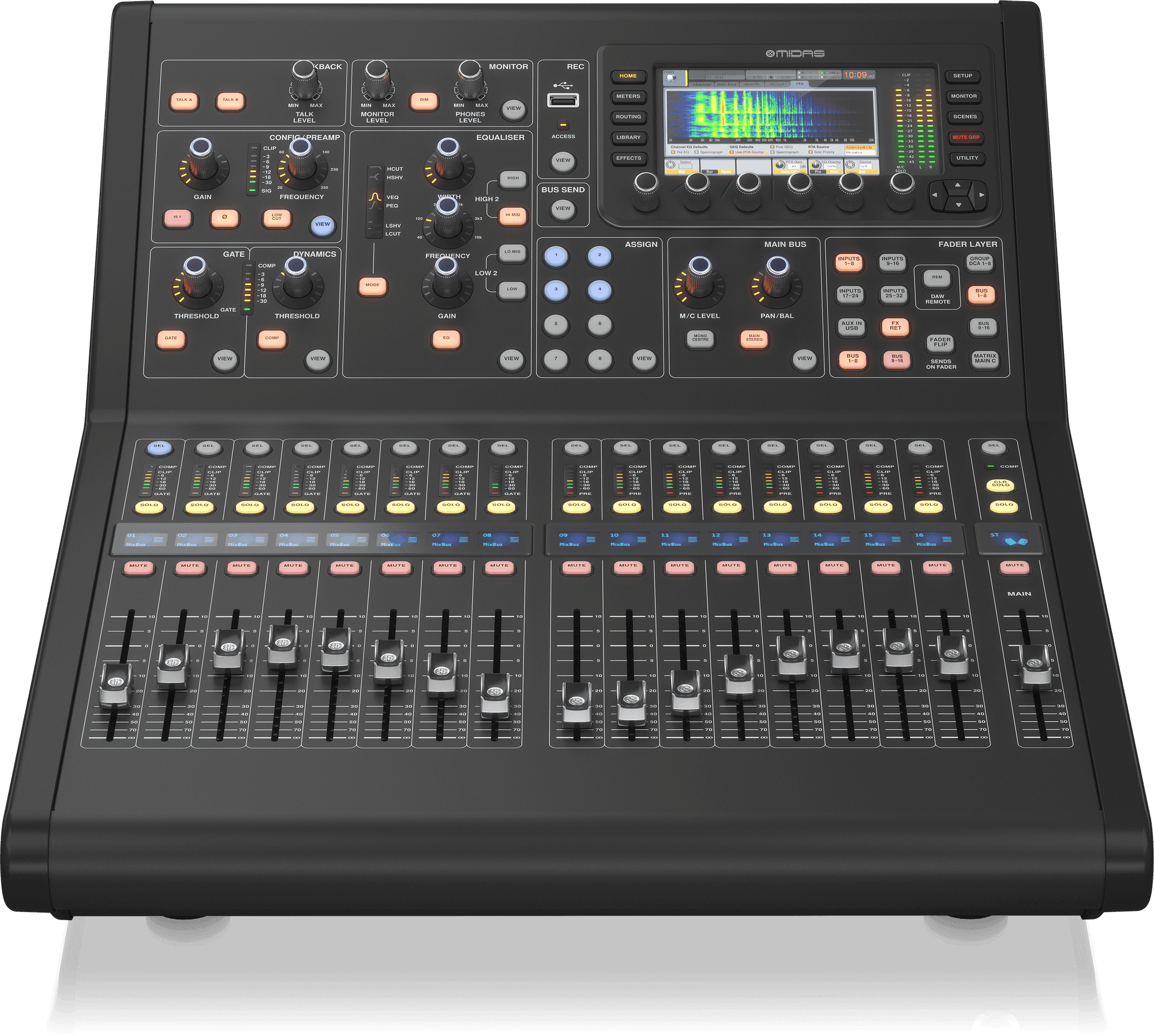

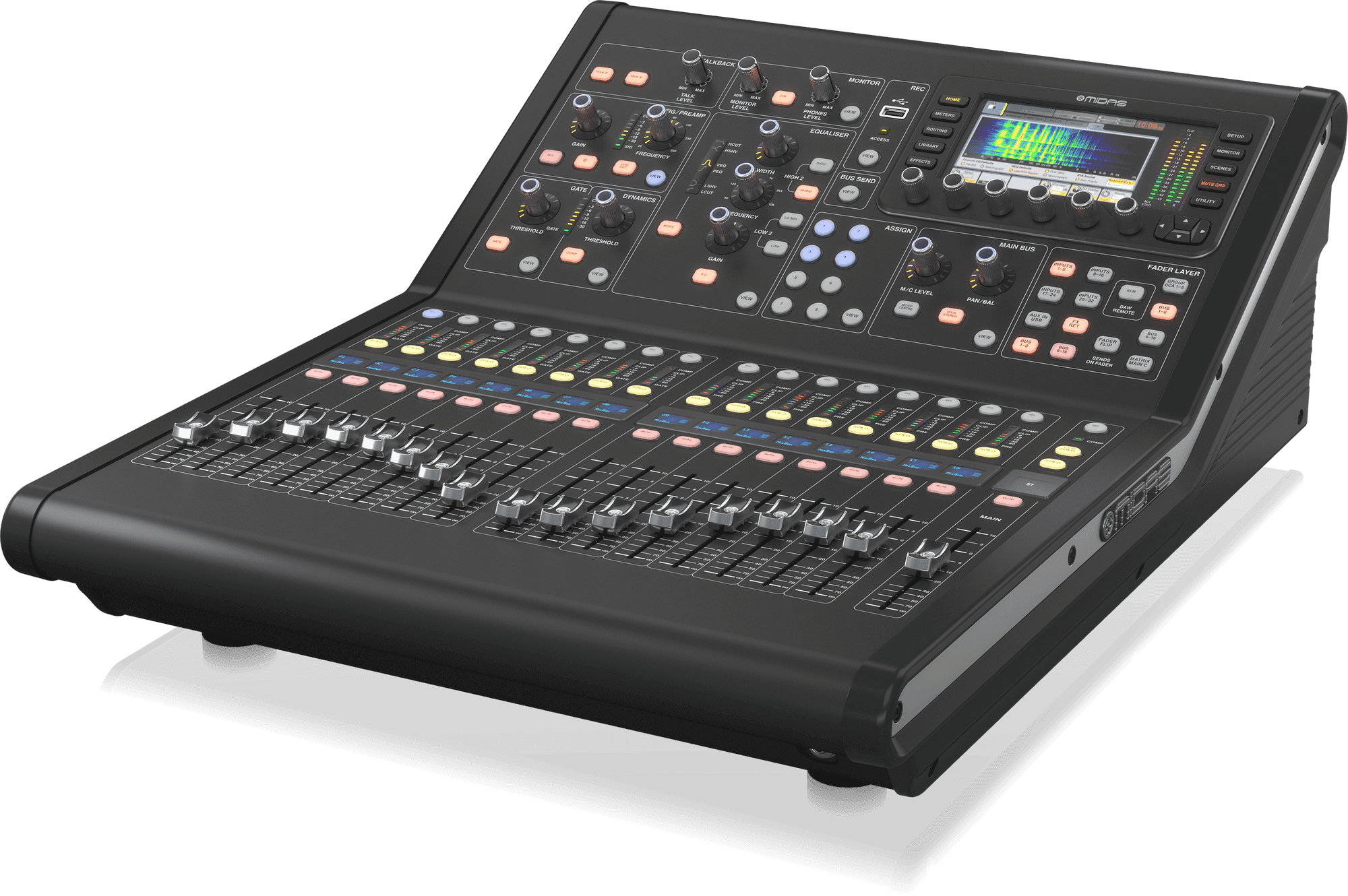

Midas | M32R LIVE

Compact digital mixing console with 40 channels and 25 mix buses

Technical specifications

Technology : Digital mixing console

Latency: : < 0.8 ms

Mixing channels : 40

Mix buses : 25

Matrices : 6

DCA groups / mute groups : 6 / 8

Motorised faders : 16 + 1 master

Assignable faders : 40

Effects racks : 8 with dedicated stereo returns

Display : 800 x 480 TFT LCD screen

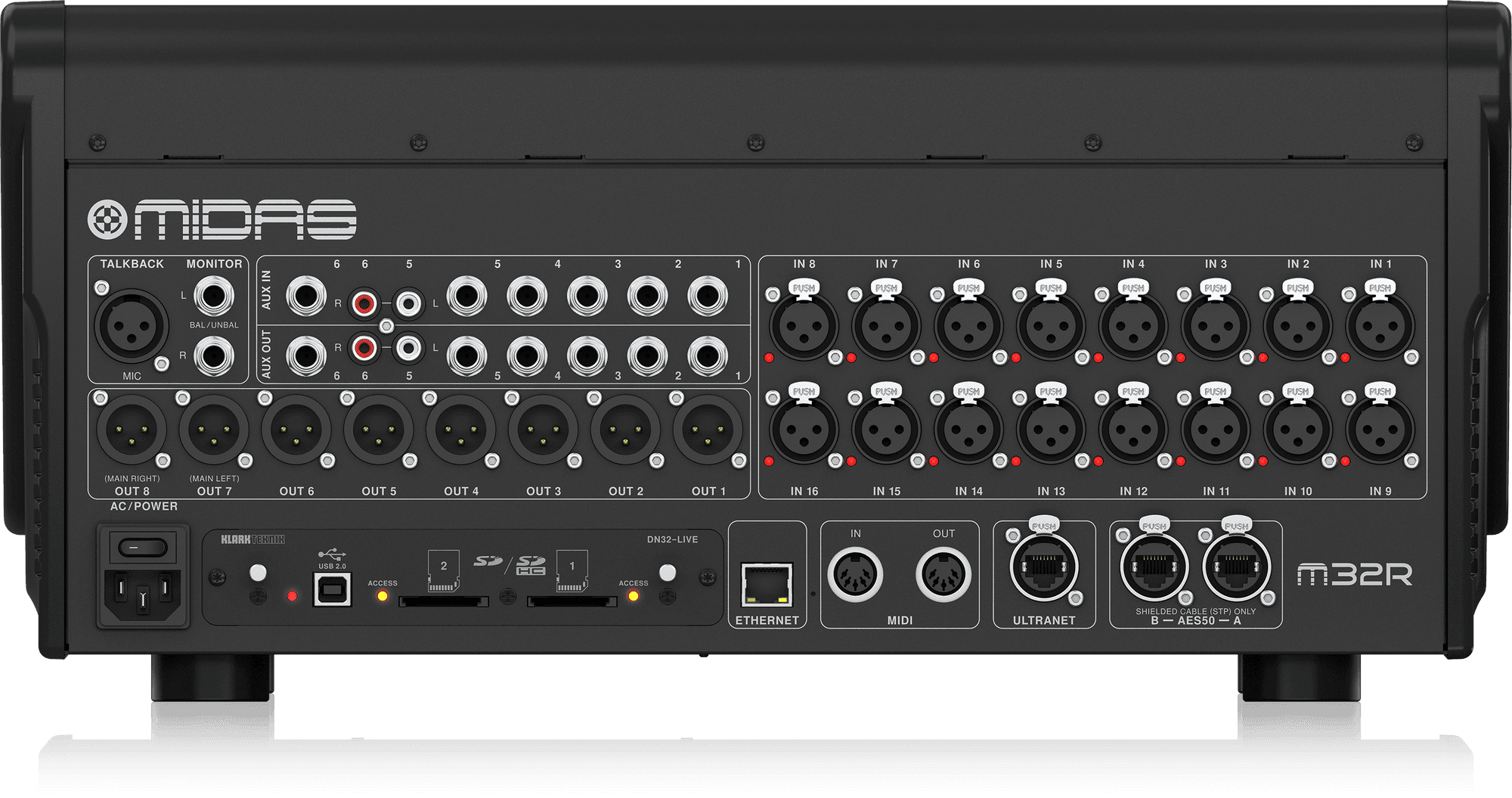

Local inputs : 16 XLR Mic/Line, 6x 6.35 mm TRS AUX, 2 RCA

Local outputs : 8 XLR Line, 6x 6.35 mm TRS AUX, 2 RCA

Dimensions W x H x D : 478 x 208 x 617 mm

Net weight (without accessories) : 14.3 kg

Complementary products

Alternatives

40-channel digital mixing console / 25 mix buses

40-channel digital mixing console / 32 XLR microphone inputs

Compact digital mixing console with Dante for Live Sound and Corporate Events

Frequently asked questions

The Midas M32R LIVE is a compact digital mixing console offering up to 40 processing channels, 25 mix buses and Midas-designed microphone preamps that deliver outstanding audio quality. It is an excellent choice for live sound, corporate events, theatres and touring productions.

The M32R LIVE features an integrated multitrack recording card that enables simultaneous recording and playback of multiple audio channels directly to SD cards, without requiring an external computer. This makes it ideal for live recording, virtual sound checks and playback applications.

Yes. The M32R LIVE is widely used for concerts, corporate events, houses of worship, theatres and professional audiovisual productions thanks to its powerful processing engine and highly flexible configuration options.

Yes. The console is compatible with AES50 digital stage boxes, allowing the number of remote inputs and outputs to be significantly expanded while maintaining exceptional audio quality and ultra-low latency.
