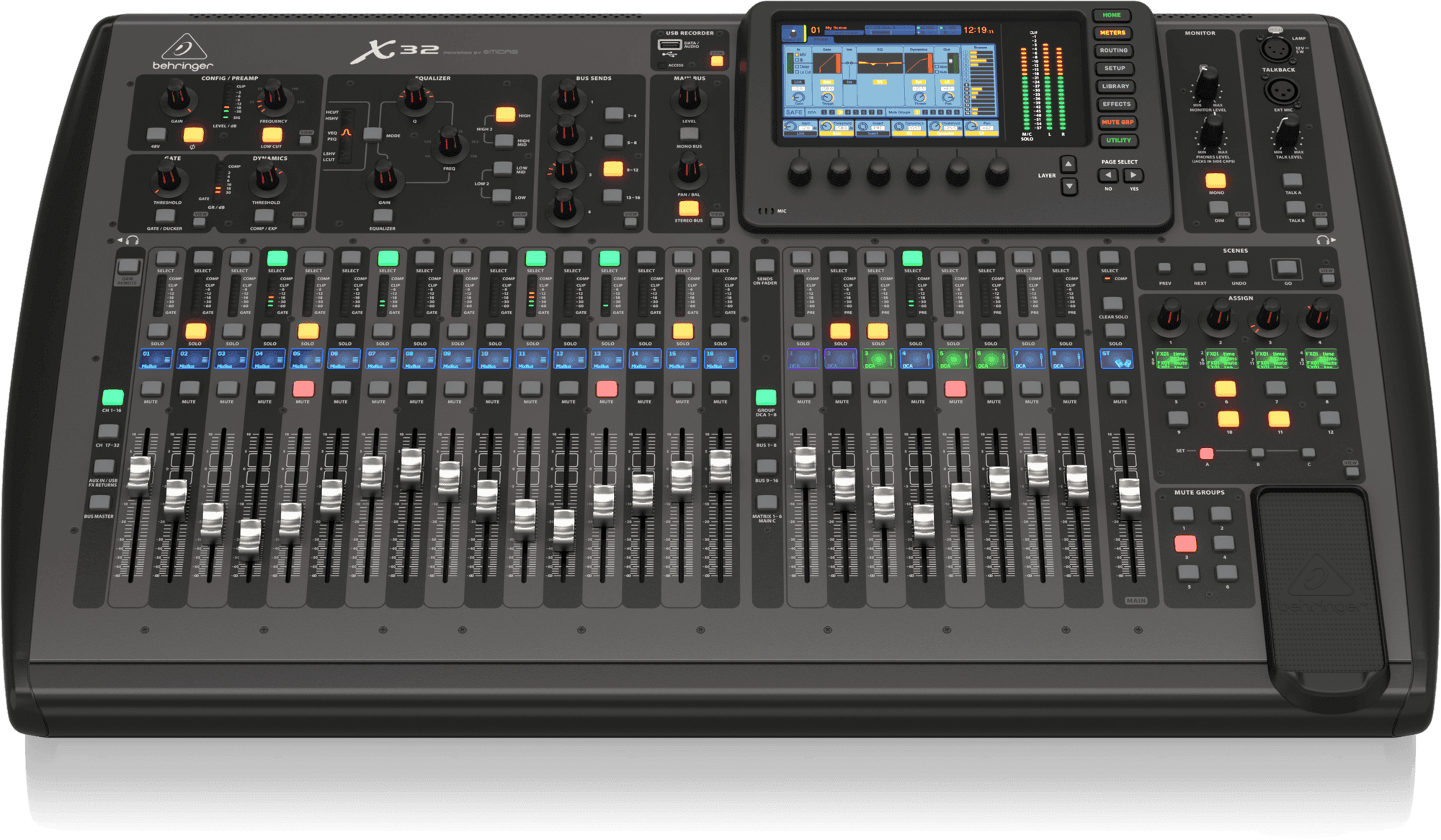

40-channel digital mixing console / 25 mix buses

Behringer | X32

40-channel digital mixing console / 25 mix buses

Technical specifications

Technology : Digital mixing console
Latency : < 1 ms
Mixable channels : 40
Mix buses : 16
Number of matrices : 6
DCA + mute groups : 8 + 6
Number of faders : 24 + 1 master
Assignable faders : 40
Effects racks : 8 with dedicated stereo returns
Control : 800 × 480 pixel LCD display

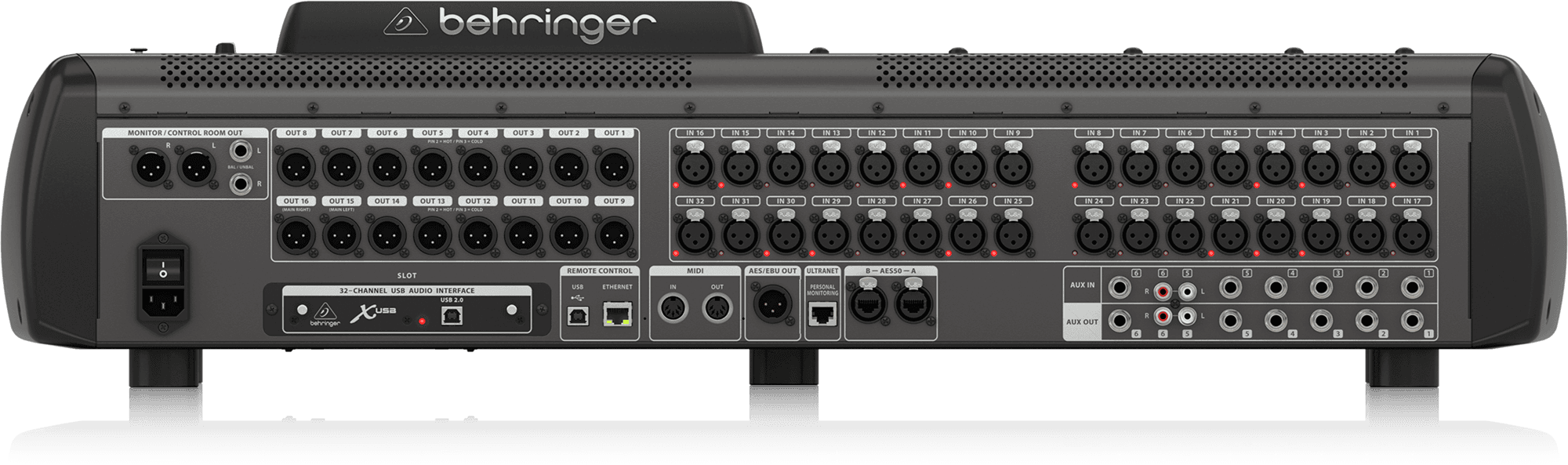

Local inputs : 32 XLR Mic/Line + 6x 6.35 mm TRS AUX + 2 RCA
Local outputs : 16 XLR Line + 6x 6.35 mm TRS AUX + 2 RCA + 1 XLR AES/EBU
Dimensions W x H x D : 900 x 200 x 528 mm
Weight (without accessories) : 20.6 kg



Complementary products

Digital stagebox – 16 in / 8 out XLR16-In / 8-Out Digital Stage BoxDual-band Wi-Fi 6 router - 2.4 Gbit/sLenovo professional laptop for audiovisual applications

Alternatives

Compact digital mixing console with 40 channels and 25 mix buses22-input / 12-output digital mixing console40-channel digital mixing console / 32 XLR microphone inputs40-channel digital mixing console / 16 XLR–Jack inputs

Frequently asked questions

It combines extensive processing capabilities, an intuitive interface and a comprehensive feature set for professional applications.

It offers up to 40 mixable channels and 25 mix buses to meet the requirements of live sound and fixed installations.

Yes. The X32 provides network control capabilities, allowing operation from a compatible computer or tablet via a router.

It is widely used in performance venues, houses of worship, events, live productions and production studios.
