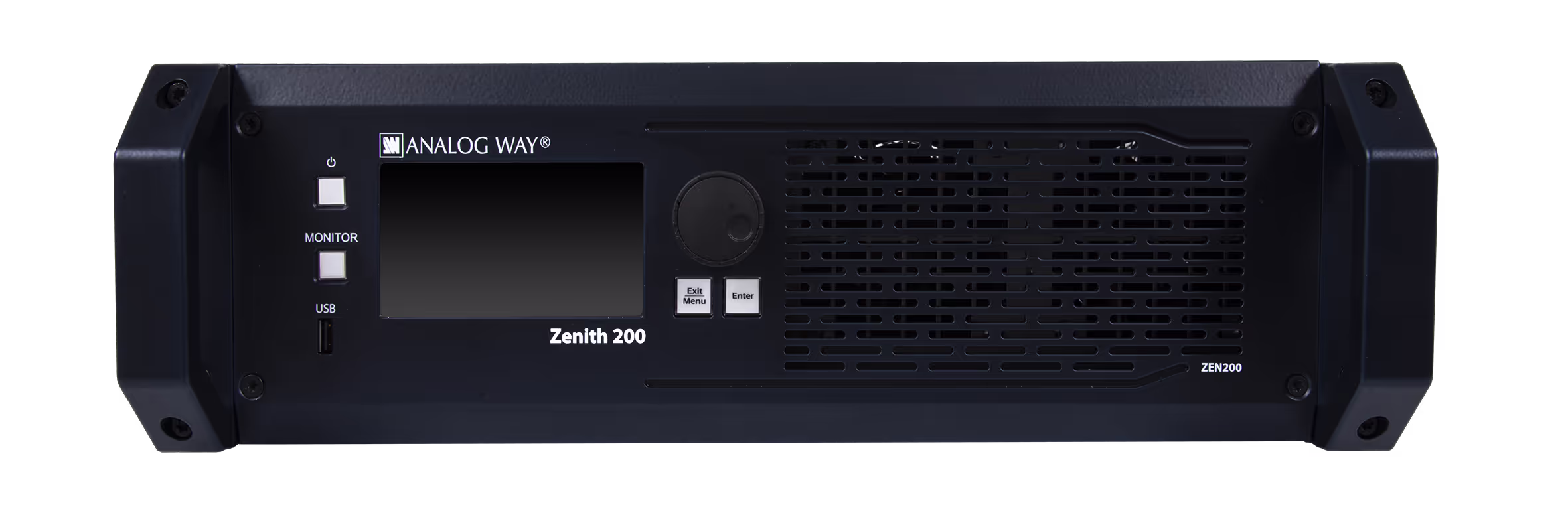

Analog Way | Zenith 200

4K60 Multi-Screen presentation switcher & Alta 4K video processor

Technical specifications

Technology : Alta 4K multi-screen presentation switcher / 4K60 video processor

Video processing & HDR : 4K60 - 10-bit - 4:4:4 with HDR10, HLG and real-time SDR ↔ HDR conversion

Latency : 1 frame (≈ 16 ms at 60 Hz)

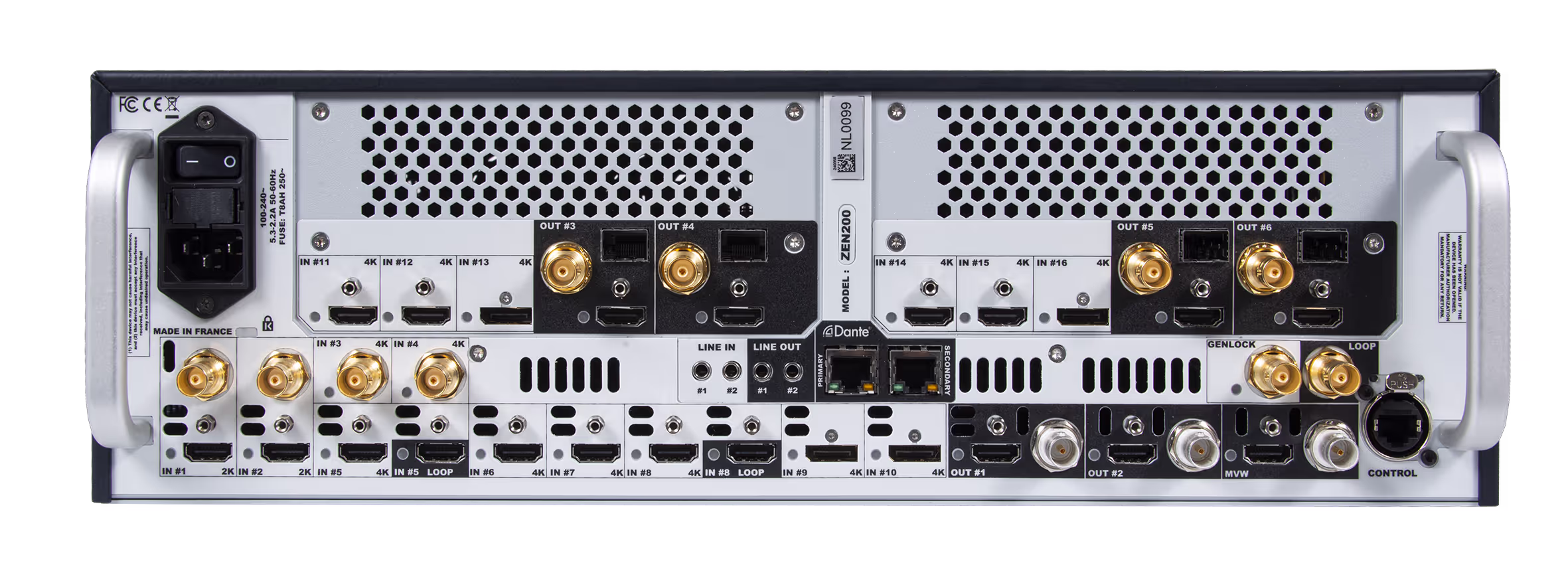

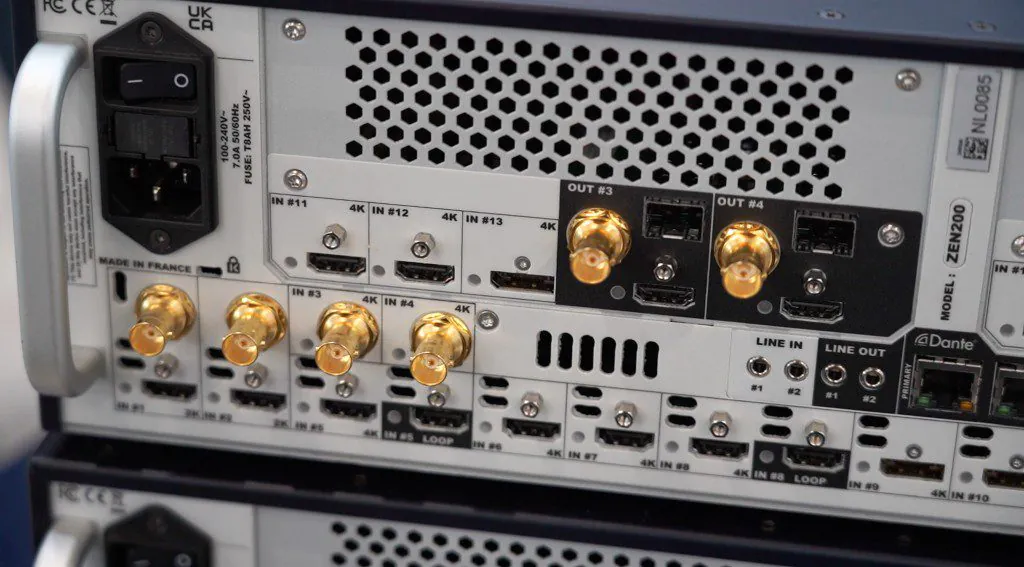

Video inputs : 8 HDMI 2.0 + 4 DisplayPort 1.2 + 2 12G/6G/3G-SDI + 2 selectable HDMI 1.4 or 3G-SDI

Total inputs : 16 (14x 4K60 + 2x 1080p)

Video outputs : 6 independent 4K60 outputs (HDMI 2.0 or 12G-SDI selectable), including 4 outputs equipped with SFP+ connectors compatible with fiber optics or ST 2110

Dedicated multiviewer output : HDMI 1.4 or 3G-SDI (selectable) with up to 27 resizable widgets

Maximum PGM displays : 4

AUX outputs : Up to 4 (1080p60 depending on configuration)

Video layers : Background (video or still image) + up to 8 resizable 4K layers + 1 foreground still image layer

Video effects : Seamless Switching, Picture in Picture, Luma Key, Chroma Key, Alpha Key, Transitions, Borders and Edge Blending

Streaming : Integrated RTMP streaming (up to 1080p30)

Audio : Audio embedding/de-embedding + optional 32 x 32 Dante audio card

Power Consumption : 250 W (max.)

Dimensions W x H x D : 482.5 x 133.0 x 533.5 mm

Net weight : 12.8 kg

Complementary products

20000-lumen professional laser projector

High-Brightness WUXGA 3LCD Laser Projector

75" UHD Professional Display for Presentations and Digital Signage

65" UHD Professional Display for Digital Signage and Event Applications

Alternatives

Modular 4K60 presentation processor - Event Master platform

4K presentation switcher for meeting rooms and corporate events

High-resolution seamless video mixer and switcher

Frequently asked questions

The Analog Way Zenith 200 is a 4K60 presentation switcher and video processor designed for medium and large-scale productions. With 16 inputs, 6 independent outputs, ultra-low-latency 10-bit 4:4:4 processing and up to 8 video layers, it is perfectly suited to conferences, TV studios, live productions, LED walls and demanding audiovisual installations.

The Pulse² is a Full HD presentation switcher intended for conventional productions, while the Zenith 200 belongs to the latest Alta 4K platform. It supports native 4K60 signals, HDR, 10-bit 4:4:4 processing, up to 8 video layers, integrated RTMP streaming, 3D LUTs and advanced multi-screen and LED wall workflows, making it suitable for far more demanding productions.

The Zenith 200 features 16 video inputs and 6 independent 4K60 outputs. It can drive up to 4 Program (PGM) displays, either individually or configured for edge blending, as well as up to 4 auxiliary outputs depending on the selected configuration. This flexibility makes it an excellent solution for conferences, corporate events and complex LED wall installations.

The Zenith 200 combines ultra-low-latency processing, HDR10 and HLG compatibility, 3D LUT support, Genlock, custom output formats, integrated RTMP streaming and a highly reliable FPGA processing platform. These capabilities ensure outstanding image quality for LED walls, projection systems and 4K display environments used in high-end live productions.
