Epson | EB-PU2200B

20000-lumen professional laser projector

Technical specifications

Projection system : 3LCD laser technology

Brightness : 20000 ANSI lumens

Light source : Laser

Native resolution : WUXGA (1920 x 1200)

Resolution enhancement : 4K Enhancement

HDR compatibility : HDR10 / HLG

Contrast ratio : > 5,000,000:1

Lens : Interchangeable (not included)

Lens shift : Motorised ±60% vertical / ±18% horizontal (depending on lens)

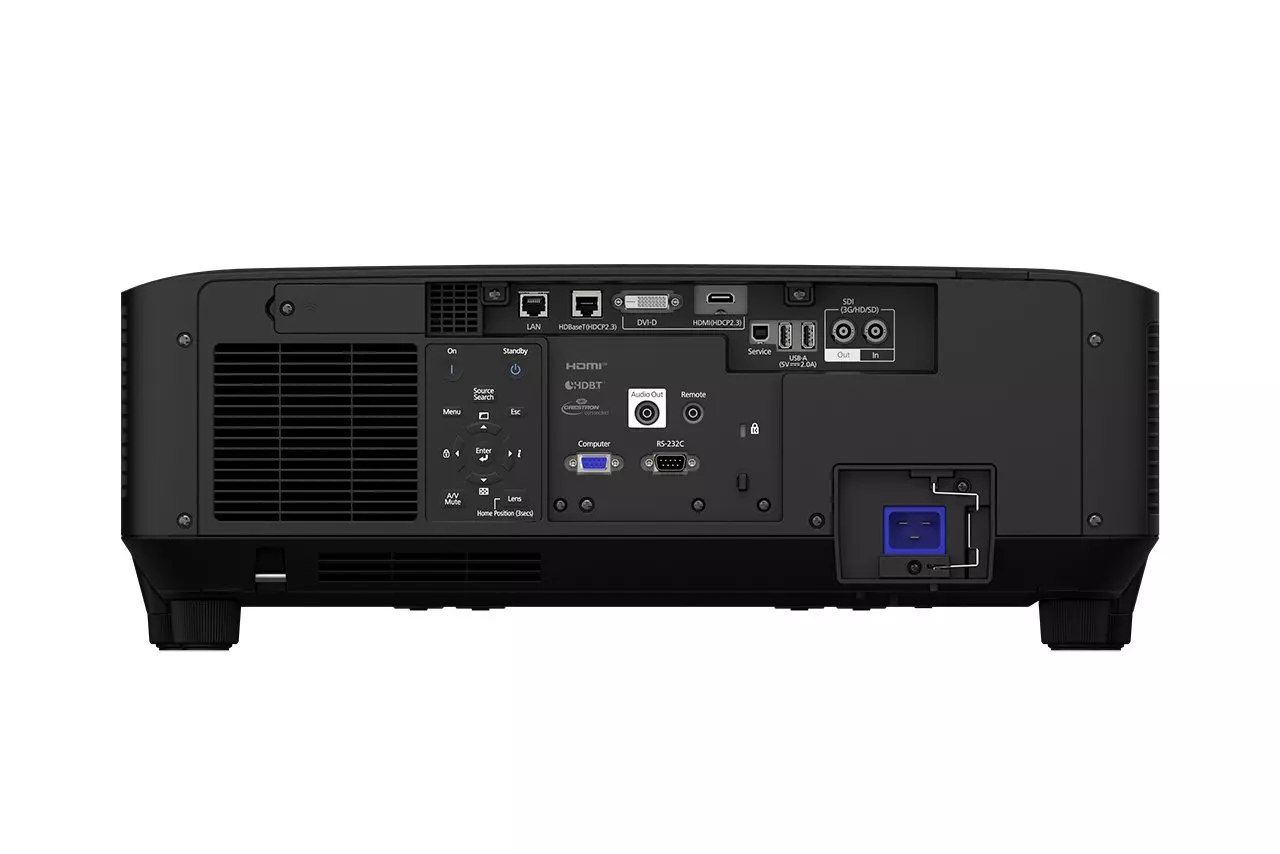

Video connections : HDMI, DVI-D, VGA, HDBaseT, 3G-SDI In/Out

Network connections : Ethernet RJ45, NFC, optional Wi-Fi

Advanced features : Edge Blending, Stacking, Quick Corner, Web Control, Super Resolution

Optical protection rating : IP5X

Power consumption : 1,143 W nominal / 1301 W maximum

Dimensions W x H x D : 586 x 218 x 492 mm

Weight without accessories : 24.4 kg

Complementary products

Modular 4K60 presentation processor - Event Master platform

4K presentation switcher for meeting rooms and corporate events

High-resolution seamless video mixer and switcher

Compact HDMI video switcher with integrated streaming and recording

Alternatives

High-Brightness WUXGA 3LCD Laser Projector

75" UHD Professional Display for Presentations and Digital Signage

65" UHD Professional Display for Digital Signage and Event Applications

Frequently asked questions

The EB-PU2200B combines very high brightness, a compact footprint and extensive installation flexibility. Its compact chassis facilitates transportation and rigging while delivering the performance required for large events, conferences and video mapping.

The projector uses 3LCD technology with native WUXGA resolution (1920 × 1200), 4K Enhancement technology and HDR10/HLG compatibility. It can reproduce up to 1.07 billion colours with a contrast ratio exceeding 5,000,000:1.

The EB-PU2200B supports interchangeable motorised lenses, motorised lens shift, lens memories, Edge Blending, integrated stacking and HDBaseT connectivity, making complex installations easier to deploy.

Its optical engine and laser light source are IP5X certified for dust resistance. Combined with a laser light source rated for up to 20000 hours, this significantly reduces maintenance requirements and improves reliability for intensive professional use.
