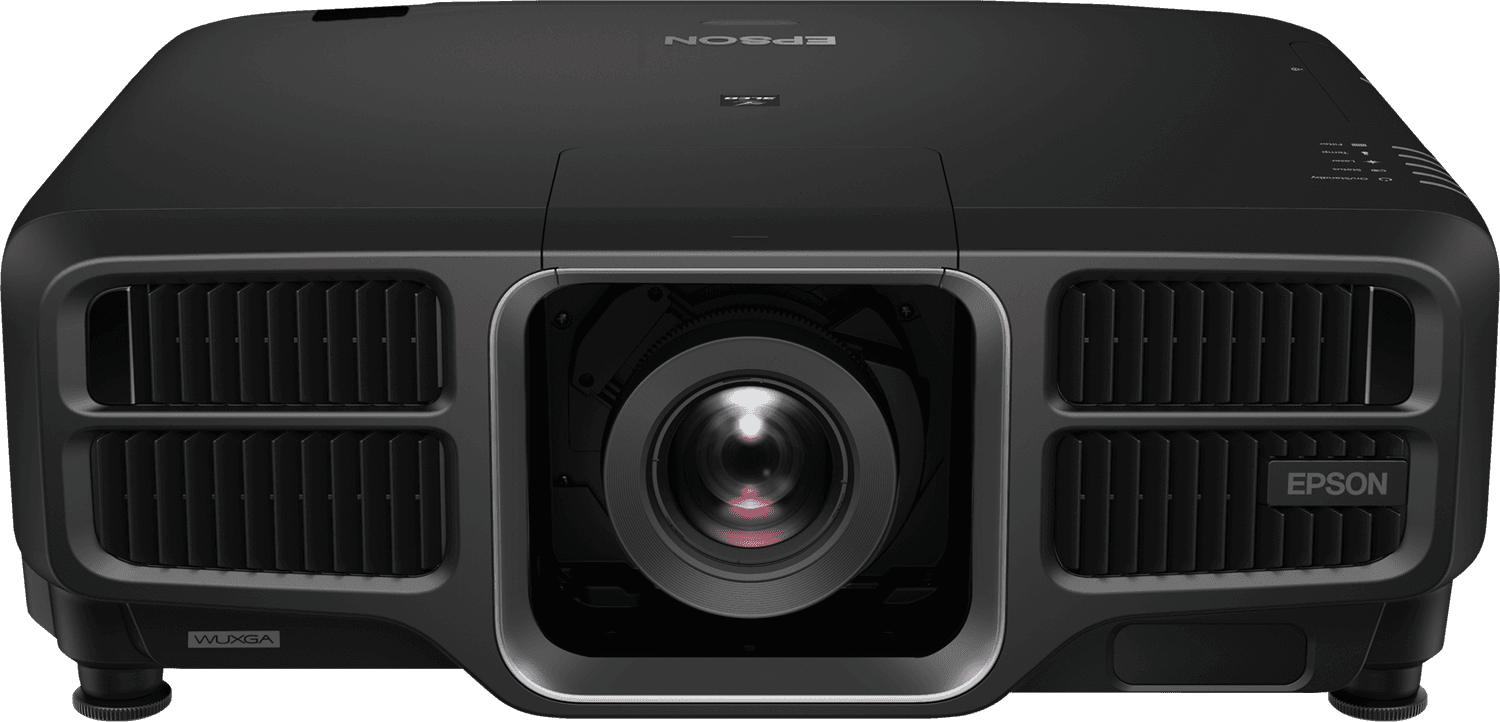

Epson | EB-L1755U

High-Brightness WUXGA 3LCD Laser Projector

Technical specifications

Technology : 3LCD laser projection

Brightness : 15000 ANSI lumens

Light source : Laser

Native resolution : WUXGA (1920 x 1200) / 16:10

Resolution enhancement : 4K Enhancement

Colour reproduction : Up to 1.07 billion colours

Contrast ratio : > 2,500,000:1

Lens : Interchangeable

Lens shift : Motorised ±60% vertical / ±18% horizontal (depending on lens)

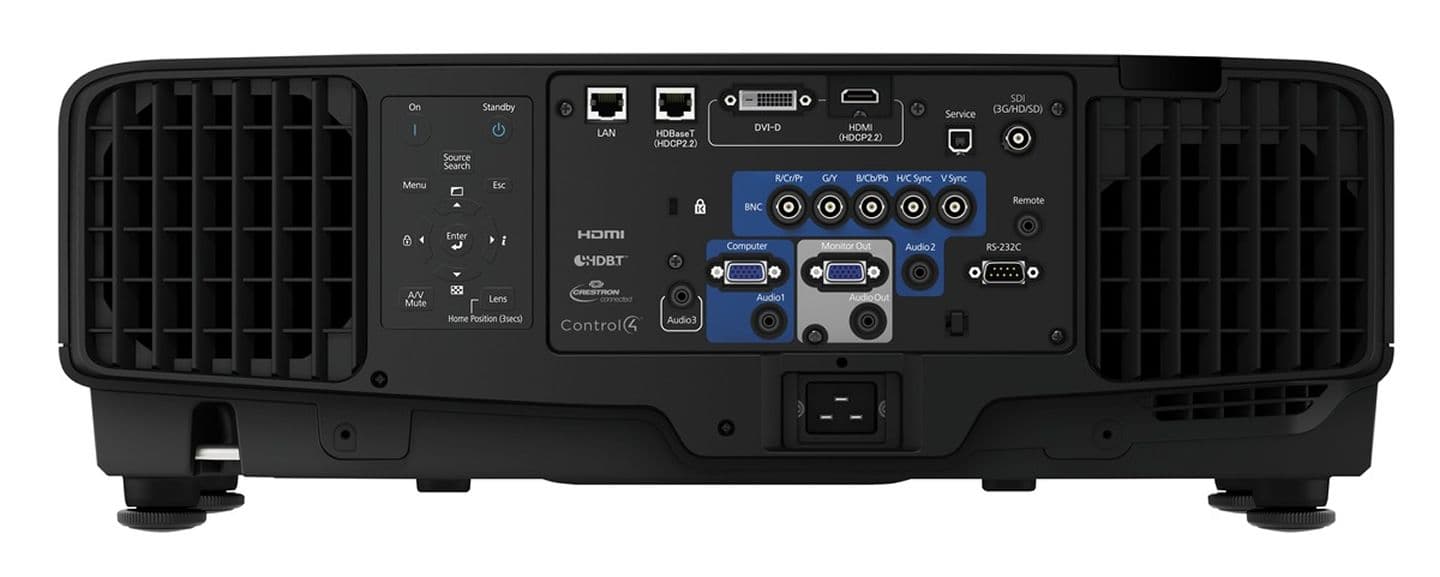

Video inputs : HDMI, DVI-D, HD-SDI, VGA and HDBaseT

Audio connections : 3 Jack inputs and 1 Jack output

Control : Ethernet, RS-232, AMX, Crestron and Extron

Advanced features : Integrated camera, Auto Calibration, Frame Interpolation and Lens Memory

Power consumption : 938 W nominal / 1024 W maximum

Dimensions W x H x D : 586 x 211 x 492 mm

Weight without accessories : 24.1 kg

Complementary products

Modular 4K60 presentation processor - Event Master platform

4K presentation switcher for meeting rooms and corporate events

High-resolution seamless video mixer and switcher

Compact HDMI video switcher with integrated streaming and recording

Alternatives

20000-lumen professional laser projector

75" UHD Professional Display for Presentations and Digital Signage

65" UHD Professional Display for Digital Signage and Event Applications

Frequently asked questions

With 15,000 lumens, a 3LCD laser light source and compatibility with interchangeable Epson lenses, the EB-L1755U combines high brightness with extensive installation flexibility. It is particularly suitable for conferences, video mapping, auditoriums and large-scale events.

The projector features motorised lens shift, 10 lens position memories, an integrated calibration camera, frame interpolation and advanced adjustment and alignment functions that help simplify complex installations.

The projector features HDMI, DVI-D, HDBaseT, VGA and HD-SDI connectivity, making it easy to integrate into professional audiovisual environments and demanding video distribution infrastructures.

Epson's 3LCD technology provides colour brightness equivalent to white brightness, excellent colour reproduction and a long light-source lifespan of up to 20,000 hours in normal mode and 30,000 hours in economy mode.
