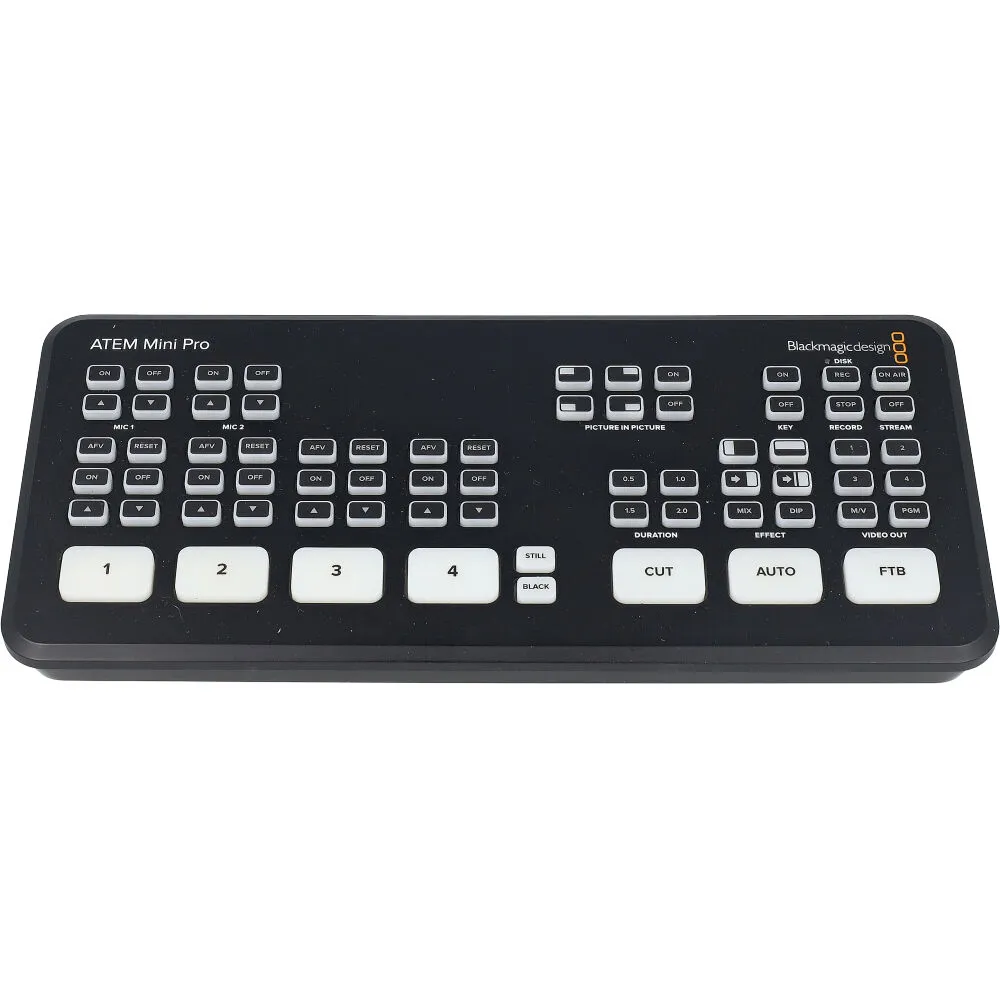

Blackmagic Design | ATEM Mini Pro

Compact HDMI video switcher with integrated streaming and recording

Technical specifications

Technology : Full HD HDMI video switcher with integrated hardware streaming engine

Video format : HD up to 1080p60

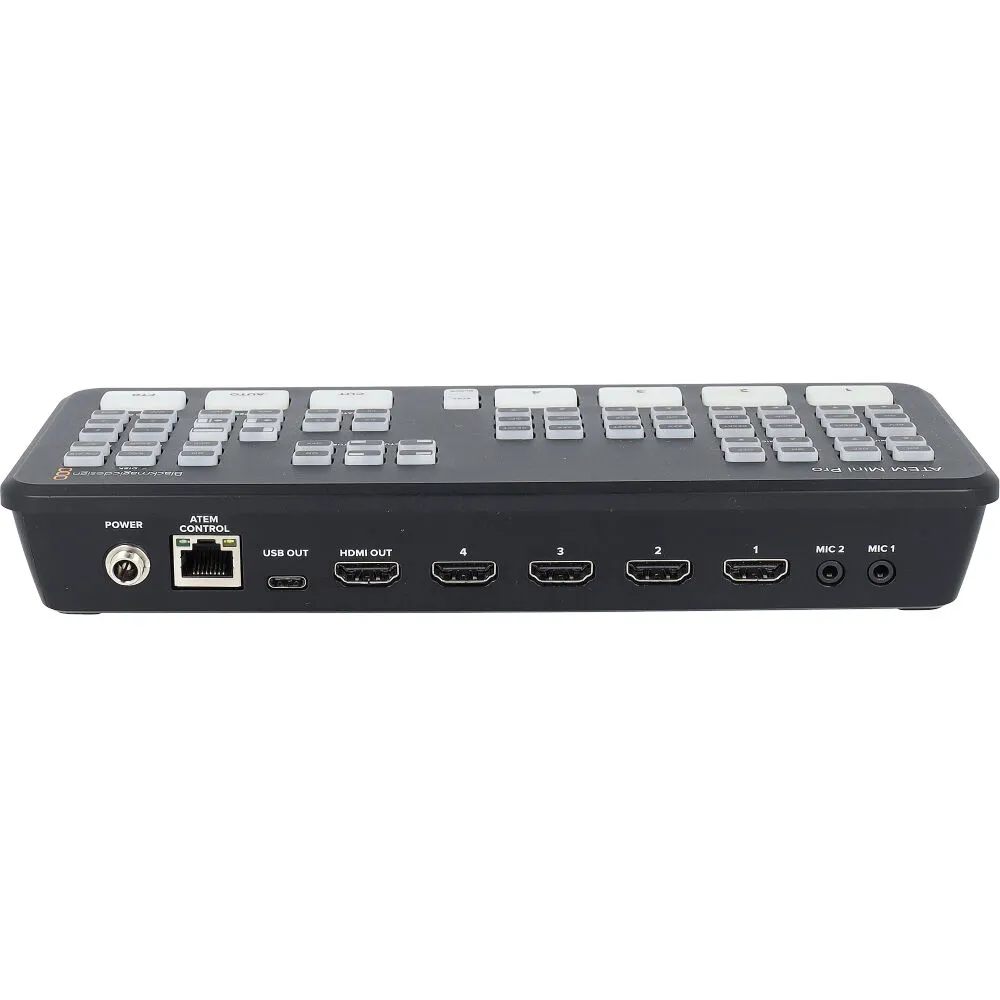

Video inputs : 4 HDMI Type A with automatic format conversion

Video output : 1 HDMI (Program or Multiview)

USB-C output : UVC webcam up to 1080p60 (Windows & macOS)

Analogue audio inputs : 2 balanced 3.5 mm mini-jack with microphone power

Embedded audio : Up to 2 channels per HDMI input

Audio mixer : Fairlight with 6-band parametric EQ, compressor, gate and limiter

Direct streaming : RTMP via Ethernet

Keyers : 1 Chroma Key, 1 Downstream Key, 2 Luma/Linear Keys

Video effects : Cut, Mix, Dip, Wipe, DVE and Picture in Picture

Colour depth : 10-bit – Colour dpace: Rec.709 (4:2:2 YUV)

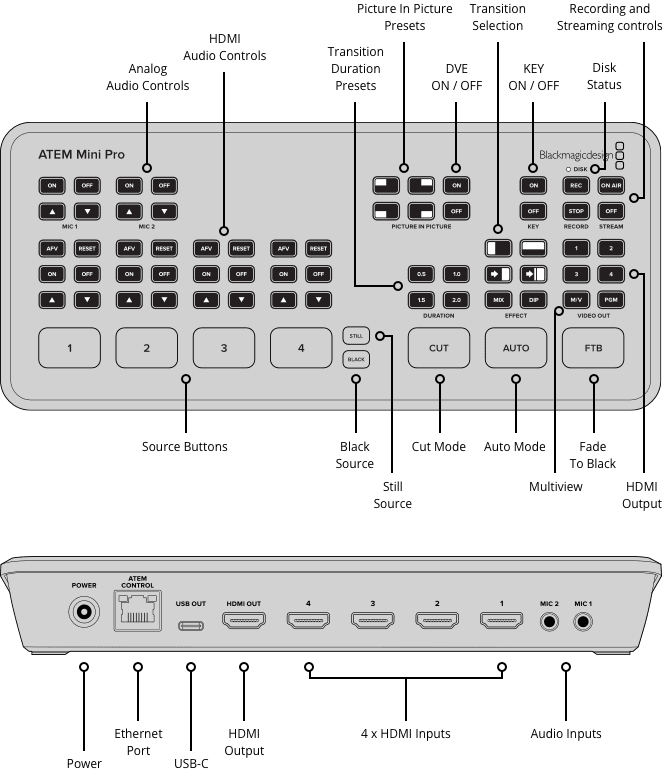

Control : Integrated control panel, ATEM Software Control, Ethernet and USB-C

Power consumption : 30 W

Dimensions W x H x D : 237.5 x 35.0 x 103.5 mm

Net weight : 550 g

Complementary products

75" UHD Professional Display for Presentations and Digital Signage

65" UHD Professional Display for Digital Signage and Event Applications

20000-lumen professional laser projector

High-Brightness WUXGA 3LCD Laser Projector

Alternatives

8-Input HDMI Live Production Switcher with Streaming and ISO Recording

High-resolution seamless video mixer and switcher

4K presentation switcher for meeting rooms and corporate events

Frequently asked questions

The ATEM Mini Pro enables professional multicamera live productions by switching between up to four HDMI sources, adding transitions, graphics, titles and effects, then streaming live or recording directly to USB-C storage.

Unlike a standard capture card, the ATEM Mini Pro is a complete production switcher. It offers Picture in Picture, chroma keying, Fairlight audio mixing, integrated RTMP streaming and standalone recording without requiring dedicated production software.

Yes. Its built-in RTMP streaming engine allows direct streaming to YouTube Live, Facebook Live, Twitch and other compatible platforms via Ethernet, eliminating the need for a dedicated streaming computer.

The ATEM Mini Pro integrates Multiview monitoring, Fairlight audio processing, chroma keying, DVE Picture in Picture, a media player, H.264 USB recording and a UVC-compatible webcam output recognised by most conferencing and streaming applications.
