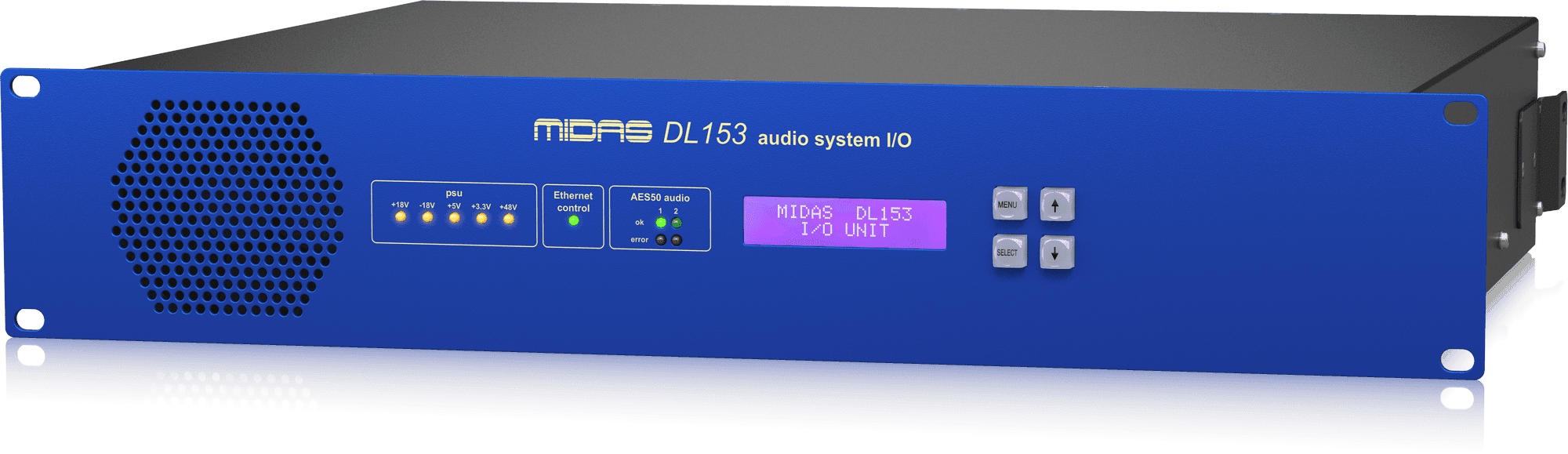

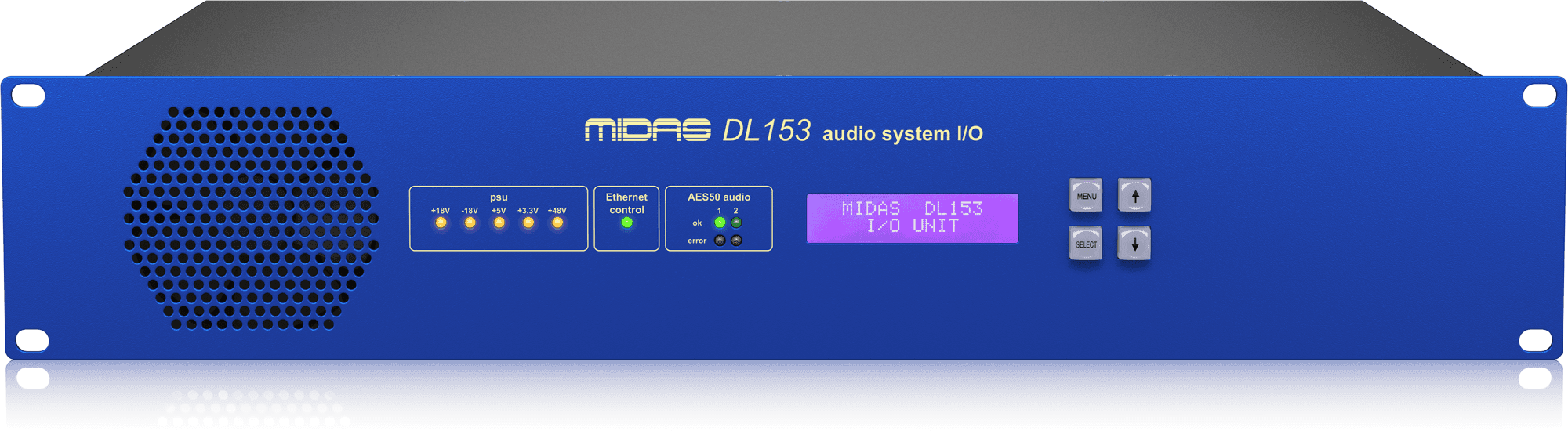

Midas | DL-153

16-In / 8-Out Digital Stage Box

Technical specifications

Technology : Digital stage box for AES50 networks

Compatibility : Midas PRO Series, M32 and AES50-compatible equipment

Sample Rate : 96 kHz

Converters : 24-bit high-resolution converters

Microphone preamps : 16 remotely controllable Midas preamps

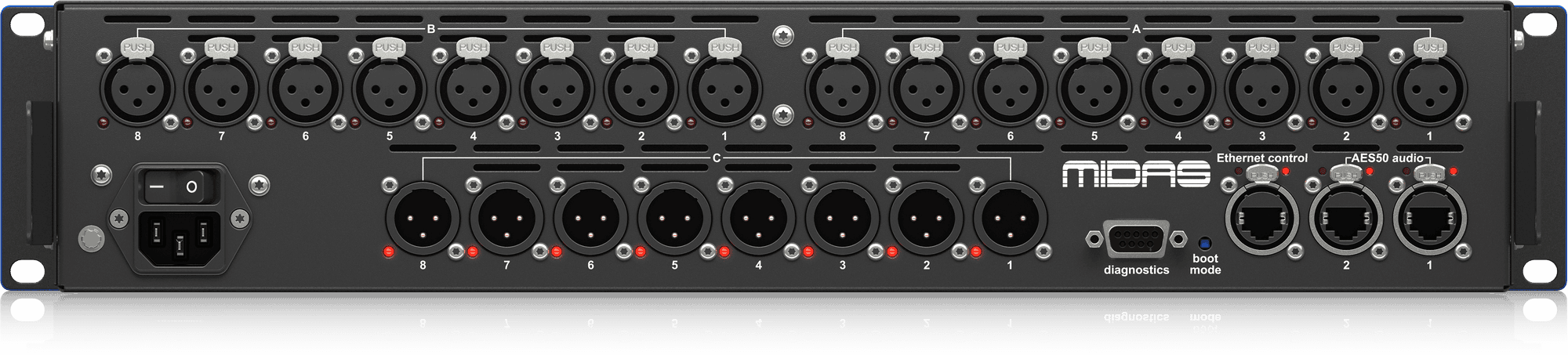

Local inputs : 16 XLR Mic/Line

Local outputs : 8 XLR Line

Phantom power : Individual +48 V phantom power per channel

Network connections : 2 redundant AES50 ports

Dimensions W x H x D : 483 x 89 x 409 mm

Net weight : 7.5 kg

Complementary products

Compact digital mixing console with 40 channels and 25 mix buses

Alternatives

Frequently asked questions

The DL-153 brings audio connections closer to the stage while transmitting signals to the control room via an AES50 digital connection. This reduces analogue cabling and helps minimise the risk of interference.

Midas microphone preamps are renowned for their sonic transparency, wide dynamic range and low noise, making them well suited to demanding live sound and broadcast applications.

Yes. Its robust design and compatibility with Midas and Behringer digital audio infrastructures make it a suitable solution for touring productions, festivals and professional events.

The DL-153 is compatible with consoles supporting the AES50 protocol, including Midas M32 and PRO Series consoles, as well as compatible Behringer X32 systems.
