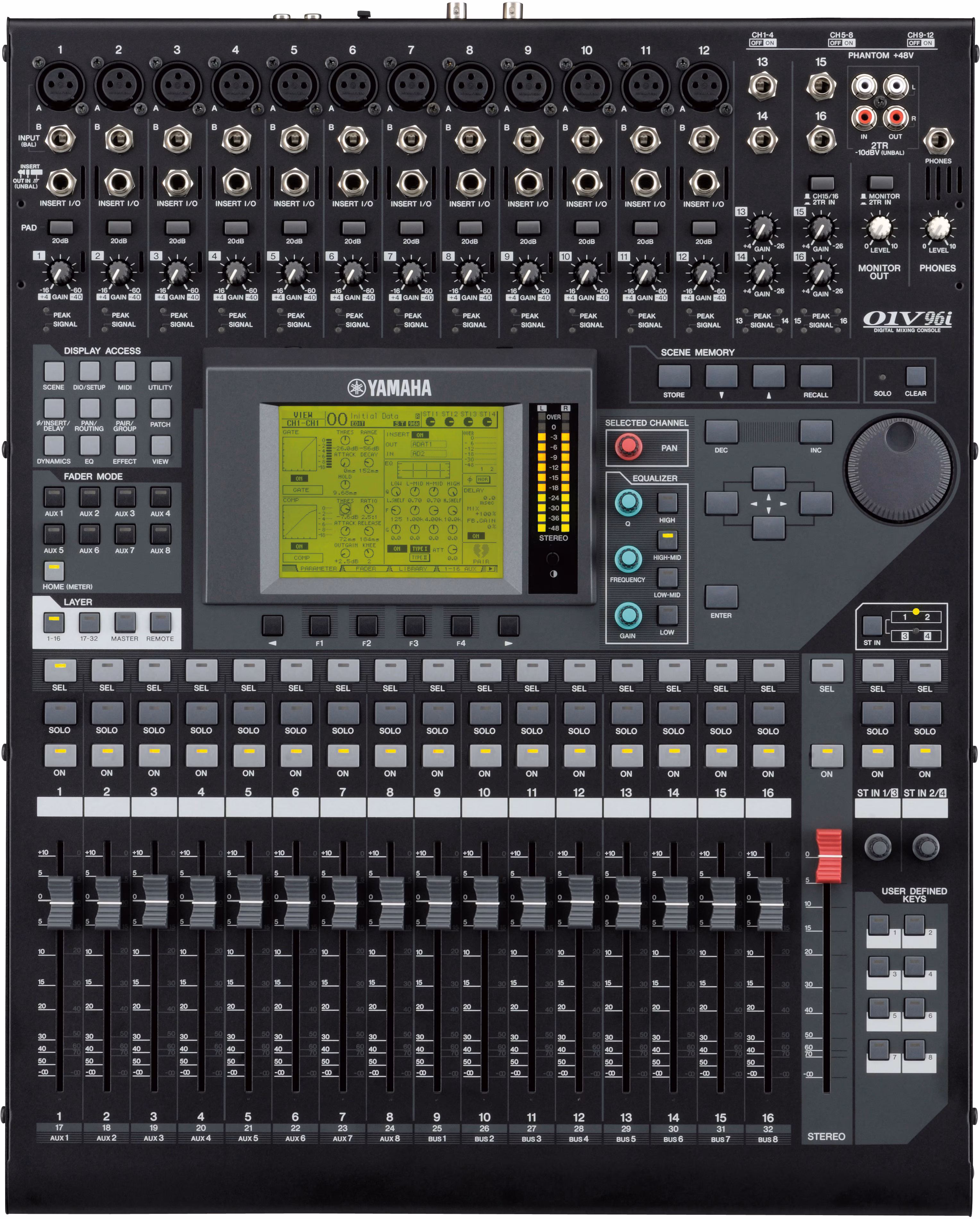

Yamaha | 01V96i
40-channel digital mixing console / 16 XLR–Jack inputs
Technical specifications
Technology : Digital mixing console
Latency : > 1.6 ms at 48 kHz and > 0.8 ms at 96 kHz
Mixable channels : 32 mono + 4 stereo
Auxiliary buses : 8
Mix buses : 8
Number of faders : 16 + 1 master
Assignable faders : 32
Effects racks : 4 multi-effects processors
Control : 320 × 420 pixel backlit LCD display
Local inputs : 12 XLR or TRS Mic/Line + 4 TRS jack + 2 RCA 2TR + 1 digital 2TR + 1 ADAT
Local outputs : 2 XLR ST + 4 TRS OMNI + 2 TRS MON + 2 RCA 2TR + 1 digital 2TR + 1 ADAT
Dimensions W x H x D : 436 x 148 x 548 mm
Weight (without accessories) : 14.0 kg
Alternatives
Frequently asked questions
This digital audio console offers up to 40 mixable channels, integrated DSP processing and a multichannel USB audio interface for recording and playback.
Its reliability, audio processing quality and compact design make it a high-performance solution for mobile productions and fixed installations.
Yes. Thanks to its integrated USB interface, the 01V96i supports multitrack recording and integration with audio production software.
It is suitable for events, multipurpose venues, houses of worship, production studios and institutional applications.
