Behringer | S16
Digital stagebox – 16 in / 8 out XLR
Technical specifications
Technology : AES50 network digital stagebox
Compatibility : Behringer X32, Compact, Producer, Rack, WING and AES50 networks
Conversion : 24-bit
Sample rate : 44.1 or 48 kHz
Latency : 1.1 ms

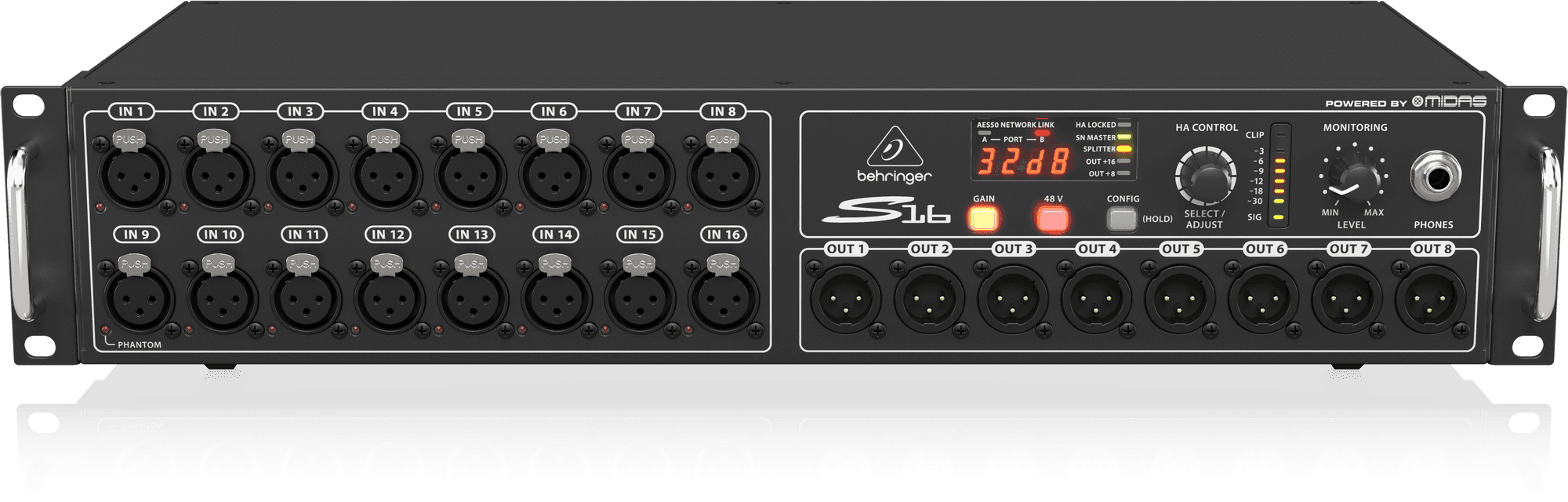

Preamps with phantom power LED : 16
Local inputs : 16 XLR Mic/Line
Local outputs : 8 XLR Line

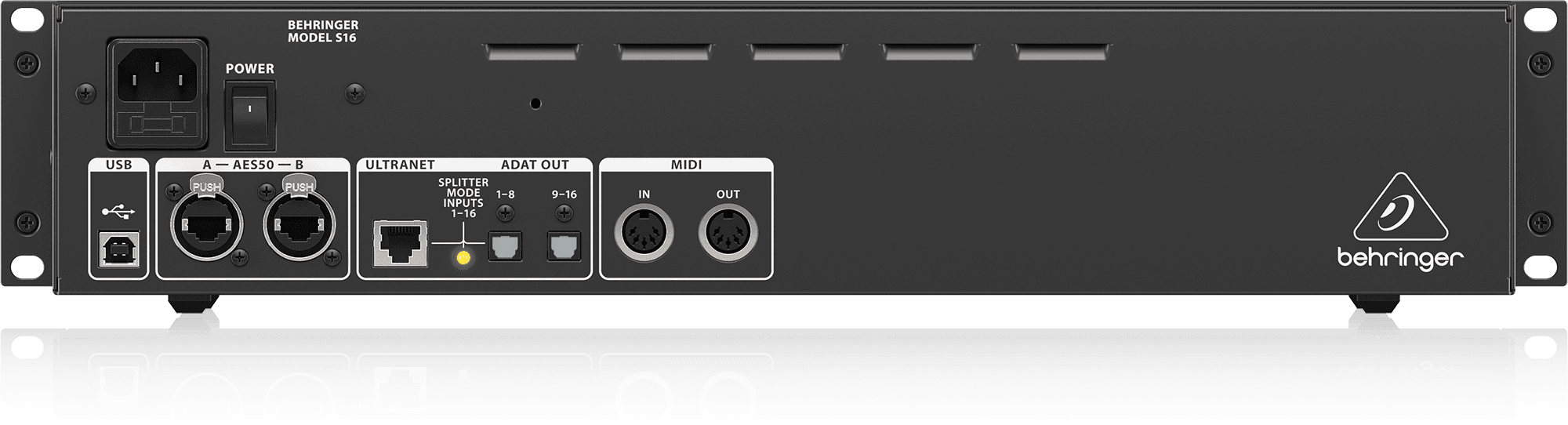

Network connections : 2 AES50 ports + 1 Ultranet P-16 port
Dimensions W x H x D : 482 x 89 x 225 mm
Weight : 4.7 kg
Complementary products
Alternatives
Frequently asked questions
The S16 remotely connects audio inputs and outputs closer to performers or sources, simplifying system installation.
It features 16 microphone preamps and 8 analogue XLR outputs.
It reduces signal loss associated with long analogue connections and significantly simplifies cabling for events.
It is primarily used with Behringer X32 and compatible Midas consoles via the AES50 protocol.
