Panasonic | AW-RP60GJ

Compact Professional PTZ Camera Controller

Technical specifications

Technology : Professional PTZ camera controller - IP / RS-422 control panel

Controllable cameras : Up to 200 IP cameras and 5 RS-422 cameras

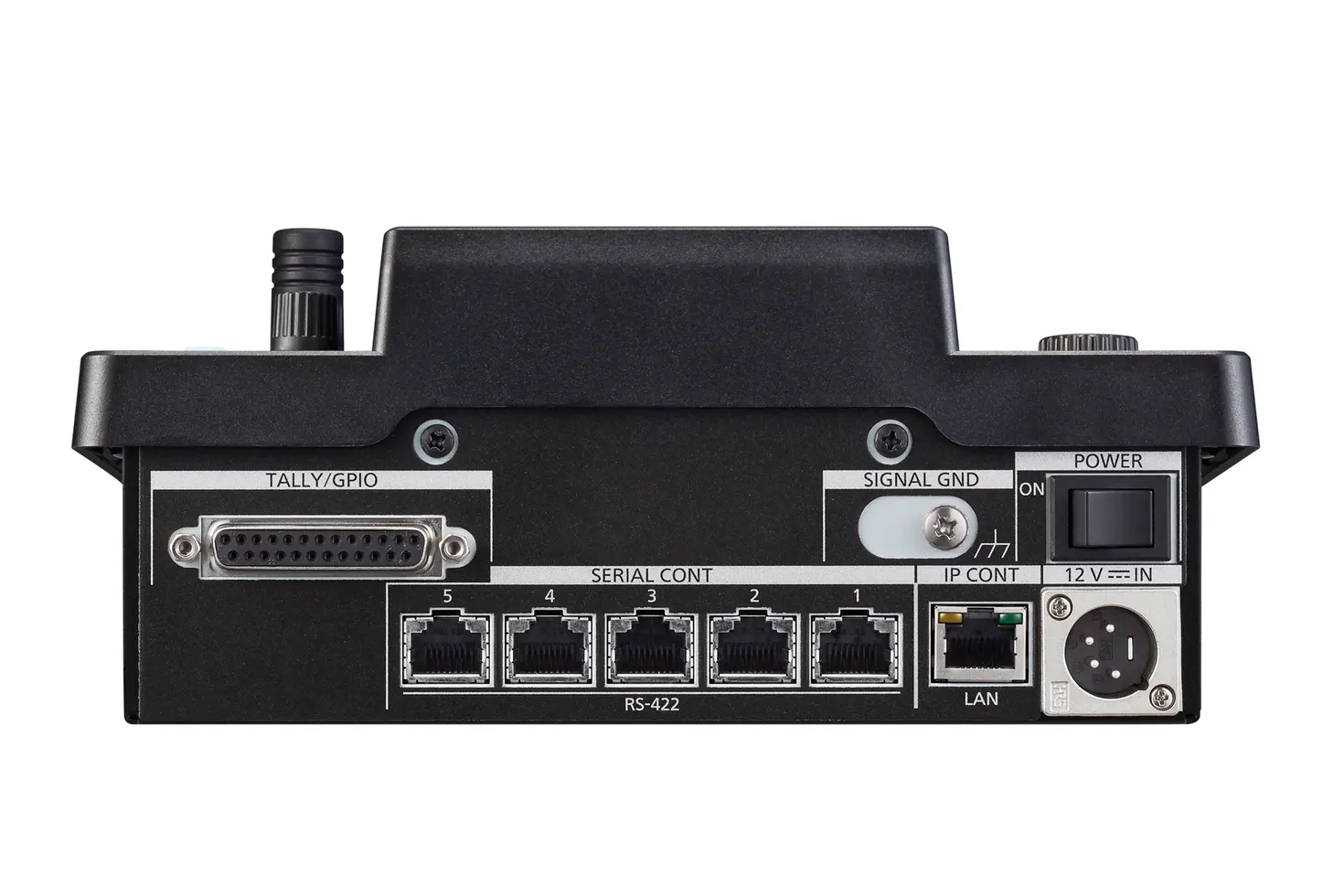

Connectivity : 4-pin XLR (12 V DC input) + Ethernet LAN (10BASE-T / 100BASE-TX) with PoE + 5 RS-422 (RJ45) + 25-pin Sub-D (GPIO / Tally)

Control protocols : IP and RS-422

Camera adjustments : Iris, gain, white balance, gamma, color correction and advanced image settings

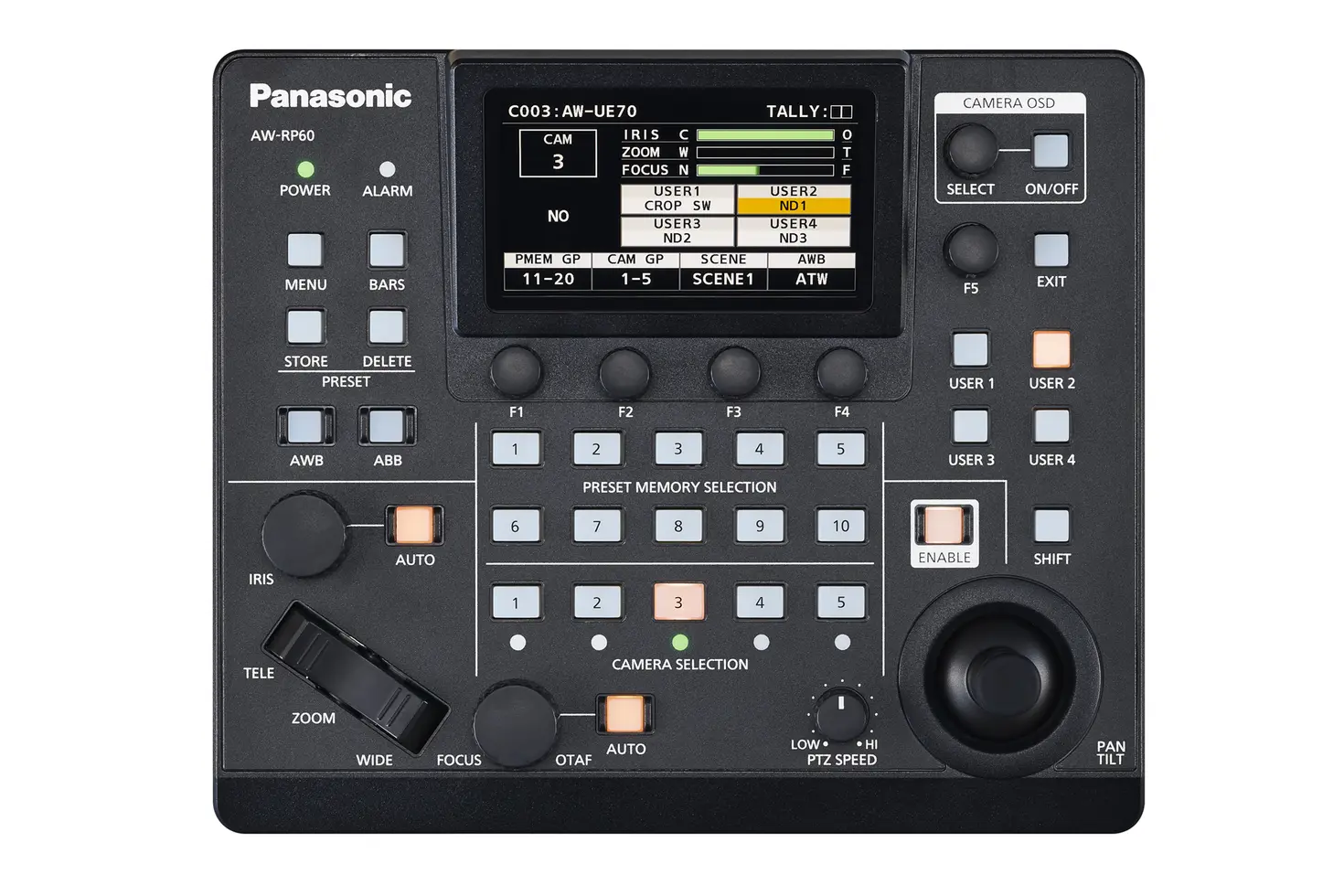

Control interface : High-precision Pan/Tilt joystick, zoom rocker, focus and iris controls

Preset memories : 100 camera presets

Camera organization : 5 direct selection buttons and 40 camera groups, with additional camera selection via LCD display

Customization : 4 User Assign buttons, up to 8 functions via Shift key, preset naming through PC software

Integrated display : 3.5" color LCD - QHD (960 x 540) resolution

Power supply : 12 V DC (10.8 - 13.2 V) or PoE 42-57 V DC (IEEE 802.3af) via LAN port

Power consumption : 0.9 A (12 V DC) / 0.3 A (PoE)

Dimensions W x H x D : 210 x 92 x 177 mm

Net weight : 1.5 kg

Complementary products

Professional 4K UHD PTZ camera with 60p, NDI® High Bandwidth and SRT

Professional HD/SD Live Video Switcher with Advanced Expansion Capabilities (1 M/E)

Compact HDMI video switcher with integrated streaming and recording

Alternatives

Professional PTZ camera controller with touchscreen interface

Frequently asked questions

The Panasonic AW-RP60GJ is a compact PTZ camera controller designed to provide precise and intuitive control of Panasonic robotic cameras. Featuring a 3.5-inch color LCD display, a next-generation joystick and an intuitive graphical interface, it allows operators to control Pan, Tilt and Zoom movements while adjusting image parameters such as iris, gain, white balance and gamma. It is perfectly suited for conferences, broadcast studios, live streaming, houses of worship, lecture halls and corporate events.

The AW-RP60GJ can control up to 200 IP cameras or 5 cameras via RS-422. It features five direct camera selection buttons and supports up to 40 camera groups, making it ideal for managing complex multi-camera productions from a single controller.

The controller is compatible with Panasonic PTZ cameras from the AW-UE, AW-HE, AW-HN series and other models supporting IP or RS-422 control. In addition to camera movement, it provides remote access to advanced image adjustments, ensuring consistent image quality across multiple cameras.

The AW-RP60GJ delivers the essential features of Panasonic's flagship AW-RP150GJ in a more compact format. It retains a high-precision joystick, advanced camera adjustments, preset memories and IP control, making it an excellent choice for medium-sized control rooms and permanent installations requiring professional performance in a portable controller.
