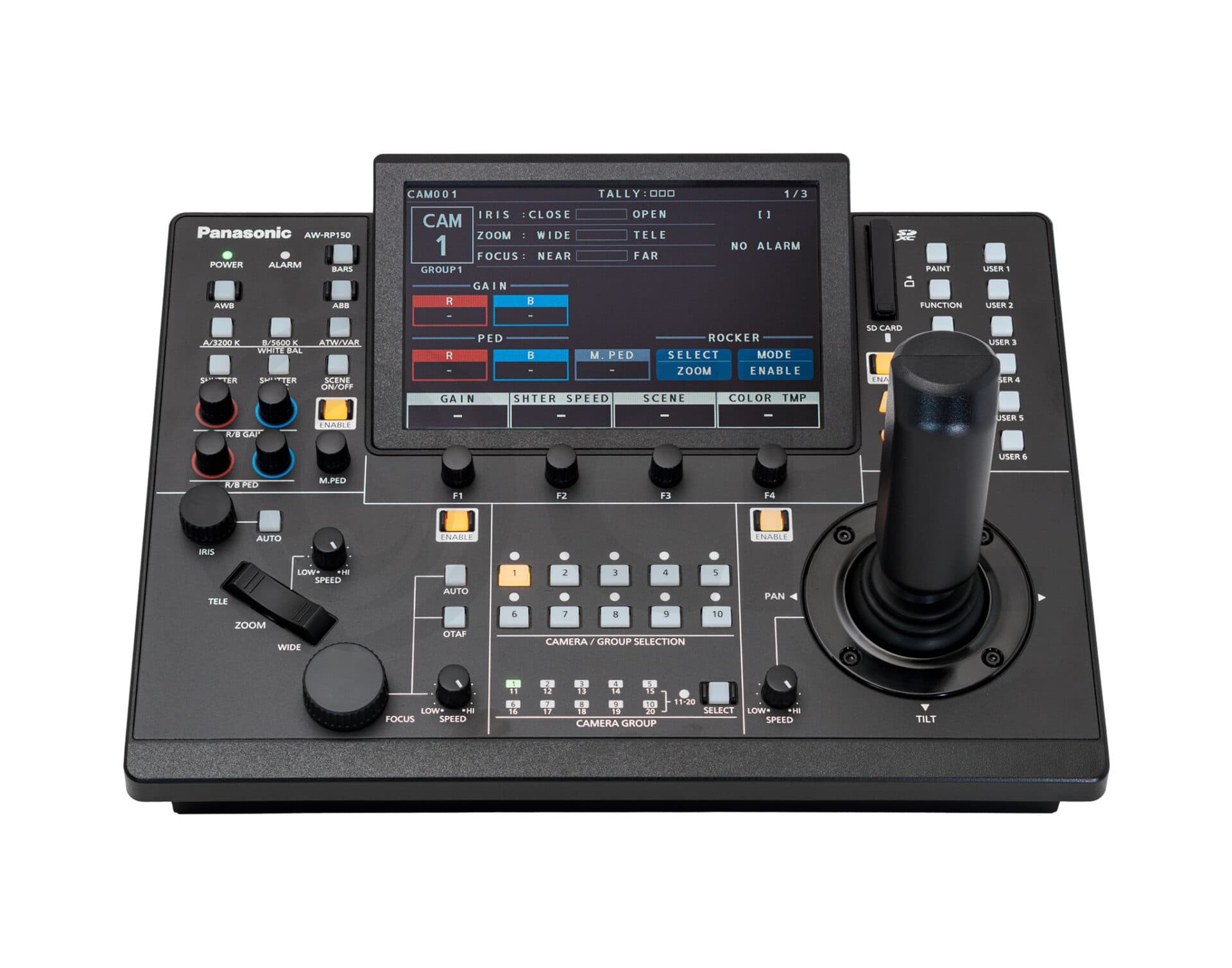

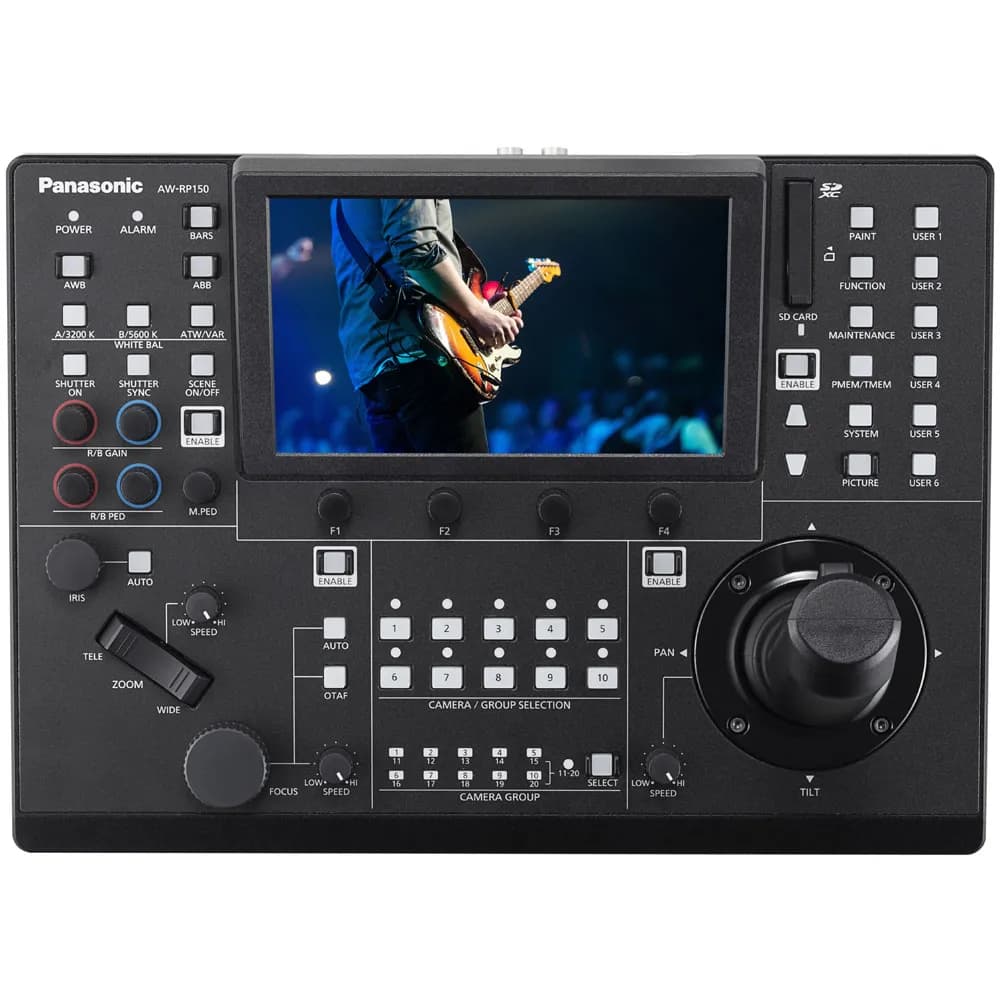

Panasonic | AW-RP150GJ

Professional PTZ camera controller with touchscreen interface

Technical specifications

Technology : Professional PTZ camera control panel

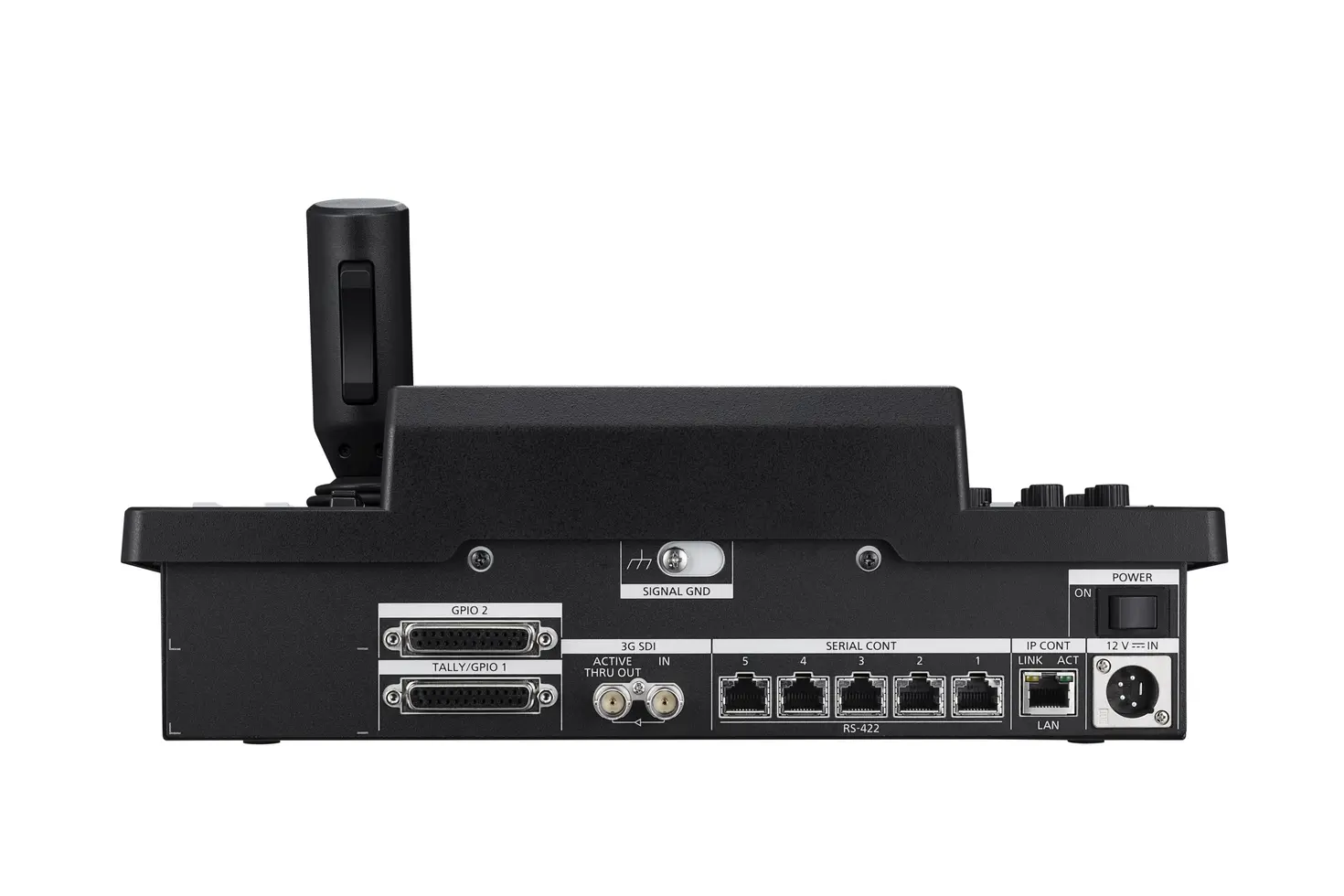

Interfaces : 5 RS-422, 1x 3G-SDI input, 1x 3G-SDI Active Through, 1 LAN 100BASE-TX (PoE+), 2 GPIO (D-Sub 25), SDHC/SDXC card slot

Compatible cameras : Panasonic AW-UE, AW-HE, AW-UN series and other Panasonic IP / RS-422 compatible cameras

Maximum camera capacity : Up to 200 IP cameras or 5 RS-422 cameras

Control protocols : Panasonic RS-422 and IP

Camera selection : 10 direct selection buttons and 20 camera groups

Joystick : Professional high-precision joystick with integrated Pan/Tilt, Zoom and Focus control for one-handed operation

Preset memories : 100 camera presets; Motion memory: Tracing Memory with up to 5 minutes of recording and 10 motion traces per camera

User assign buttons : 6 programmable buttons plus up to 10 additional touchscreen functions

Adjustable Pan/Tilt speed : 7 selectable speed levels

Integrated display : 7-inch colour LCD touchscreen – WVGA (800 x 480) resolution

Power consumption : 1.0 A (DC) / 0.6 A (PoE+) / 12 V DC or PoE+

Dimensions W x H x D : 342 x 178 x 245 mm

Net weight : 3.2 kg

Complementary products

Professional 4K UHD PTZ camera with 60p, NDI® High Bandwidth and SRT

Professional HD/SD Live Video Switcher with Advanced Expansion Capabilities (1 M/E)

Compact HDMI video switcher with integrated streaming and recording

Alternatives

Compact Professional PTZ Camera Controller

Frequently asked questions

The Panasonic AW-RP150GJ is Panasonic's flagship PTZ camera controller, designed for broadcast studios, live events, conference centres and professional video production. Its precision joystick, large touchscreen interface and intuitive controls allow operators to manage camera movements and image adjustments quickly and accurately.

The controller supports up to 200 cameras over IP or 5 cameras via RS-422. Ten dedicated camera selection buttons and twenty camera groups enable operators to manage large multi-camera productions efficiently from a single control surface.

The controller offers advanced production tools including 100 preset positions, Tracing Memory for recording and replaying complex camera movements, simultaneous Pan, Tilt, Zoom and Focus control, and highly responsive joystick operation. These features allow operators to reproduce smooth, repeatable camera moves during live productions.

The AW-RP150GJ combines IP networking, RS-422, 3G-SDI monitoring, PoE+, GPIO and Tally connectivity in a single controller. Its touchscreen interface, programmable buttons and ergonomic layout significantly improve workflow efficiency for broadcast, streaming and corporate audiovisual productions.
