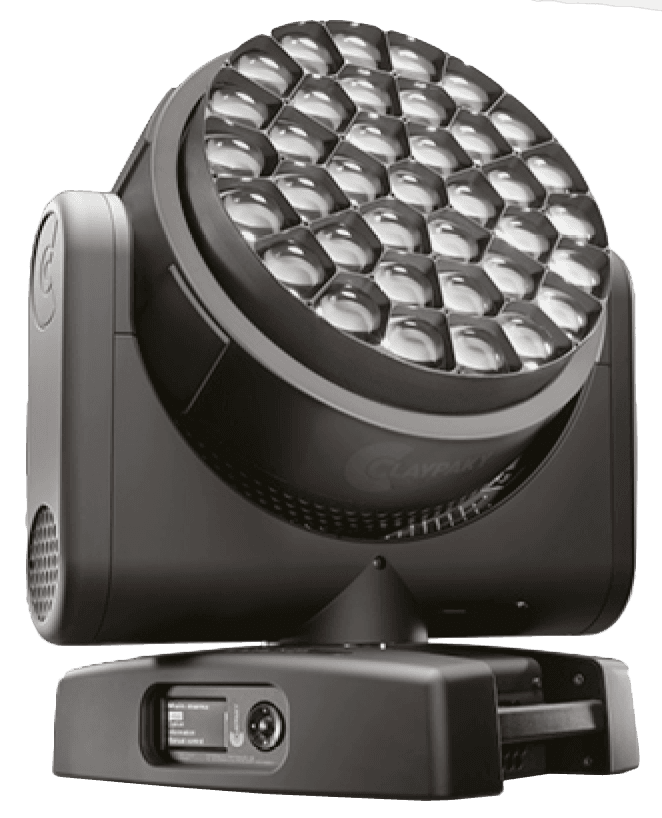

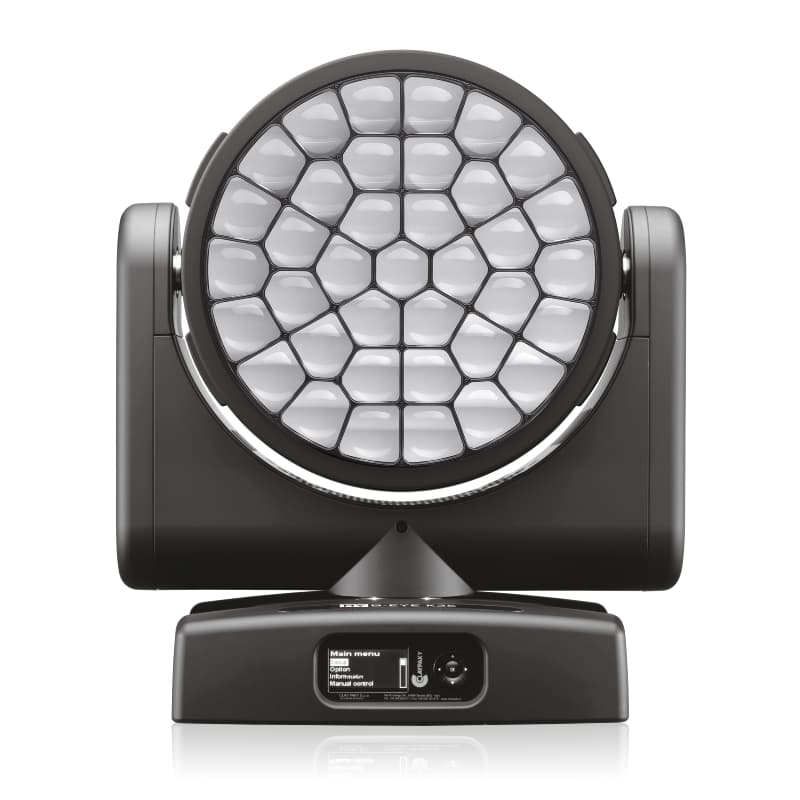

Claypaky | HY B-Eye K25 TEATRO

Professional LED wash, beam and FX moving head

Technical specifications

Technology : LED wash, beam and FX moving head

Light source : 37x 40 W RGBW LEDs

Luminous output : Up to 15000 lumens

DMX channels : Up to 141, depending on the selected operating mode

Control protocols : DMX512, RDM, Art-Net and sACN (via compatible network interfaces)

Colour temperature : Adjustable from 2500 K to 8000 K

Motorised zoom : 4° - 60°

Colour mixing : RGBW with electronic colour calibration

Pixel control : Individual control of all 37 LEDs

Effects : Kaleido effect, graphic effects, video macros, electronic strobe and 16-bit dimming

Pan / Tilt : 540° / 210° (16-bit resolution)

Connectors : PowerCON TRUE1 In/Out, 5-pin XLR DMX/RDM In/Out

IP rating : IP20

Power consumption : 1600 W (maximum)

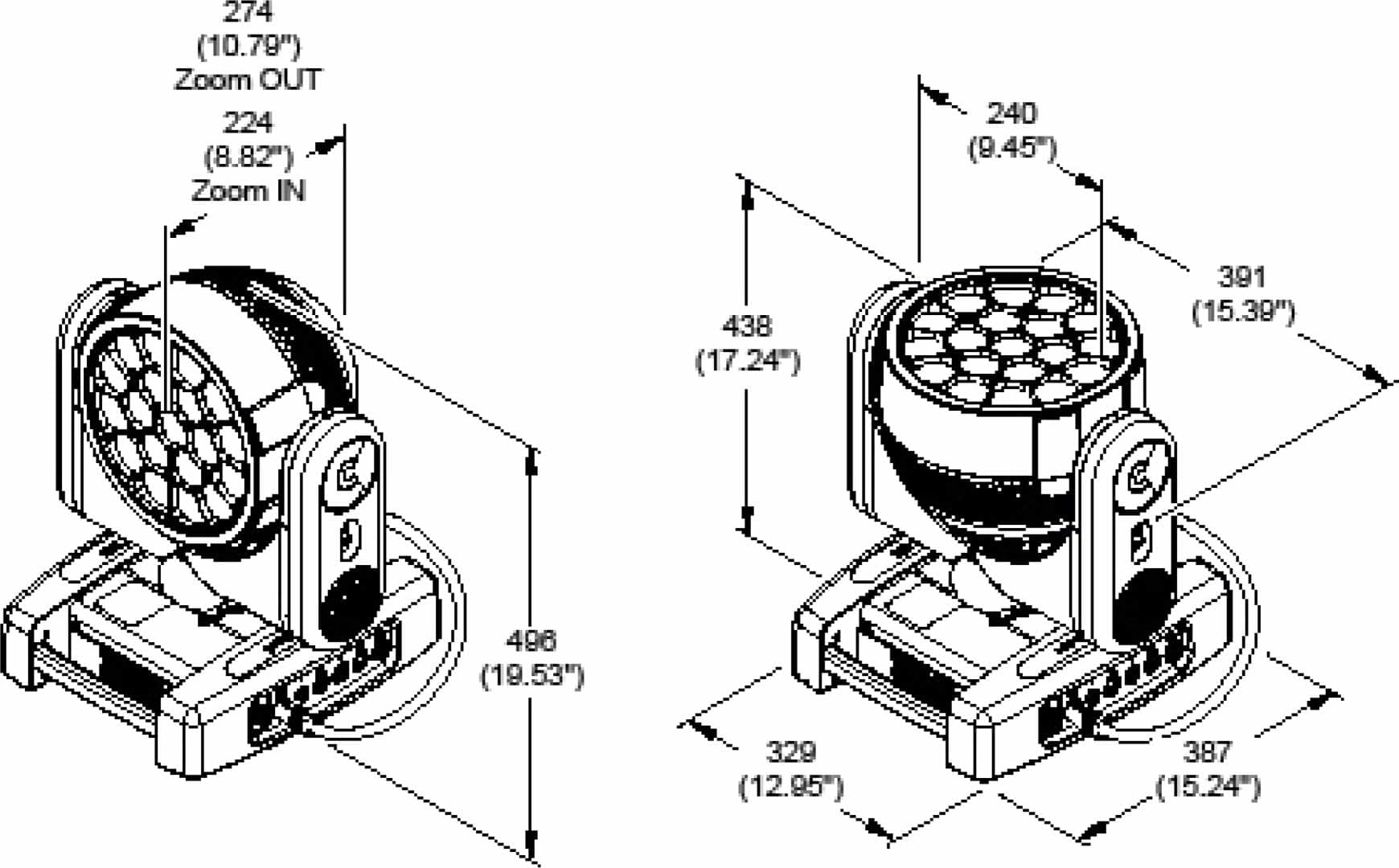

Dimensions W x H x D : 490 x 682 x 338 mm

Net weight : 29.5 kg

Complementary products

Compact lighting control console with integrated multitouch display

Professional digital lighting control console

Alternatives

Professional RGBW LED wash/beam moving head with motorised zoom and pixel control

Frequently asked questions

The Claypaky HY B-Eye K25 combines wash, beam and visual effects in a single fixture. Thanks to its advanced optical system and individual LED control, it can produce both smooth, even washes and complex graphical effects, making it one of the most versatile moving heads available for professional lighting applications.

Each of the 37 RGBW LEDs can be controlled independently, allowing lighting designers to create dynamic effects, animated patterns, video-style macros and sophisticated pixel-mapping sequences directly from the lighting console.

Le système optique motorisé offre un zoom rapide de 4° à 60°, permettant de passer d'un faisceau concentré de type Beam à une large couverture Wash.

Combining exceptional versatility, high output and advanced visual effects, the HY B-Eye K25 is widely used for concert tours, television studios, festivals, corporate events, theatres and live productions requiring both powerful illumination and creative lighting effects.
