MA Lighting | grandMA3 compact

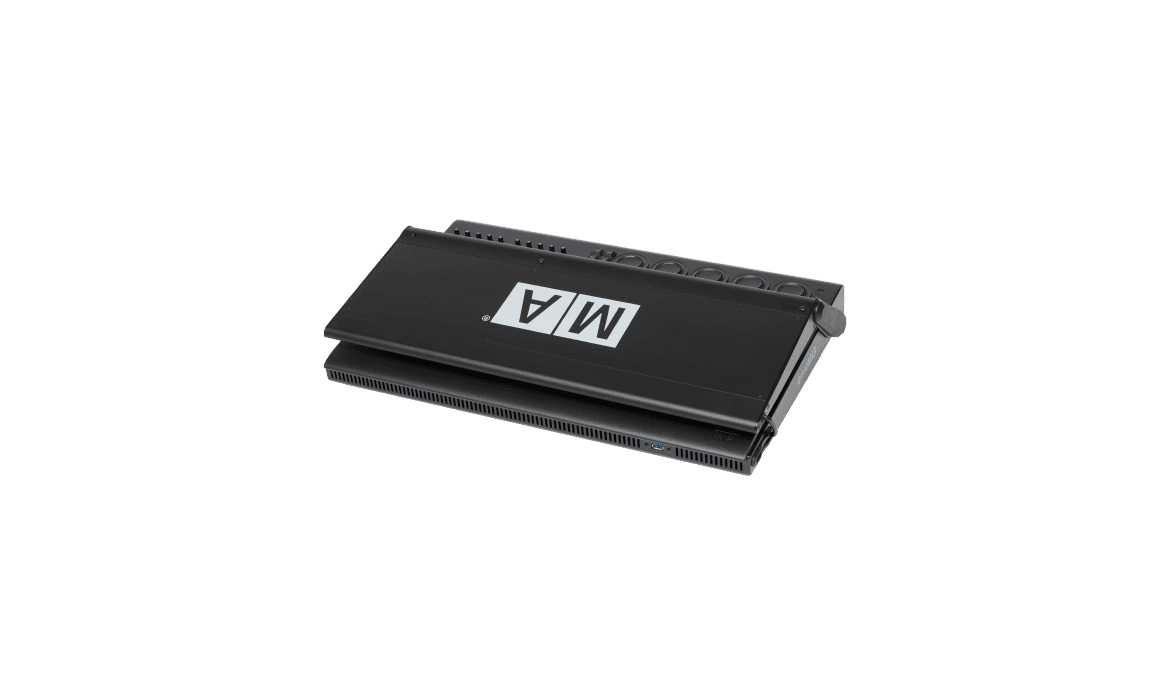

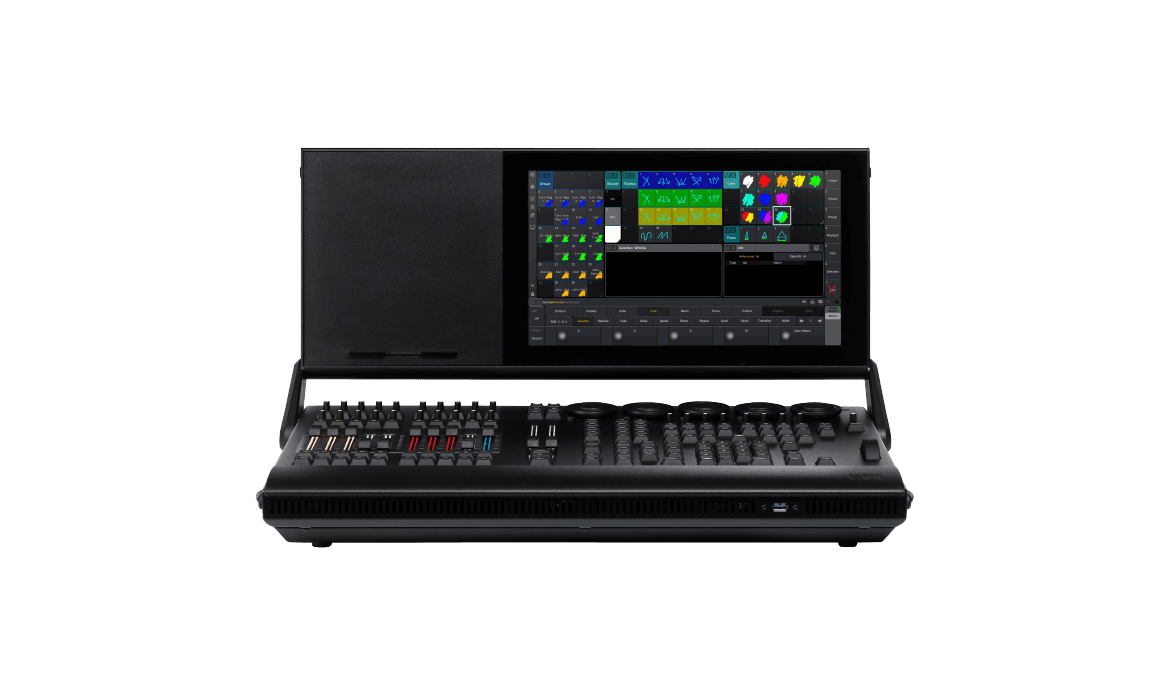

Compact lighting control console with integrated multitouch display

Technical specifications

Technology : grandMA3 digital lighting control console

Control parameters in MA3 mode : 8192 parameters (HTP/LTP)

Control parameters in MA2 mode : 4096 parameters

Physical playbacks : 40

Motorised faders : 10x 60 mm faders + 2x 100 mm A/B faders

Encoders : 29 RGB encoders + 5 dual encoders

Assignable keys : 16 X-keys

Interface : 1 foldable multitouch display

Local outputs : 6 DMX512-A Out (5-pin XLR)

Local inputs : 1 DMX512-A In, 1 LTC, 1 Audio In, MIDI In

Network connections : 3 EtherCON / RJ45 MA-Net3

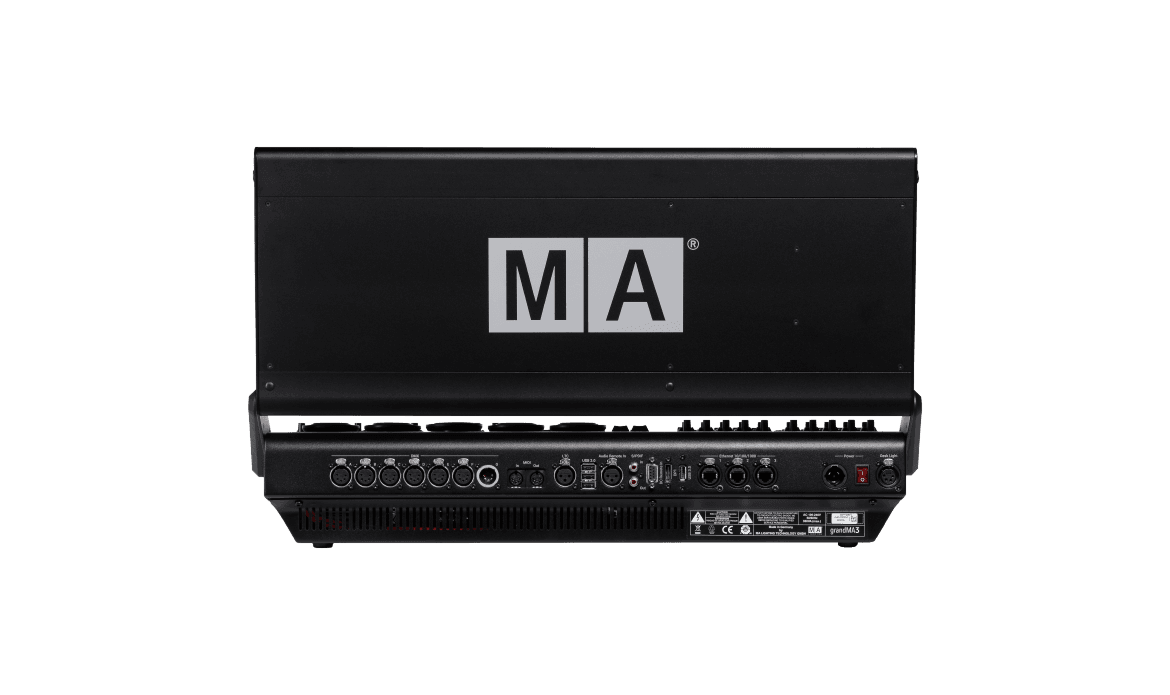

Additional connections : 5 USB ports, DisplayPort, GPI, S/PDIF In/Out

Dimensions W x H x D (closed) : 661 x 160 x 429 mm

Dimensions W x H x D (open) : 661 x 410 x 563 mm

Net weight : 16.0 kg

Alternatives

Professional digital lighting control console

USB Lighting control surface for MagicQ Software

Frequently asked questions

The console provides 16 universes (8192 parameters) as standard and can be expanded up to 488 universes (250000 parameters) using grandMA3 Processing Units. It features six physical DMX outputs and can distribute numerous universes over the MA-Net3 network.

The grandMA3 Compact uses the same software and programming tools as larger grandMA3 consoles, allowing productions of all sizes to be managed with complete show-file compatibility.

Yes. Thanks to its EtherCON interfaces and MA-Net3 protocol, the console can be integrated into redundant or multi-user systems with other consoles, processing units and MA Lighting nodes.

Its compact format and powerful processing capabilities make it suitable for touring productions, TV studios, theatres, corporate events, houses of worship and medium-sized productions requiring advanced lighting control.
