Ayrton | NandoBeam S6

Professional RGBW LED wash/beam moving head with motorised zoom and pixel control

Technical specifications

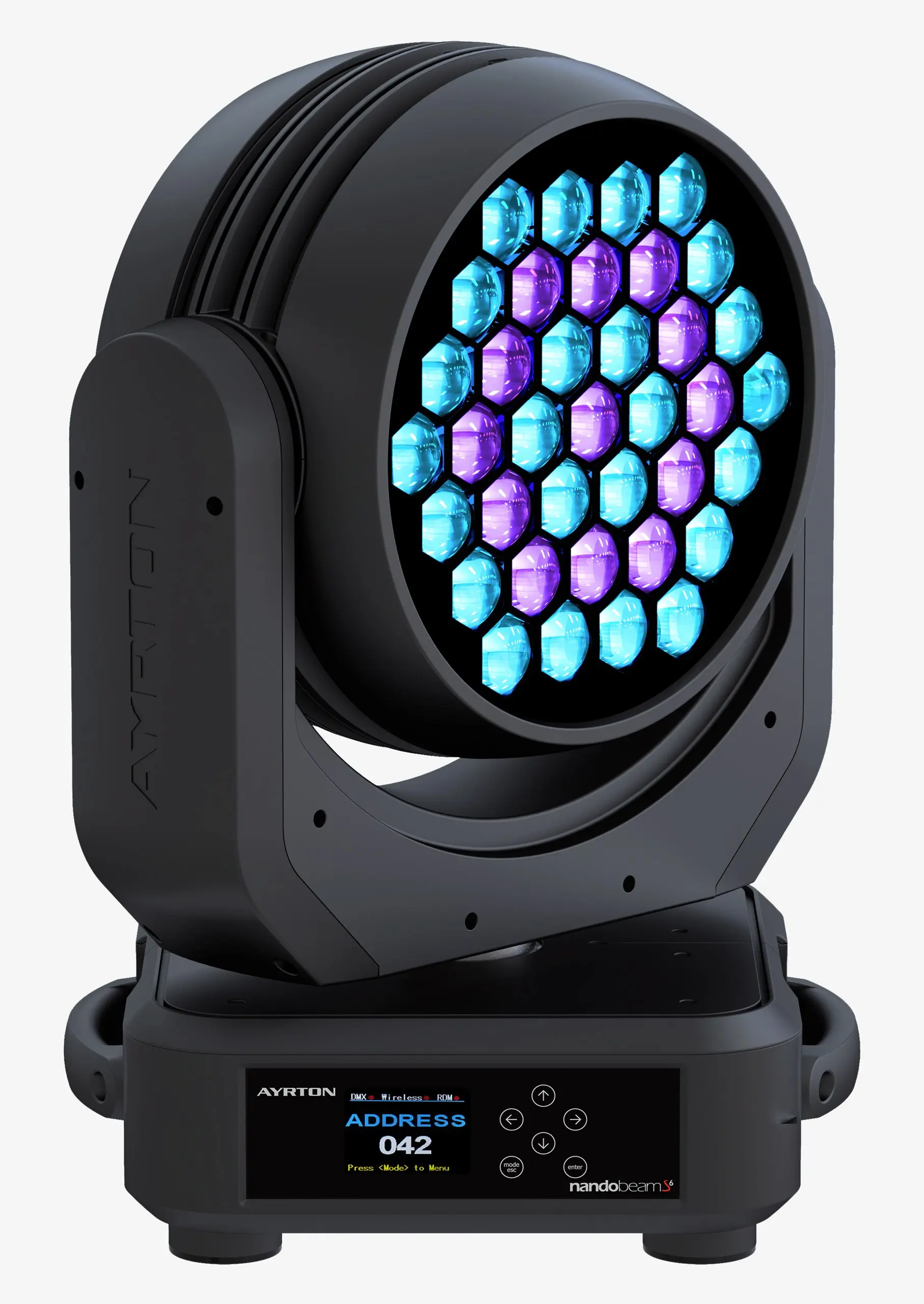

Technology : Motorised LED wash/beam moving head

Light source : 37 RGBW LEDs (500 lumens each)

Luminous output : Up to 6000 lumens

Flicker-free : Yes

DMX channels : 17 / 20 / 32

Protocols : DMX512, RDM, Art-Net, sACN, integrated LumenRadio CRMX

Optics : 5:1 motorised zoom, beam angle 8° - 40°, high-efficiency optical system

Colour system : RGBW mixing, virtual colour wheel, calibrated whites, dynamic colour macros, CRI up to 86

Pixel control : Independent control of the three LED rings and central LED

Effects : Pixel mapping, electronic dimmer (0 - 100%), strobe (1 - 25 flashes/s), integrated graphic effects

Pan / Tilt : 540° / 270° (8 or 16-bit) with automatic repositioning

Connectors : PowerCON TRUE1 In/Out, 5-pin XLR DMX/RDM In/Out, EtherCON RJ45 In/Out

IP rating : IP20

Power consumption : 650 W (max.)

Dimensions W x H x D : 352 x 467 x 267 mm

Net weight : 13.9 kg

Complementary products

Compact lighting control console with integrated multitouch display

Professional digital lighting control console

Alternatives

Professional LED wash, beam and FX moving head

Frequently asked questions

The Ayrton NandoBeam S6 is a professional LED wash/beam moving head renowned for its speed, output and exceptional colour rendering. Equipped with 37 RGBW LEDs, a fast motorised zoom and independent LED control, it produces tight beam effects, smooth washes and dynamic pixel-mapped animations. It is an excellent choice for concerts, theatres, TV studios, corporate events and professional audiovisual productions.

The NandoBeam S6 combines a high-efficiency optical system with fast zoom capabilities and advanced LED control. In Expanded Full Colour mode, the three LED rings and central LED can be controlled independently, enabling sophisticated pixel mapping, animated effects and integrated colour macros. This versatility allows a single fixture to perform as a beam, wash and light effects.

Yes. The NandoBeam S6 features flicker-free LED sources, making it fully compatible with broadcast cameras and professional video production. Its heat-pipe cooling system ensures quiet operation, while multiple fan modes allow noise levels to be adapted for TV studios, theatres and other noise-sensitive environments.

The fixture supports DMX512, RDM, Art-Net and sACN protocols, while the integrated LumenRadio CRMX receiver enables wireless DMX control. Three DMX personalities (17, 20 or 32 channels) provide flexible control for productions of any scale.
