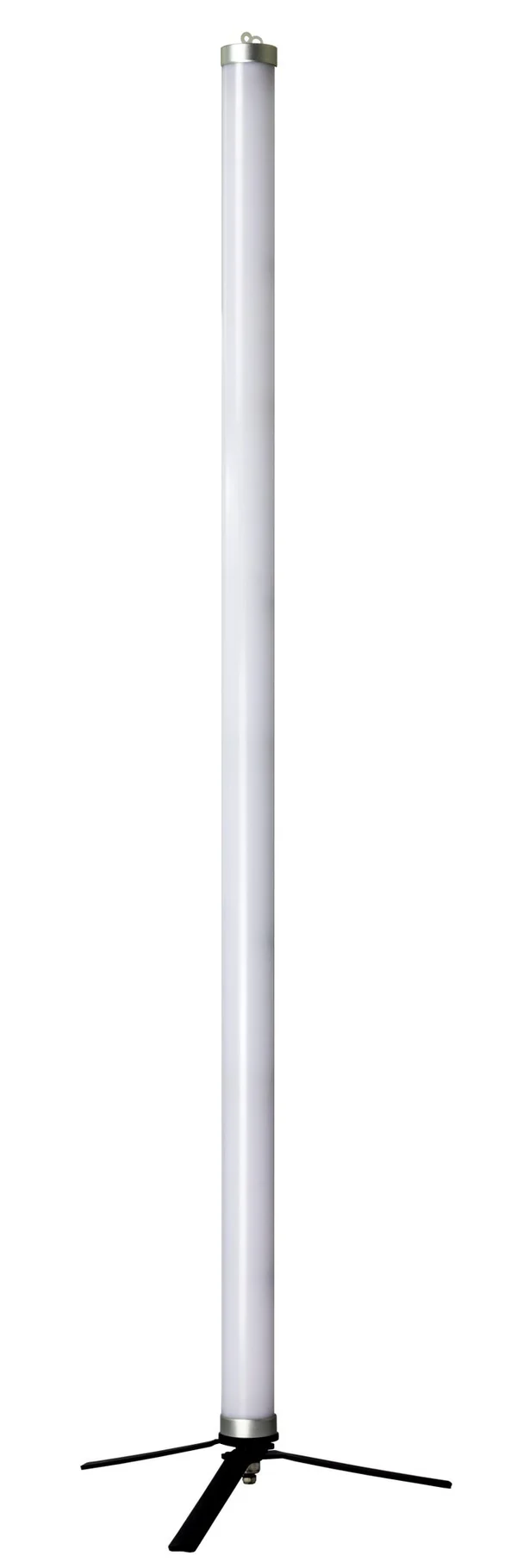

Astera | AX1 PixelTube

Professional RGBW LED pixel tube for stage and event lighting

Technical specifications

Technology : RGBW LED pixel tube with individual pixel control

Light source : RGBW LEDs

Total LED power : 28 W

Luminous output : Up to 695 lumens

Colour rendering : CRI (Ra) / TLCI up to 88 (3200 K - 6500 K)

Pixels : 16 individually controllable pixels

Beam angle / Field angle : 120° / 180°

Built-in effects : Electronic dimming, 0–25 Hz strobe and pixel mapping

Wireless protocols : CRMX and UHF

Maximum wireless range : Up to 300 m (CRMX/UHF)

Battery runtime : Up to 20 hours

Charging time : Approximately 7 hours

IP rating : IP65 (with silicone end caps fitted)

Dimensions L x Dia. : 1035 x 43 mm

Net weight : 1.0 kg

Complementary products

CRMX wireless DMX transceiver with AsteraApp interface

Compact lighting control console with integrated multitouch display

Professional digital lighting control console

Alternatives

1-metre battery-powered RGBMintAmber LED tube

Frequently asked questions

The Astera AX1 PixelTube is a professional RGBW LED tube designed for live events, stage productions and audiovisual applications. Featuring 16 individually controllable pixels, an integrated rechargeable battery, wireless connectivity and an IP65 rating, it enables the rapid creation of immersive lighting designs, pixel-mapping effects and dynamic visual environments for both indoor and outdoor use.

Unlike traditional LED tubes, the AX1 PixelTube operates completely wirelessly thanks to its built-in battery and wireless control capabilities. Each tube features 16 independent pixel zones, allowing designers to create dynamic animations, smooth gradients and synchronised lighting effects without the need for wired DMX. Its rugged, weather-resistant construction also makes it suitable for a wide range of scenic installations.

The AX1 PixelTube supports CRMX, UHF and infrared control using the ARC1 remote. The BTB (Bluetooth Bridge) version can also act as a Bluetooth gateway for compatible Astera fixtures, allowing direct control from the AsteraApp without always requiring an AsteraBox.

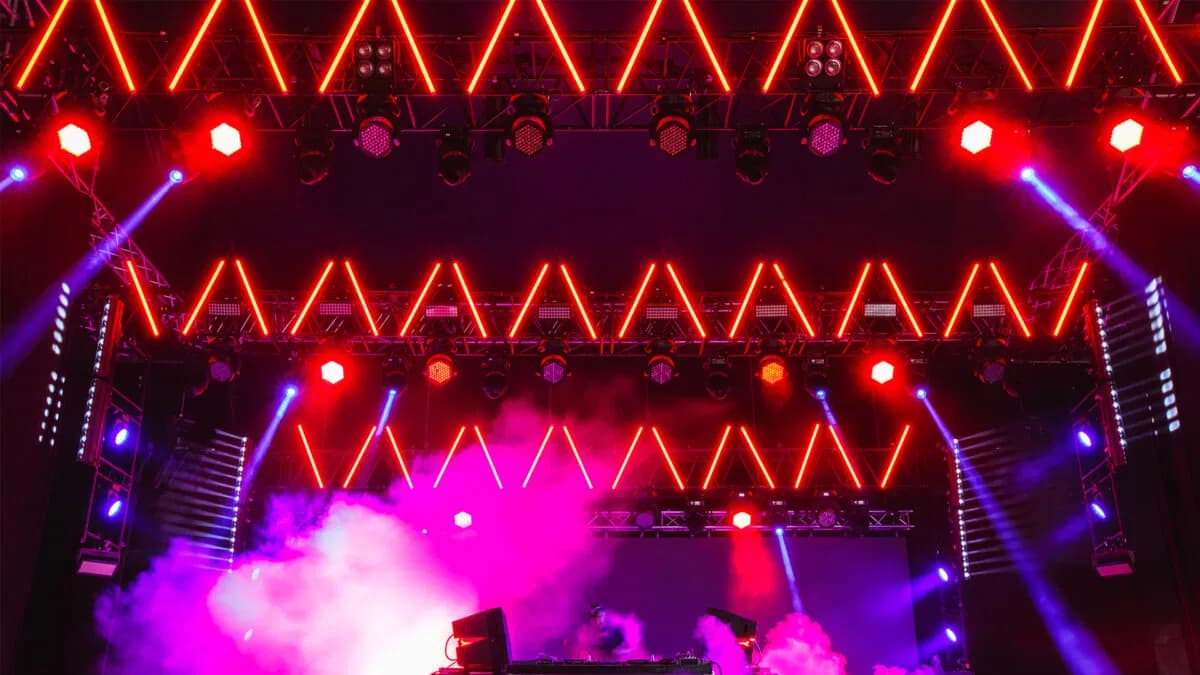

The Astera AX1 PixelTube is widely used for concerts, live performances, television studios, film productions, trade shows, corporate events, fashion shows and immersive lighting installations. Its compact design, battery-powered operation and versatile mounting options make it easy to integrate into trusses, stage sets and temporary lighting structures.
