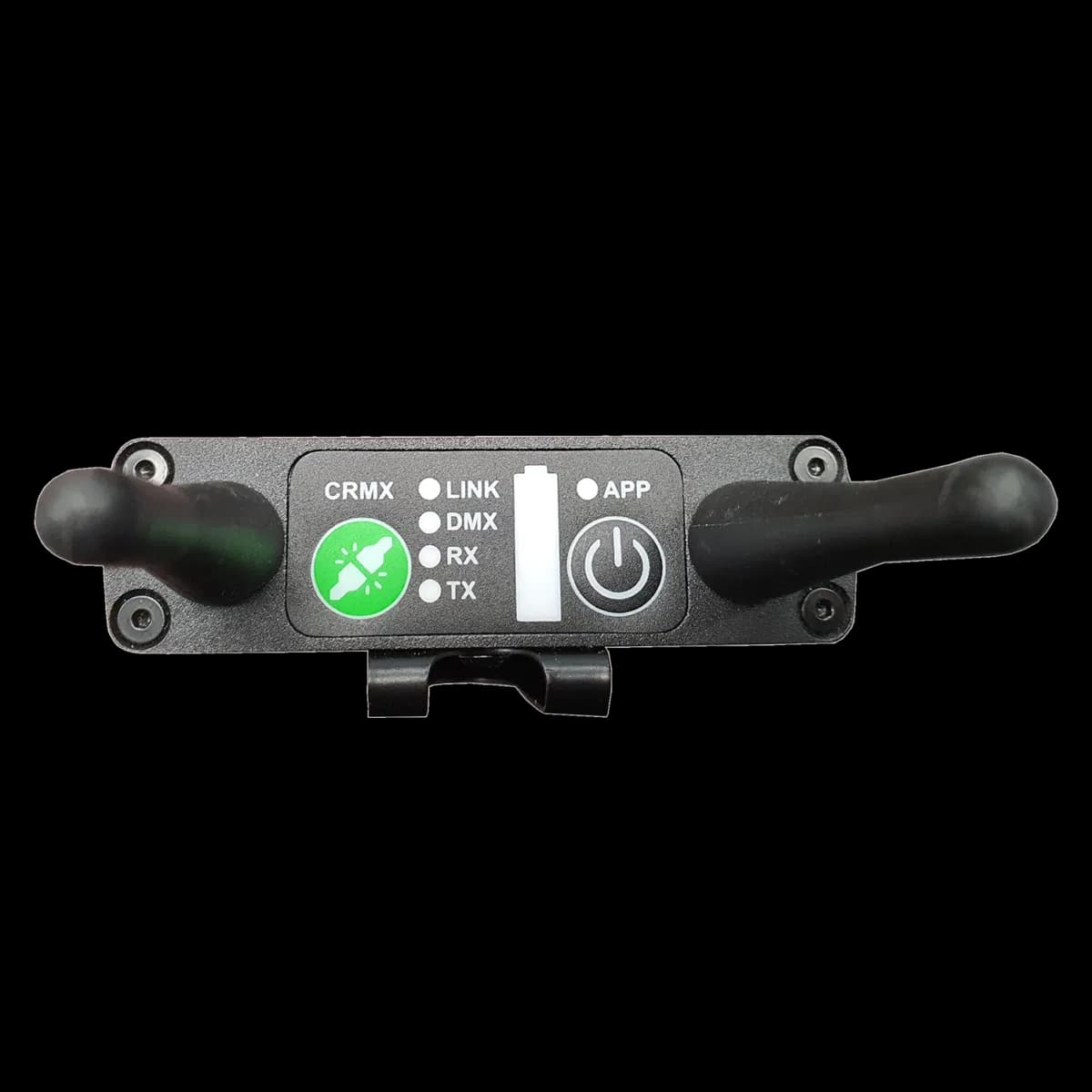

Astera | ART7 AsteraBox
CRMX wireless DMX transceiver with AsteraApp interface
Technical specifications
Technology : Astera control interface / Wireless DMX transceiver
Compatibility : Astera lighting fixtures compatible with AsteraApp and CRMX
Wireless protocols : CRMX, UHF, Bluetooth 4.0
Functions : DMX transmitter, DMX receiver and Bluetooth Bridge
Maximum range : Up to 300 m (CRMX / UHF) and 3.0 m via Bluetooth
DMX universes : 1 wireless DMX universe
Battery life : Up to 72 hours (AsteraApp) / 8 - 16 hours (CRMX)
Charging time : 8 hours
Local input : 1 DMX input via 3.5 mm jack
Connectivity : Micro-USB for power and charging
Built-in microphone : Yes
Protection rating : IP20
Dimensions W x H x D : 78 x 146 x 30 mm
Net weight : 230 g
Complementary products
Frequently asked questions
The ART7 acts as an interface between Astera lighting fixtures, the AsteraApp and a DMX controller. It can operate as a wireless DMX transmitter or receiver using LumenRadio CRMX technology.
In CRMX or UHF mode, the ART7 can achieve a range of up to 300 metres, allowing wireless DMX lighting systems to be deployed over large areas without DMX cabling.
The AsteraBox supports UHF, CRMX and Bluetooth. It also provides a Bluetooth Bridge function between the AsteraApp and compatible fixtures.
Through the AsteraApp, users can monitor battery status, radio signal quality, DMX addresses, fixture groups and operating parameters for each connected device.
