Shure | ADTDE-G56
Axient Digital PSM dual transmitter - 470-636 MHz
Technical specifications
Technology : Axient Digital PSM dual in-ear monitor transmitter
Carrier frequency range : G56 (470-636 MHz)
Transmission : Digital Spatial Diversity
Latency : 1.29 ms (FM analog input); < 2.8 ms (Digital input)
Frequency response : 20 - 15000 Hz
Digital signal-to-Noise ratio : 110 dB
Output impedance : 50 ohms
Input impedance : 32.59 kΩ
Switchable nominal input level : +4 dBu or -10 dBV
Network connections : 2 Control network ports (Ctrl 1 and Ctrl 2) + 2 Dante network ports (Primary and Secondary)

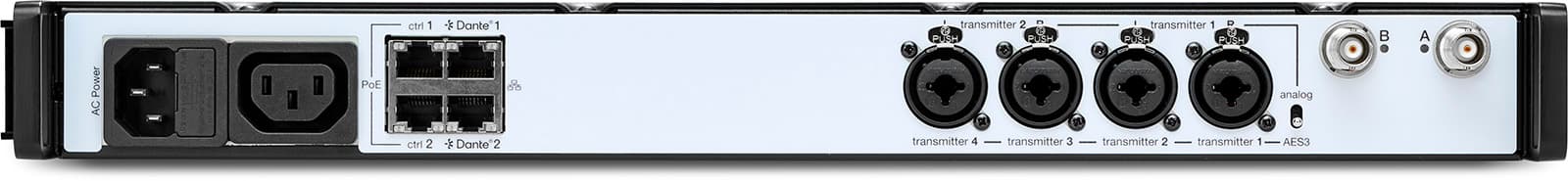

Local inputs : 4 XLR/TRS 6.35 mm combo inputs with analog or digital AES3 switch
Local outputs : N/A
Dimensions W x H x D : 482 x 44 x 385 mm
Weight without accessories : 4.7 kg
Complementary products
Alternatives
Frequently asked questions
This dual transmitter is designed for Axient Digital PSM in-ear monitoring systems and allows two high-quality audio channels to be transmitted simultaneously.
It provides excellent spectral efficiency, strong RF performance and high-quality audio suitable for demanding professional productions.
It allows two separate monitor mixes to be transmitted while benefiting from the advanced RF performance of the Axient Digital PSM system, particularly in high-density frequency environments.
It is designed for tours, festivals, television productions and events requiring high-performance professional wireless monitoring systems in high-density RF environments.
