Shure | P10TE-G10E

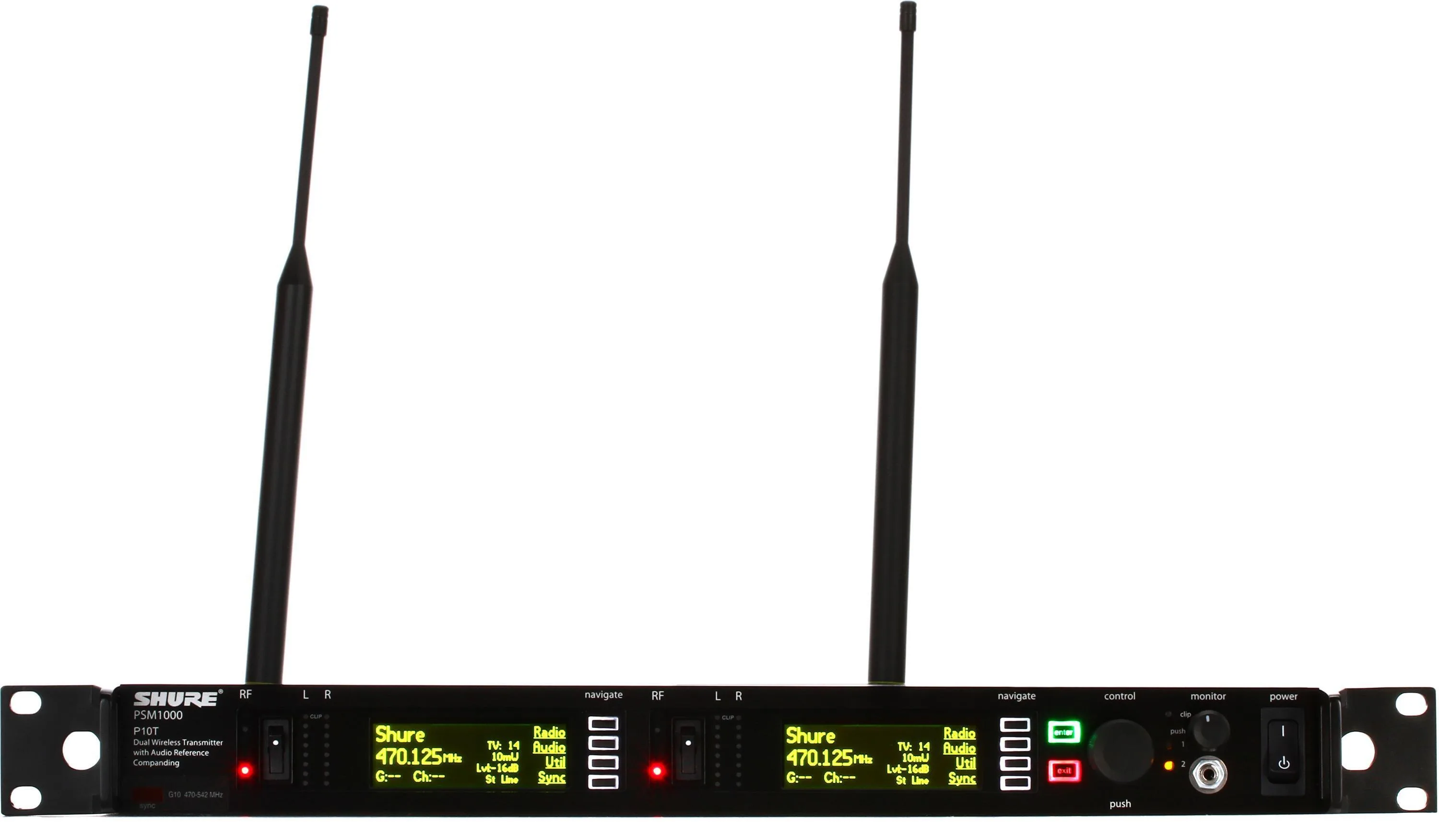

P10T wireless transmitter (470–542 MHz)
Technical specifications
Technology : PSM1000 stereo in-ear monitor transmitter
RF carrier frequency range : G10E (470–542 MHz)
Approximate range : 90 m
Frequency response : 35 - 15000 Hz
Signal-to-Noise ratio : 90 dB(A)
Switchable RF output power : 10 or 50 mW
Output impedance : 50 ohms
Input impedance : 70.2 kΩ (actual)
Switchable nominal input level : +4 dBu or -10 dBV
Local inputs : 4 XLR/6.35 mm TRS combo
Local outputs : 4x 6.35 mm TRS Loop
Dimensions W × H × D : 483 x 44 x 343 mm
Weight (without accessories) : 4.7 kg
Complementary products
Alternatives
Frequently asked questions

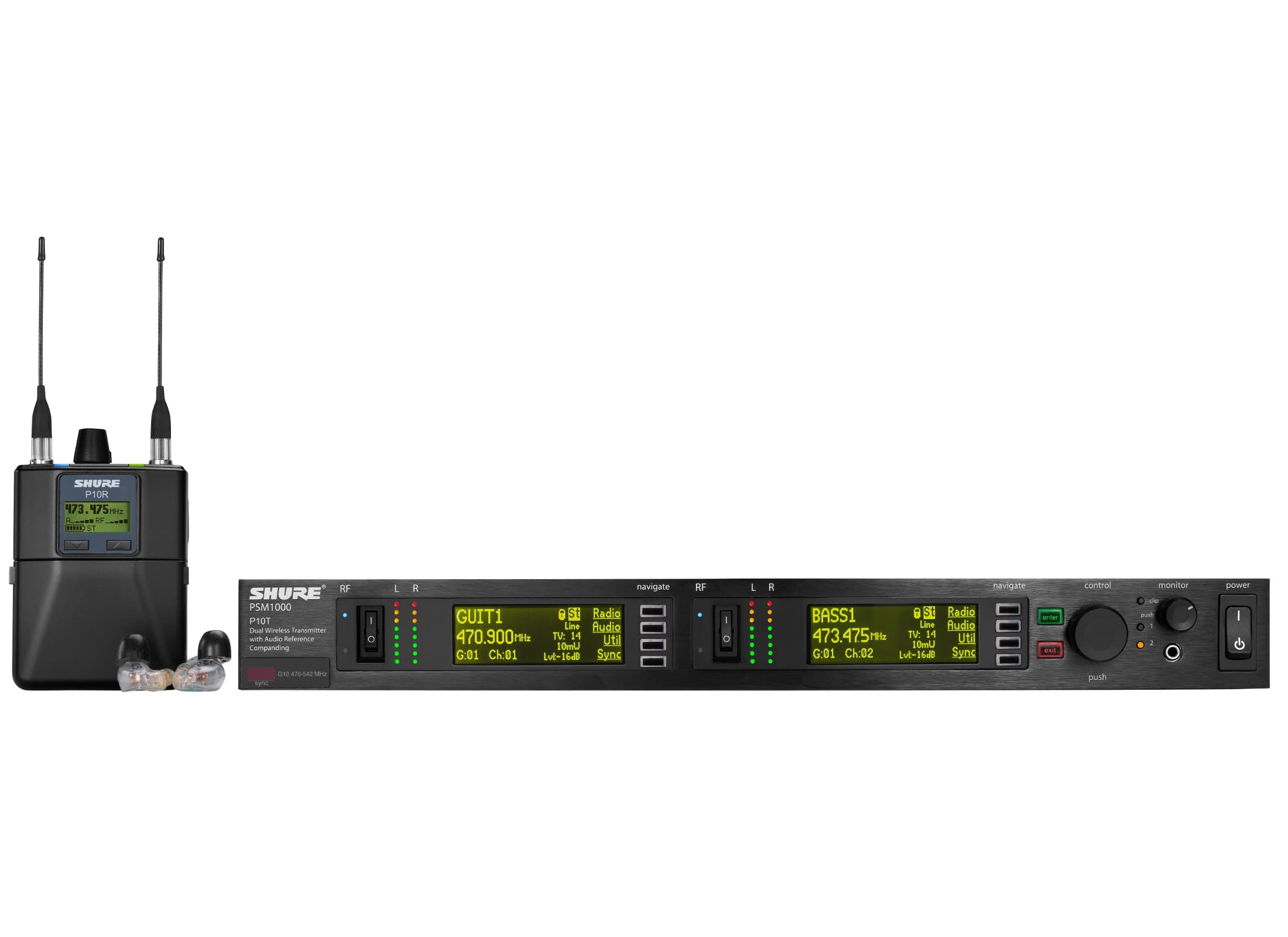

This transmitter is designed for PSM1000 personal monitoring systems and wirelessly transmits an audio mix to receivers used by artists or technicians.
It provides freedom of movement while delivering stable, precise monitoring with low background noise.
Yes. It is designed for tours, festivals, live shows and events requiring advanced RF frequency management.
This version operates in the G10E band from 470 to 542 MHz, subject to applicable regulations.
