Allen & Heath | DX012
Digital stagebox – 0 in / 12 out expansion
Technical specifications
Technology : Ethernet digital stagebox expansion
DX compatibility : All dLive, SQ, Qu, Avantis and AHM ranges
Operation mode : Cascade or redundancy
Sample rate : 96 kHz
AES3 output sample rates : Switchable 44.1 kHz, 48.0 kHz, 88.2 kHz and 96.0 kHz
Output impedance : < 60 ohms
Nominal output level : +4 dBu
Maximum output level : +22 dBu
Local inputs : 0

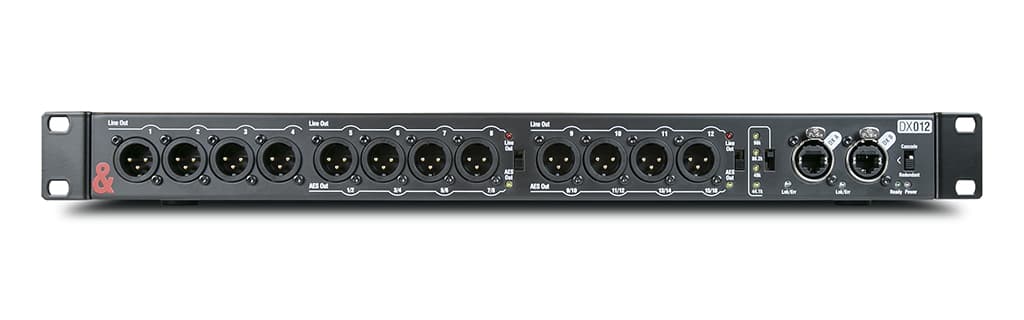

Local outputs : 12 analogue XLR, or 8 analogue XLR + 4 AES3 XLR, or 4 analogue XLR + 8 AES3 XLR
Network connections : 1 DX A port + 1 DX B port

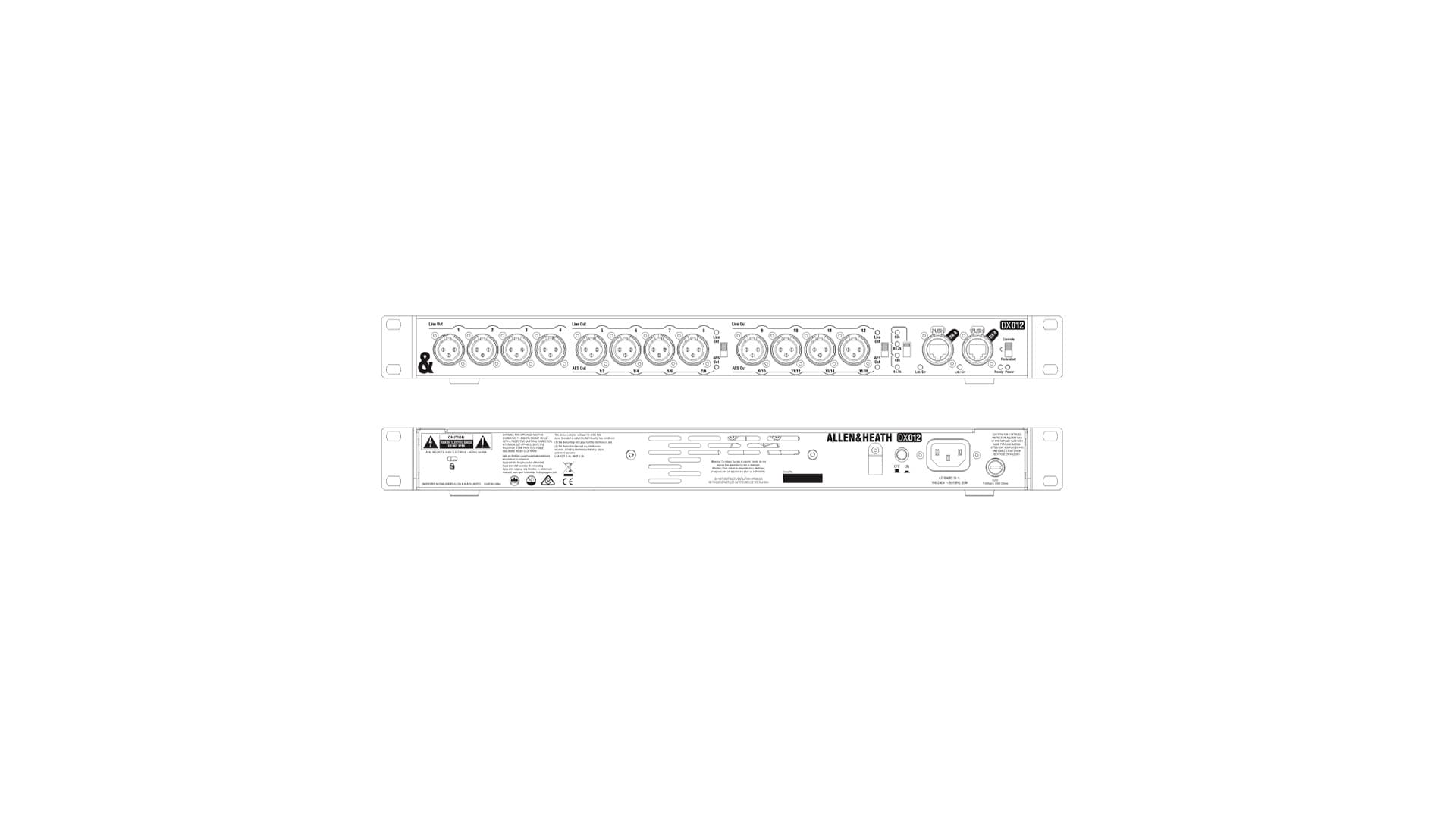

Dimensions W x H x D : 482.6 × 214.7 × 48.2 mm
Weight : 2.95 kg
Complementary products
Alternatives
Frequently asked questions
The DX012 is an output expansion unit designed for compatible Allen & Heath systems, allowing audio connections to be brought closer to stage equipment.
The DX012 provides 12 analogue XLR outputs or a combination of analogue and AES3 outputs, offering extensive flexibility for audio distribution and stage monitoring.
It significantly reduces analogue cabling, improves installation organisation and provides reliable digital audio transmission.
It is designed to work with compatible Allen & Heath DX Hub, dLive, Avantis, QU series (from 2025) and SQ systems.
