Allen & Heath | GX4816
48-in / 16-out digital stagebox with analogue XLR connections
Technical specifications
Technology : Gigabit Ethernet stagebox for GigaACE or SLink connectivity
GX compatibility (128 x 128) : GigaACE I/O module and SLink ports on SQ, Qu, Avantis and AHM ranges
DX compatibility (32 x 32) : DX32, or 2 DX168, DX164-W, DX012 and ME Personal Mixing System
Sample rate : 96 kHz
Input impedance : > 4 kΩ without Pad and > 10 kΩ with Pad
Microphone preamps with phantom power LED : 48

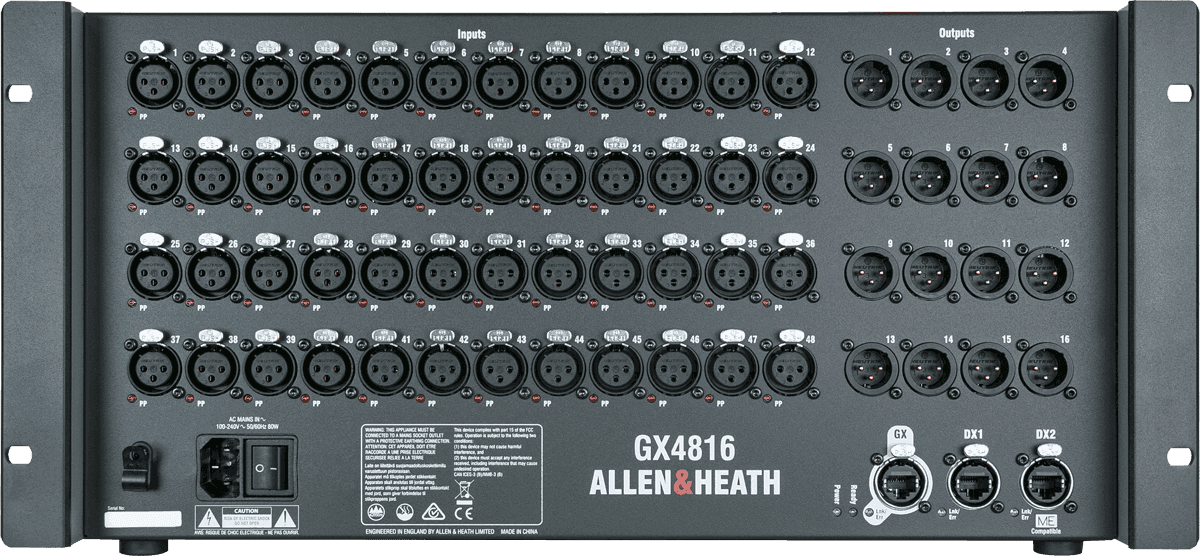

Local inputs : 48 XLR Mic/Line
Local outputs : 16 XLR Line
Networks : 1 GX port + 1 DX1 port + 1 DX2 port
Dimensions W x H x D : 481.6 x 229.5 x 255.0 mm
Weight : 8.0 kg
Complementary products
Alternatives
Frequently asked questions
The GX4816 is a digital stagebox that allows audio inputs and outputs to be positioned closer to the sources on stage.
It features 48 microphone preamps and 16 XLR outputs to meet the requirements of medium- and large-scale productions.
It reduces analogue cabling, simplifies installations and ensures high-quality digital audio signal transmission.
It is designed to work with compatible Allen & Heath GX and DX systems, including through the manufacturer's proprietary audio protocols.
