High-performance professional haze generator from the MAX Series

MDG | MAX 3000 APS

High-performance professional haze generator from the MAX Series

Technical specifications

Technology : High-performance haze generator
System : APS™ (Automatic Purging System)
Maximum output : Up to 85 m³/min continuous haze
Particle size : 0.5 - 0.7 microns
Fluid tank capacity : 2.5 L
Fluid consumption : Approx. 1 L/h at 2.76 bar (40 psi)
Gas type : CO₂ or N₂
Gas consumption : Approx. 0.97 kg/h at 2.76 bar (40 psi)
Warm-up time : Up to 8 minutes
Control : DMX, wired remote control and dedicated interface
Operating noise : Extremely quiet
Haze colour : Pure white
Power consumption : 715 W
Dimensions W x H x D : 610 x 180 x 300 mm
Net weight : 20.0 kg


Complementary products

Compact lighting control console with integrated multitouch displayProfessional digital lighting control consoleUSB Lighting control surface for MagicQ Software

Frequently asked questions

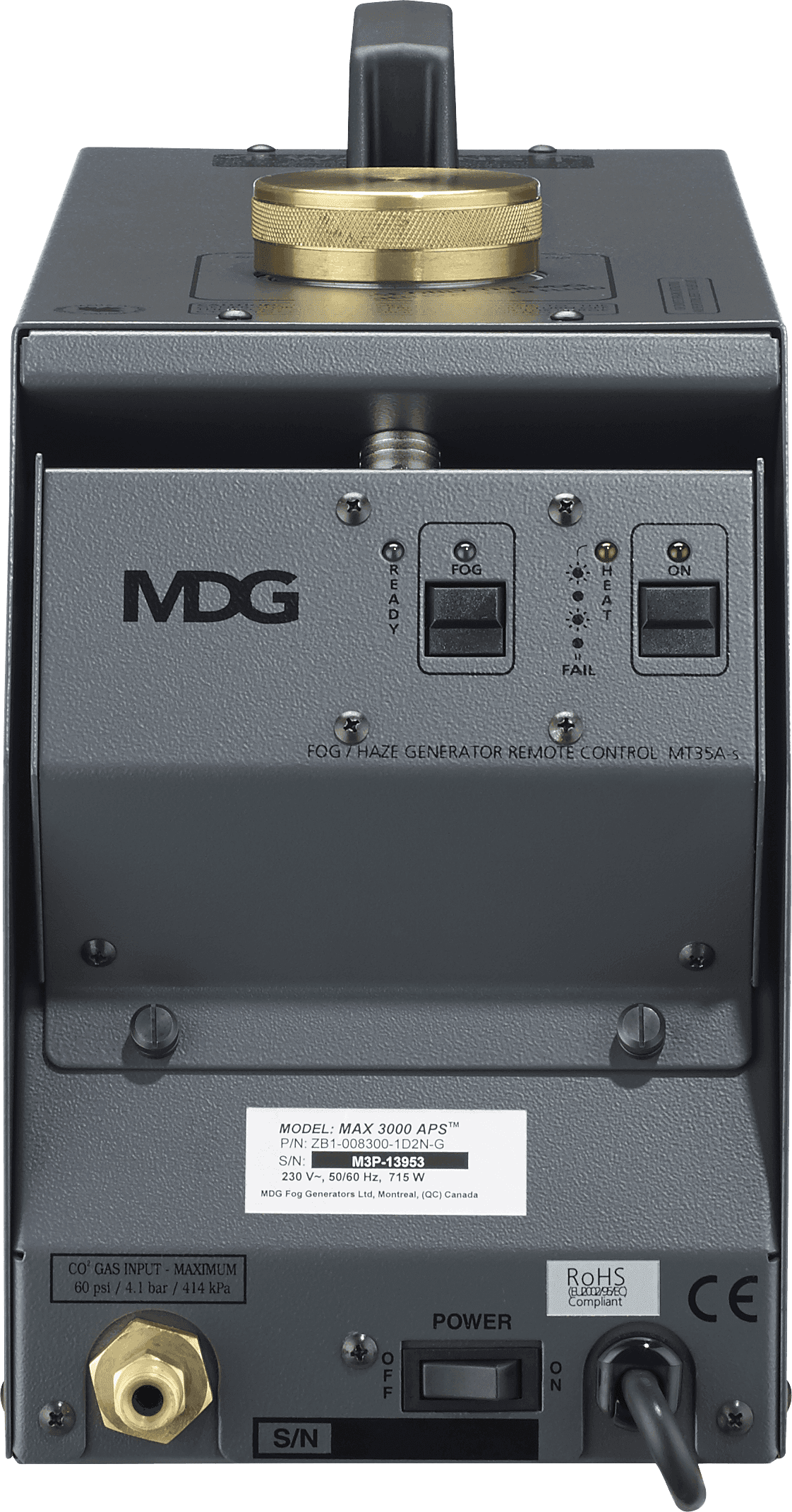

The MDG MAX 3000 APS is a professional haze generator designed to produce an ultra-fine, dry and evenly distributed haze that enhances lighting beams without saturating the air. Featuring the APS™ (Automatic Purging System), it ensures exceptional reliability while preventing internal residue build-up, even during extended touring schedules and demanding live productions.

Unlike a traditional smoke machine that produces dense, short-lived fog, the MAX 3000 APS generates an ultra-fine haze with particle sizes between 0.5 and 0.7 microns. The haze remains suspended for extended periods without settling, making it ideal for concerts, television studios and corporate events where consistent beam visibility is essential.

The MAX 3000 APS is recognised for its continuous, silent and odour-free haze output, delivering high performance without distracting performers or audiences. Its consistent haze quality makes it a trusted industry standard for professional stage productions, live events and broadcast environments.

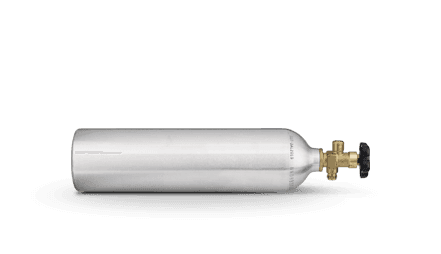

The MAX 3000 APS requires mains power, genuine MDG fluid and either CO₂ or nitrogen (N₂) gas to operate. It supports DMX control as well as wired remote and dedicated interface operation, allowing seamless integration into professional lighting control systems.
