Indoor modular LED panel with 2.6 mm pixel pitch

Unilumin | Upad IV 2.6

Indoor modular LED panel with 2.6 mm pixel pitch

Technical specifications

Technology : Indoor black SMD 3-in-1 LED panel
Pixel pitch : 2.6 mm
Resolution per panel : 192 x 192 pixels
Panel area : 0.25 m²
Pixel density : 147456 pixels/m²
Brightness : 1200 cd/m²
Contrast ratio : 5000:1
Viewing angle : 140° Horizontal / 120° Vertical
Refresh rate : 3840 Hz
Colour temperature : Adjustable from 2000 K to 9300 K
Ingress protection : IP30 (Indoor use)
Power consumption per panel : 120 W (max.) / 40 W (Typical)
Dimensions W x H x D: : 500.0 x 500.0 x 70.1 mm
Net weight : 6.3 kg



Complementary products

4K UHD LED Display controller for professional LED wallsProfessional 4K LED Video Processor

Alternatives

Premium Indoor LED Panel for Rental & Fixed Installation75" UHD Professional Display for Presentations and Digital Signage20000-lumen professional laser projector

Frequently asked questions

The Unilumin Upad IV 2.6 delivers exceptional image quality thanks to its 2.6 mm pixel pitch, high brightness and excellent contrast ratio. It is an ideal solution for conferences, trade shows, television studios, product launches and corporate events requiring high-definition visual performance.

With a 2.6 mm pixel pitch, the recommended viewing distance typically starts at approximately 2.5 to 3 metres. This provides excellent image quality while maintaining a cost-effective solution for professional event productions.

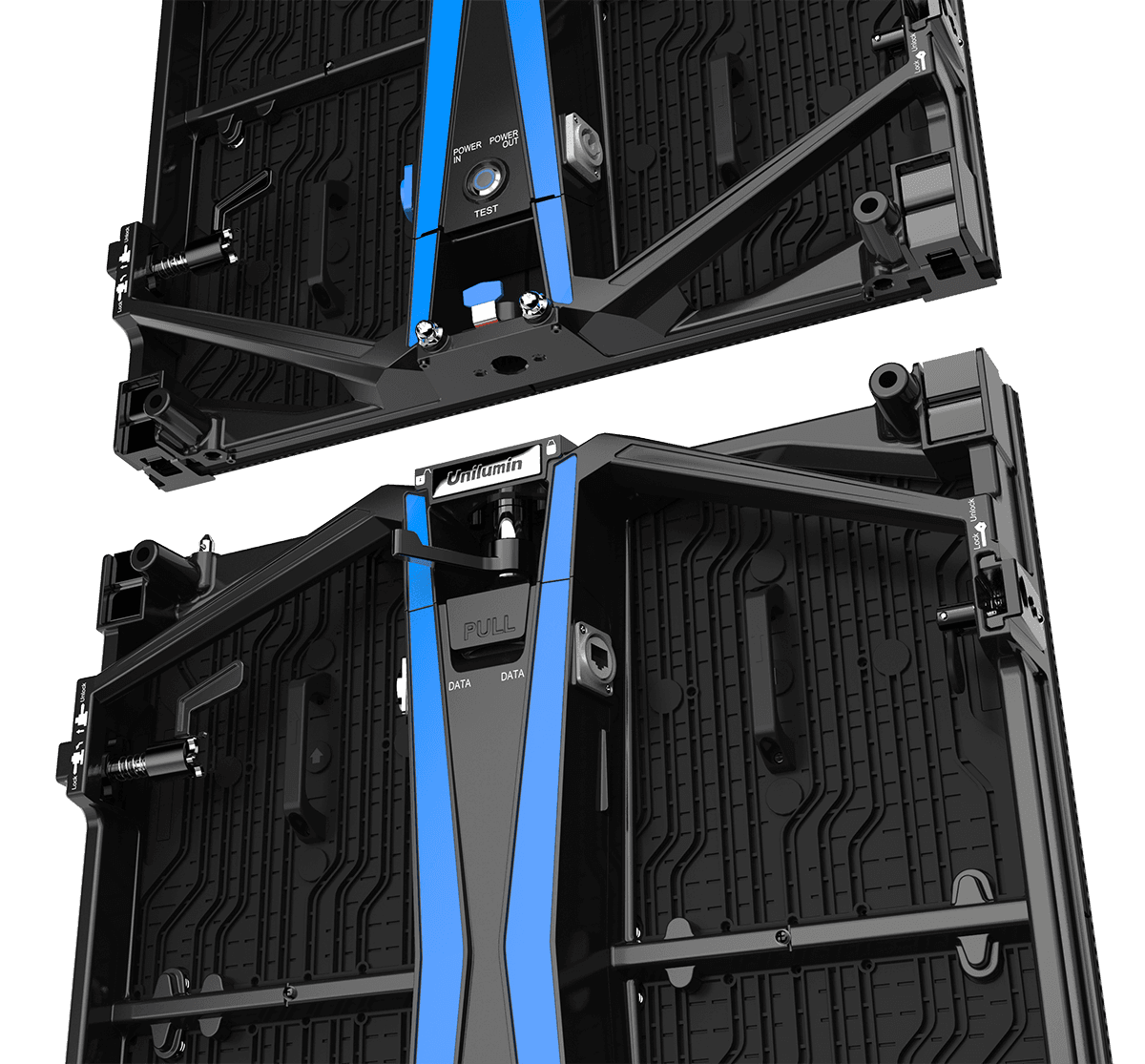

Thanks to their ultra-light magnesium cabinet, Auto-Lock system and front and rear maintenance access, Upad IV panels allow for faster installation, easier transportation and simplified servicing during live events.

Unlike a projector, an LED wall maintains outstanding brightness regardless of ambient lighting conditions. It requires no projection distance, offers superior contrast and delivers excellent readability for conferences, exhibitions, live productions and audiovisual events.
