Shure | AD2 / SM58

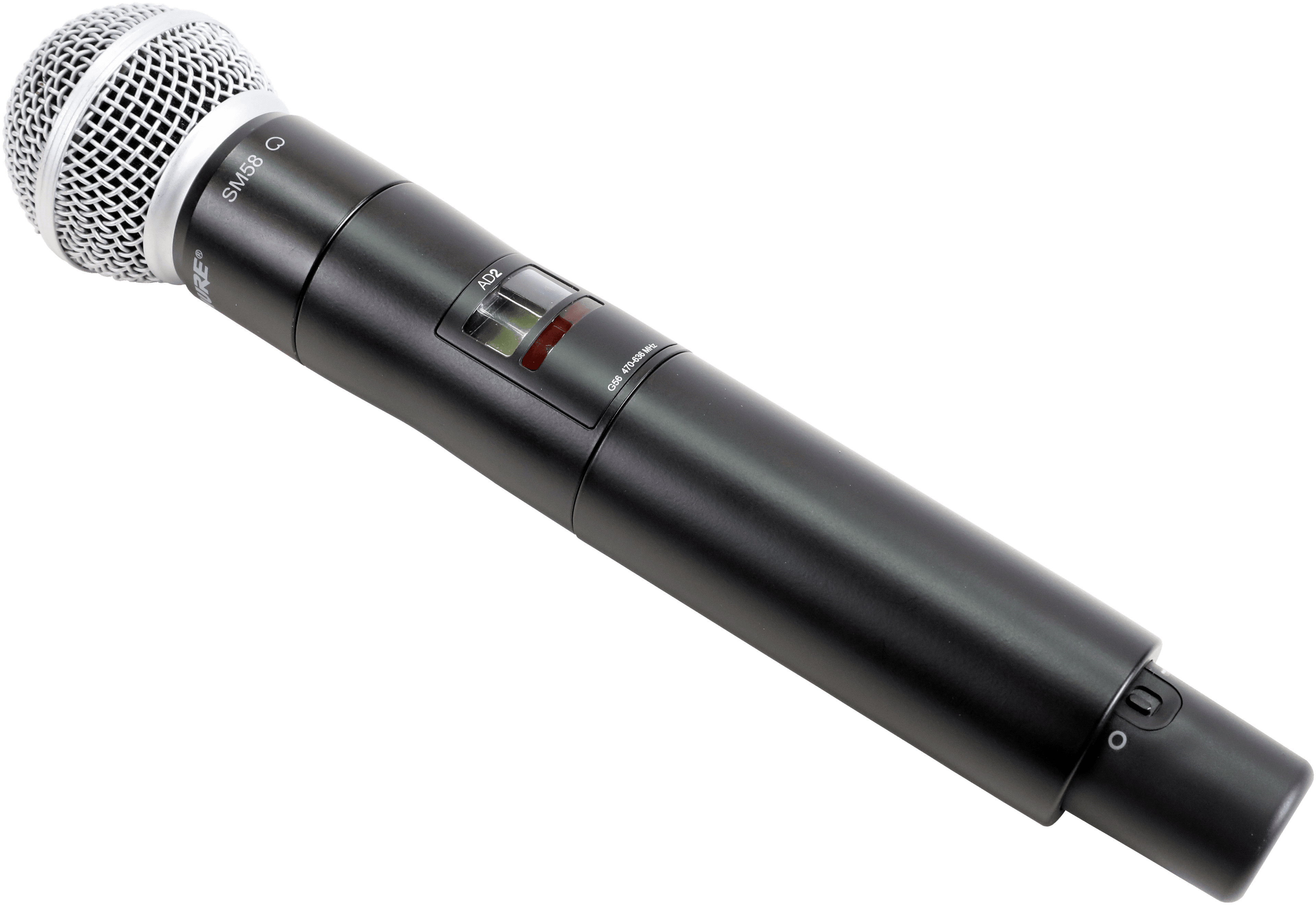

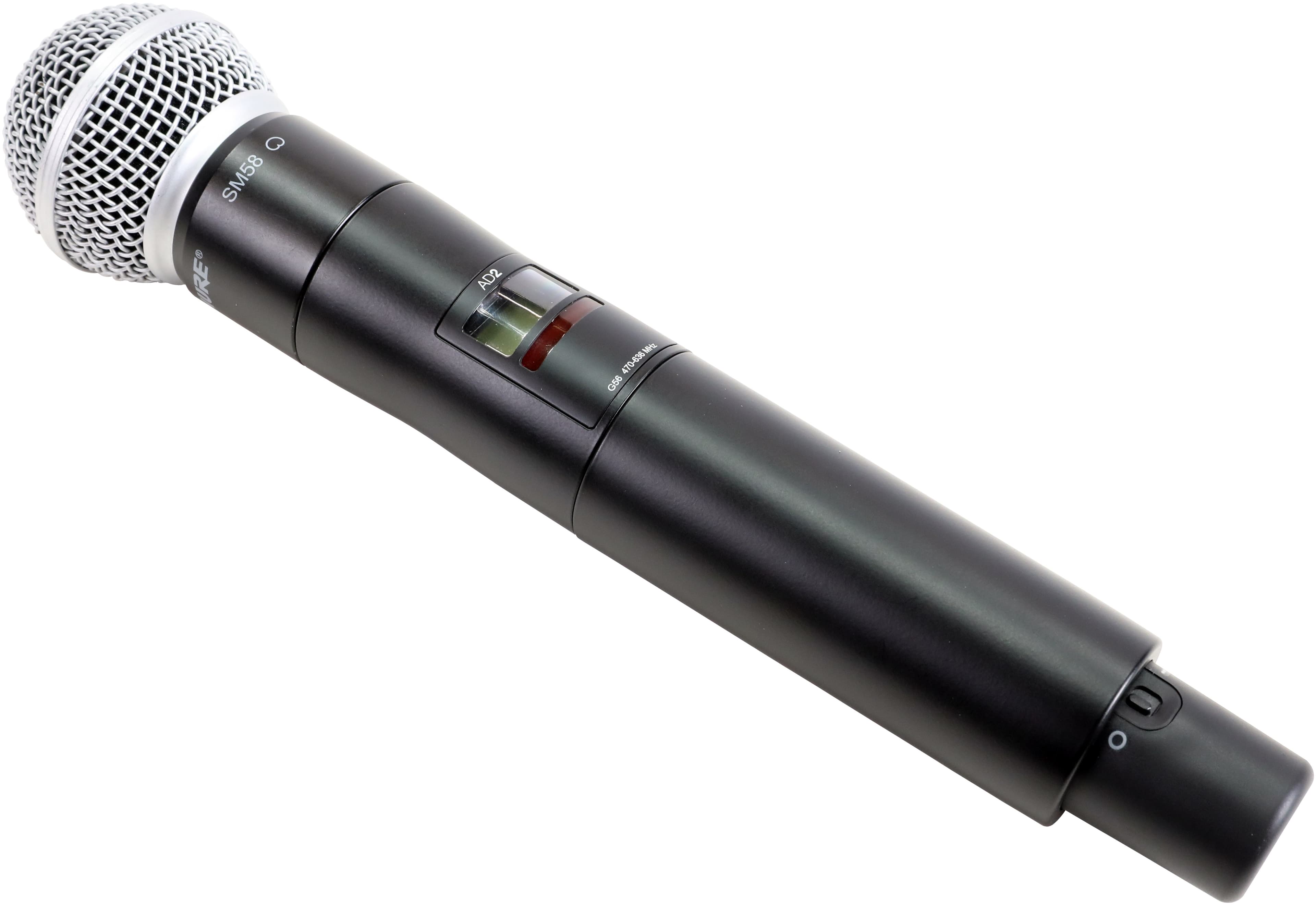

Axient Digital AD2 handheld transmitter with SM58 capsule (G56)

Technical specifications

Technology and transmission : Digital wireless microphone

Polar pattern : Cardioid

Frequency response : 20 - 20000 Hz

Frequency band : G56 (470-636 MHz)

Encryption : AES-256

A/D and D/A conversion : 24-bit / 48 kHz

Analog audio output dynamic range : > 120 dB(A)

Dante/AES audio output dynamic range : > 130 dB(A)

Latency : 2 ms (standard mode) and 2.9 ms (high-density mode)

Switchable RF output power : 2 mW, 10 mW or 35 mW

Dimensions L x Dia. : 256 x 51 mm

Weight (without battery) : 340 g

Weight with SB900B battery : 385 g

It is a wireless handheld transmitter paired with the renowned SM58 capsule for professional vocal applications.

It is ideal for concerts, conferences, corporate events and live performances.

It provides excellent vocal intelligibility and outstanding durability in demanding professional environments.

Yes. It is designed to operate within Shure's Axient Digital ecosystem.
