Shure | AD1 (TGQ)
Axient Digital AD1 bodypack transmitter (G56 – TGQ / TA4F)
Technical specifications
Technology : Digital wireless bodypack transmitter
Connector : TGQ (TA4F)
Frequency response : 20 - 20000 Hz
Frequency band : G56 (470-636 MHz)
Encryption : AES-256
A/D and D/A conversion : 24-bit / 48 kHz
Analog audio output dynamic range : > 120 dB(A)
Dante/AES audio output dynamic range : > 130 dB(A)
Latency : 2 ms (standard mode) and 2.9 ms (high-density mode)
Switchable RF output power : 2 mW, 10 mW or 35 mW
Gain : -12 dB to +21 dB
Dimensions W x H x D : 66 x 86 x 23 mm
Weight (without batteries) : 155 g
Weight with SB900B battery : 200 g

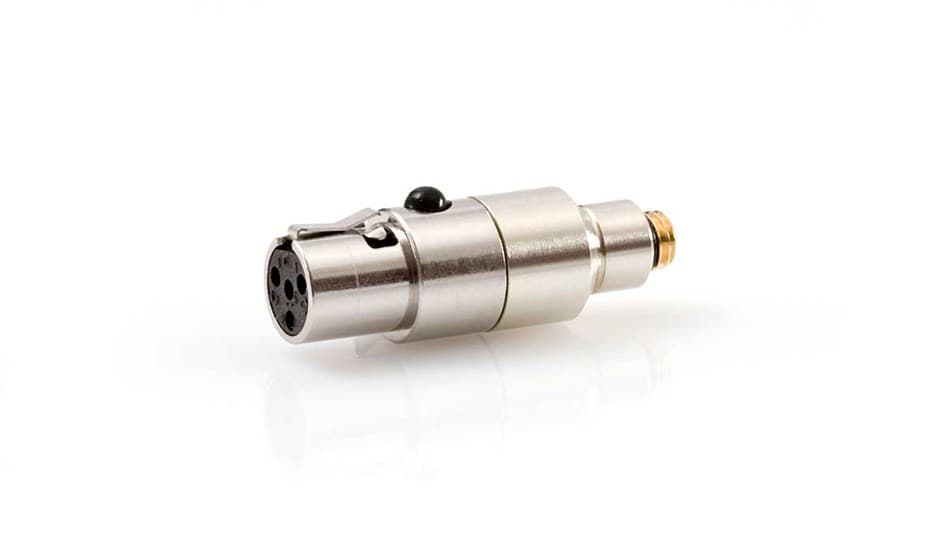

Complementary products
Frequently asked questions
The Shure AD1 is a digital wireless transmitter designed for use with headset, lavalier and instrument microphones equipped with a TA4F (TQG) connector.
Axient Digital technology provides robust RF transmission, low latency and excellent audio quality for high-density RF environments.
It is particularly well suited to conferences, live shows, audiovisual productions and events requiring a high degree of freedom of movement.
Yes. It integrates fully into the Axient Digital ecosystem, enabling system monitoring, frequency coordination and remote control.
