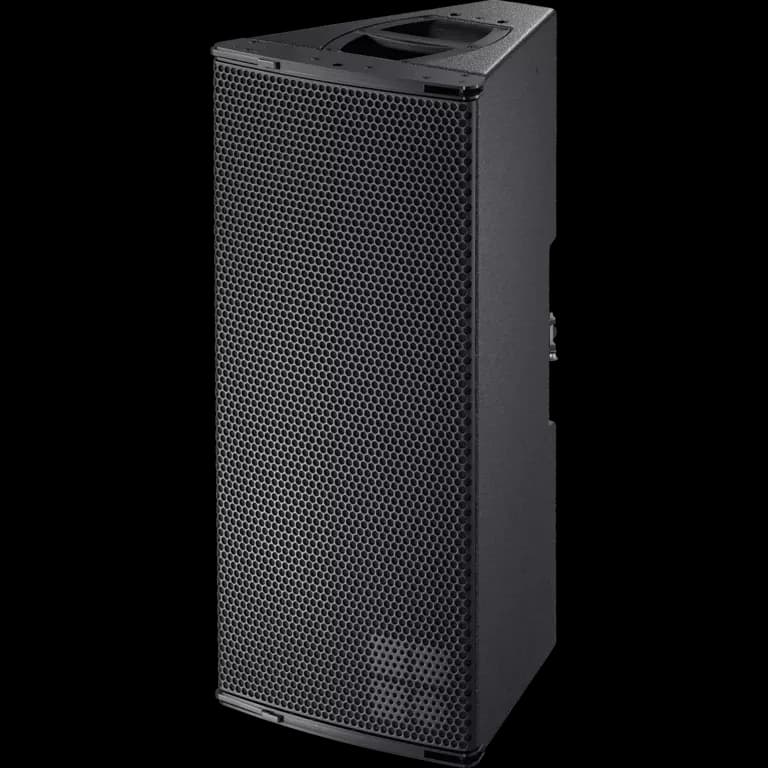

2-way medium-format loudspeaker for augmented arrays

d&b audiotechnik | AL90

2-way medium-format loudspeaker for augmented arrays

Technical specifications

Technology : Augmented array loudspeaker
Low-frequency configuration : 2x 10" low-frequency drivers
High-frequency configuration : 1x 1.4" compression driver with 3" voice coil
Passive crossover : Yes
Frequency response (-5 dB) : 60 - 18000 Hz
Maximum sound pressure level at 1 m : 139 dB
Nominal dispersion angle : 90° horizontal × 30° vertical
Nominal impedance : 8 ohms
Power handling : 400 W RMS / 1800 W peak (10 ms)

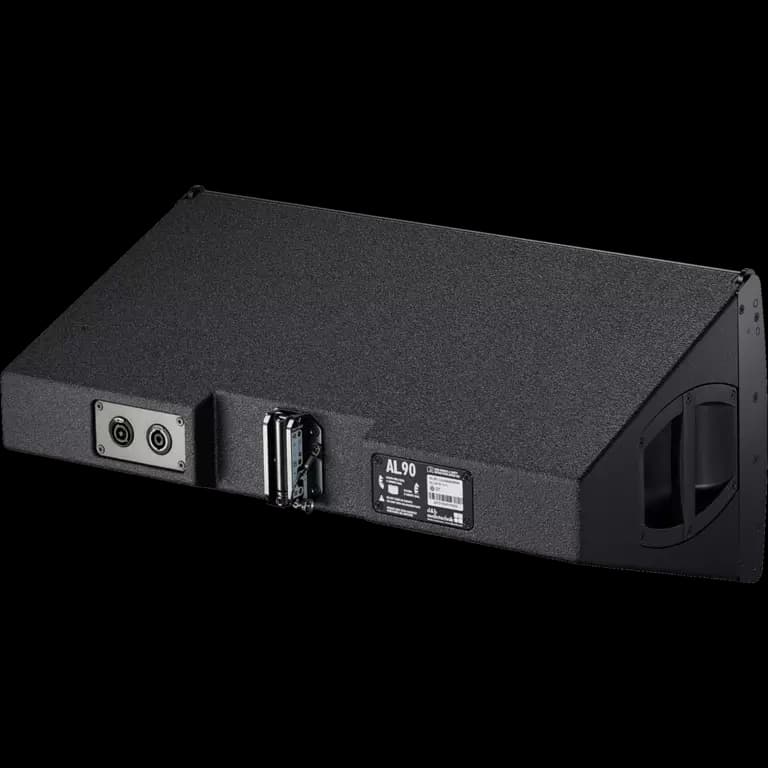

Connectors : 1 NLT4 F/M
Dimensions W x H x D : 700 x 322 x 356 mm
Net weight : 23.0 kg





Complementary products

4-channel digital power amplifier with integrated DSPHigh-performance passive subwoofer from the T SeriesCompact 18" passive subwoofer for professional Sound Reinforcement

Alternatives

High-performance passive two-way point source loudspeaker with 110° × 40° dispersionHigh-Performance 2-Way Point Source Loudspeaker - 75° × 40°Convertible 2-way loudspeaker for point source or line array applications

Frequently asked questions

The AL90 is a line array loudspeaker designed for professional sound reinforcement in concerts, events, conferences and productions requiring consistent audience coverage.

Its augmented array design provides precise control of sound dispersion, improved system throw and consistent coverage across the listening area.

Its sound quality, high intelligibility and ability to integrate into modular sound reinforcement systems make the AL90 suitable for professional productions of various scales.

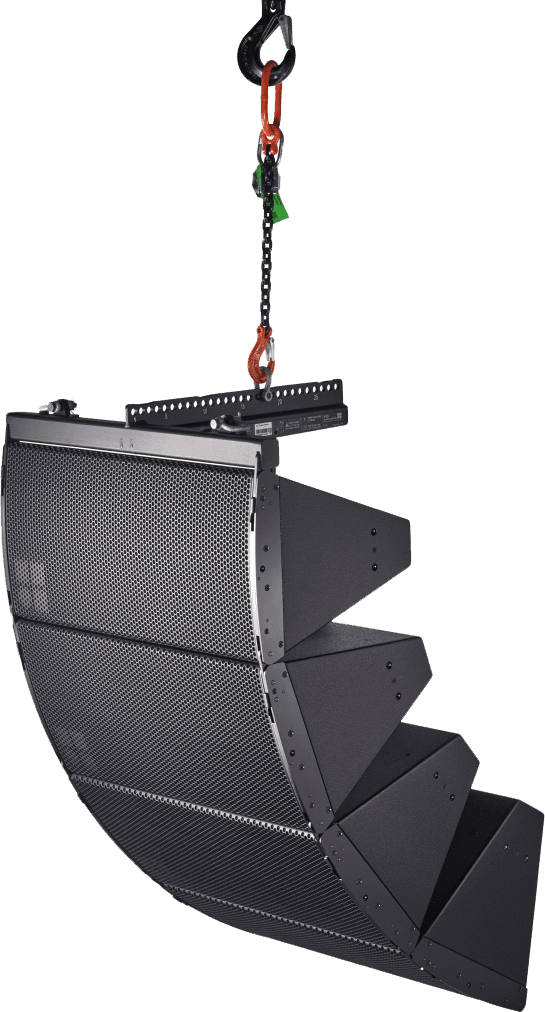

It is commonly deployed in line array configurations for concerts, festivals, corporate events and live shows. It can also be used as a standalone loudspeaker with a subwoofer for conferences and corporate events.
