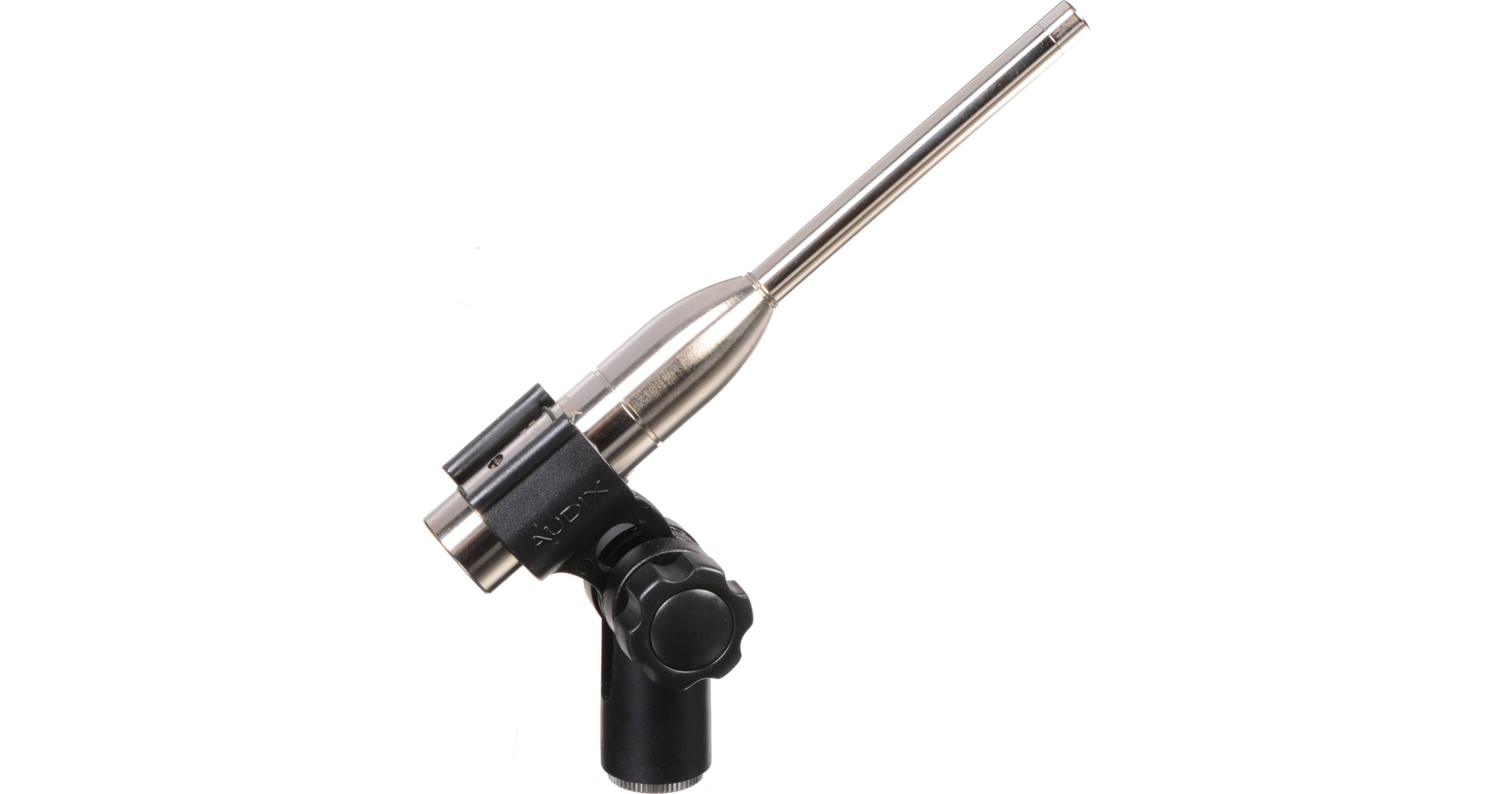

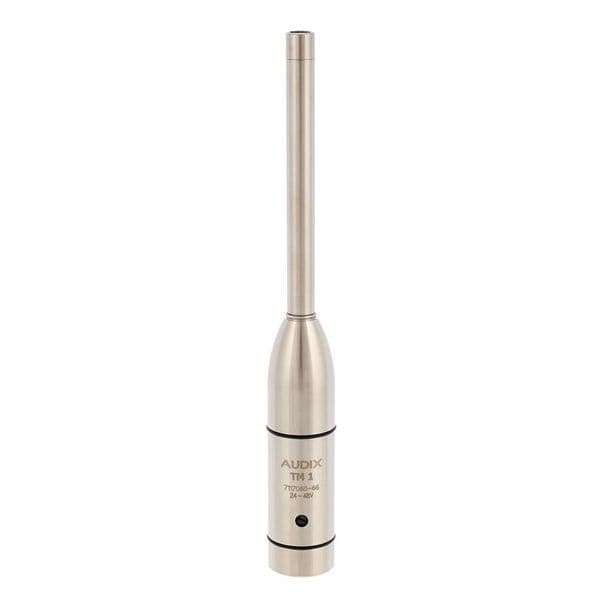

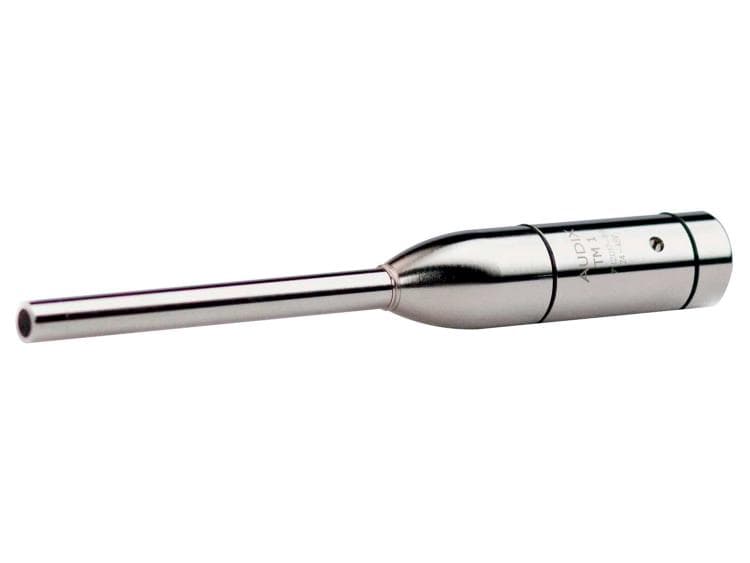

AUDIX | TM1
Omnidirectional condenser test and measurement microphone
Technical specifications
Application : Condenser test and measurement microphone
Type : 6 mm pre-polarised condenser
Polar pattern : Omnidirectional
Frequency response : 20 - 20000 Hz
Sensitivity : -44 dB/Pa (6.0 mV)
Nominal impedance : 200 ohms
Maximum SPL : 140 dB SPL
Phantom power requirement : +24 V to +48 V
Dimensions L x Dia. : 150 x 19 mm
Weight : 132 g
Complementary products
Alternatives
Frequently asked questions
The TM1 is a precision microphone designed for acoustic measurements, audio system calibration and frequency analysis.
Its linear frequency response and high accuracy make it particularly suitable for demanding measurement applications.
A calibrated measurement microphone provides reliable results when performing acoustic analysis and tuning sound reinforcement systems.
It is used by sound engineers, audiovisual integrators, acousticians and technical service providers to optimise audio system performance.
