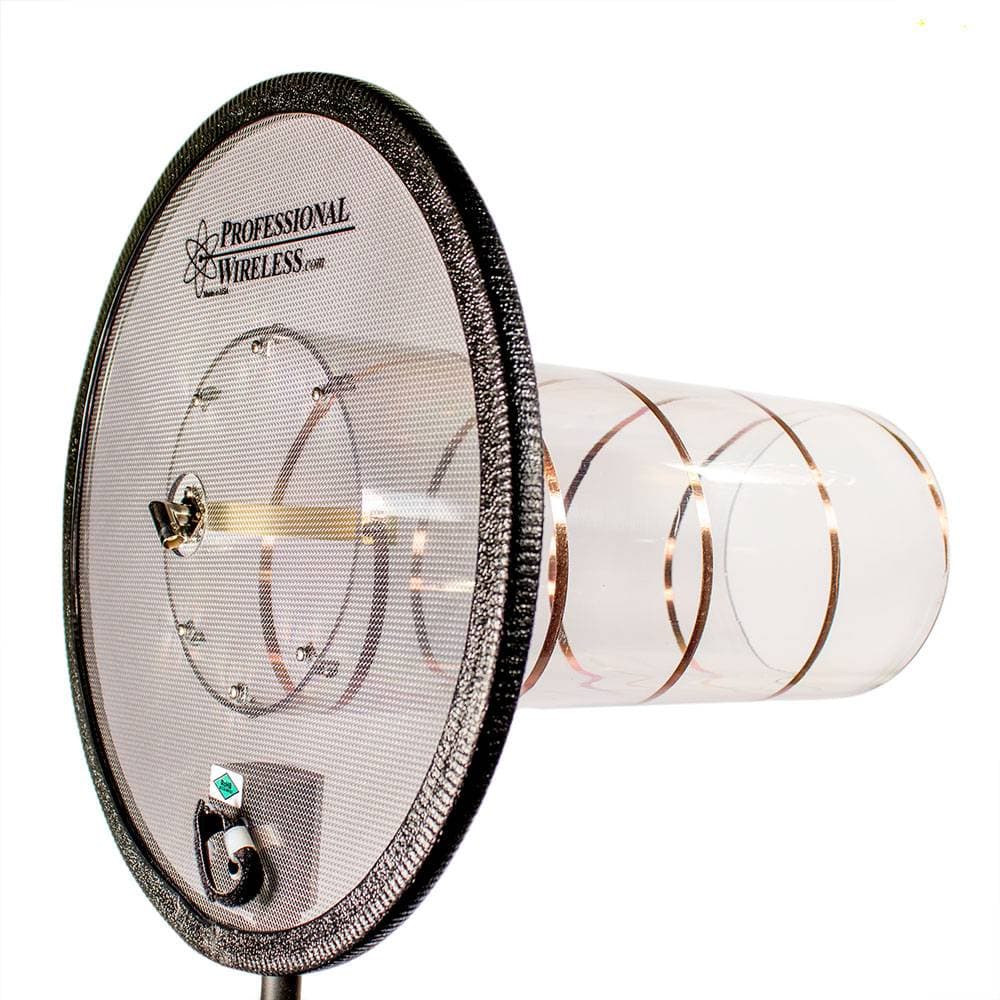

Shure | HA-8089
Wideband helical directional antenna - 460-900 MHz
Technical specifications
Technology : Wideband directional helical antenna
Application : Transmitter antenna for personal stereo wireless monitoring systems and RF receivers
RF bandwidth : 460 - 900 MHz
Horizontal directivity : 57°
Antenna gain on axis : +14 dBi
Front-to-back rejection : 30 dB
Connector : Female BNC (50 ohms)
Dimensions W x H x D : 360 x 360 x 360 mm
Net weight (without accessories) : 1.7 kg
Complementary products
Alternatives
Frequently asked questions
This directional antenna is designed to improve RF coverage for wireless monitoring systems by focusing the signal towards a specific reception area.
Its design provides high directional gain and improved transmission efficiency compared with conventional omnidirectional or directional antennas.
It helps optimise the usable range of the system while reducing interference from RF sources outside the desired coverage area.
It is particularly suitable for large stages, festivals, tours and installations requiring high RF performance.
