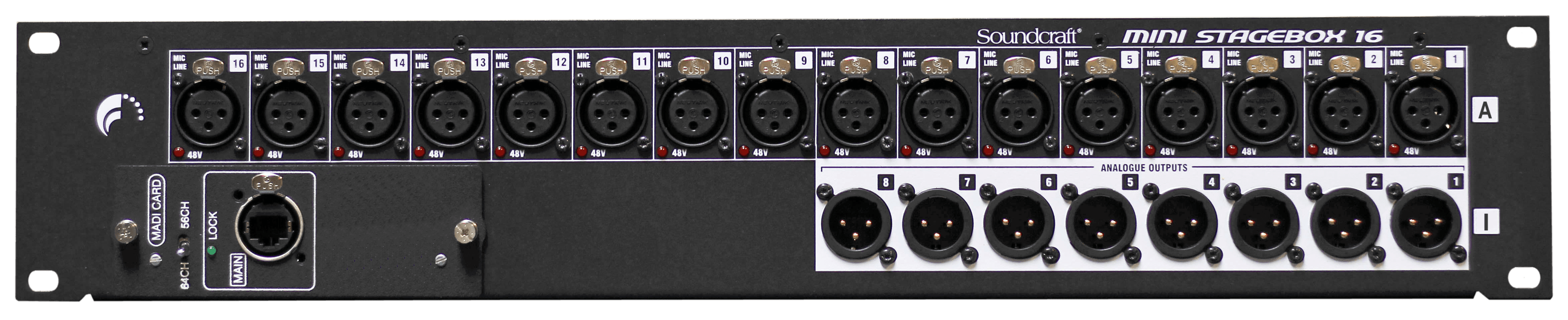

Soundcraft | MSB-16R
2U digital stagebox – 16 in / 8 out XLR
Technical specifications
Technology : Mini Stage Box
Compatibility : Si Expression, Si Compact, Si Performer, Si and Vi
Conversion : 24-bit
Sample rate : 48 kHz
Latency : 1.5 ms
Microphone preamps with phantom power LED : 16
Local inputs : 16 XLR Mic/Line
Local outputs : 8 XLR Line
Network connections : 1 MADI port on RJ45/Cat.5
Dimensions W x H x D : 483 x 88 x 277 mm
Weight : 5.9 kg
Complementary products
Frequently asked questions
The MSB-16R is a digital stagebox that remotely connects audio inputs and outputs, simplifying the connection of sources on stage.
It provides 16 microphone/line inputs and 8 analogue outputs, making it suitable for a wide range of live and event configurations.
It reduces the need for analogue multicore cables, shortens setup time and improves cable management.
The MSB-16R is designed for compatible Soundcraft consoles using the brand's digital audio transport protocols.
